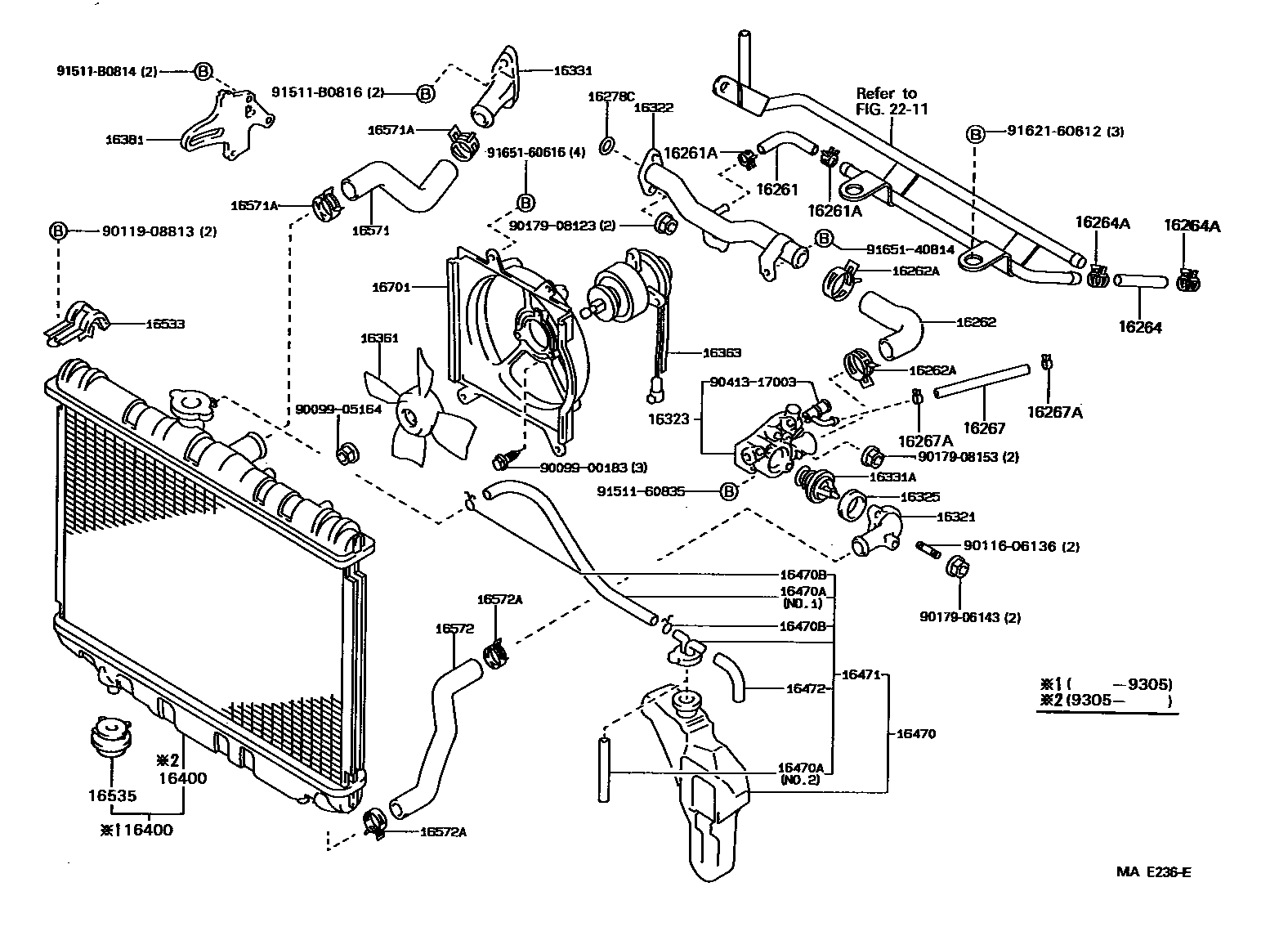

RADIATOR & WATER OUTLET

0001 1 0002 1

16261HOSE, WATER BY-PASS

main99555-10180i4AFHE..AE95199009-199106

sub99555-10200

main99555-10200i4AFHE..AE95199106-199508

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i4AFHE..AE95199009-199106

sub96135-51300

main96135-41300i4AFHE..AE95199106-199508

sub96135-51300

16262HOSE, WATER INLET

main16262-15030i4AFHE..AE95199009-199508

16262ACLIP(FOR WATER INLET HOSE)

main90467-36001i4AFHE..AE95199009-199508

16264HOSE, WATER BY-PASS, NO.2

main99555-10180i4AFHE..AE95199009-199508

sub99555-10200

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i4AFHE..AE95199009-199106

sub96135-51300

main96135-41300i4AFHE..AE95199106-199508

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main90447-15021i4AFHE..AE95199009-199508

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-13001i4AFHE..AE95199009-199106

sub96135-51300

main96135-41300i4AFHE..AE95199106-199508

sub96135-51300

16278CRING, O(FOR WATER BY-PASS PIPE NO.2)

main96711-24035i4AFHE..AE95199009-199502

sub96761-24035

main96761-24035i4AFHE..AE95199502-199508

16321INLET, WATER

main16321-15020i4AFHE..AE95199009-199508

16322PIPE, WATER INLET

main16322-15040i4AFHE..AE95199009-199106

main16322-15041i4AFHE..AE95199106-199508

16323HOUSING, WATER INLET

main16323-15080i4AFHE..AE95199009-199508

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i4AFHE..AE95199009-199301

sub16325-63011

main16325-63011i4AFHE..AE95199301-199508

16331OUTLET, WATER

main16331-15080i4AFHE..AE95199009-199508

16331ATHERMOSTAT

main90916-03046i4AFHE..AE95199009-199508

16361FAN

main16361-11020i4AFHE..AE95..5F199009-199508

main16361-63020i4AFHE..AE95..4FC199009-199508

sub16361-74070

16363MOTOR, COOLING FAN

main16363-64010i4AFHE..AE95..5F199009-199508

main16363-64030i4AFHE..AE95..4FC199009-199508

16381BAR, FAN BELT ADJUSTING

main16381-15060i4AFHE..AE95199009-199508

16400RADIATOR ASSY

main16400-16400i4AFHE..AE95..5F199009-199305

sub16400-16401

sub16535-11030

main16400-16401i4AFHE..AE95..5F199305-199508

main16400-16410i4AFHE..AE95..4FC199009-199305

sub16400-16411

sub16535-11030

main16400-16411i4AFHE..AE95..4FC199305-199508

sub16400-15610

16470TANK ASSY, RADIATOR RESERVE

main16470-15040i4AFHE..AE95199009-199508

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i4AFHE..AE95199009-199508

main90445-12117i4AFHE..AE95199009-199508

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i4AFHE..AE95199009-199508

16471CAP SUB-ASSY, RESERVE TANK

main16405-15050i4AFHE..AE95199009-199508

16472HOSE, BREATHER

main85338-74040i4AFHE..AE95199009-199508

16533SUPPORT, RADIATOR, UPPER

main16533-15090i4AFHE..AE95199009-199508

16535SUPPORT, RADIATOR, LOWER

main16535-11030i4AFHE..AE95199112-199508

main16535-15020i4AFHE..AE95199009-199112

16571HOSE, RADIATOR, INLET

main16571-15140i4AFHE..AE95199009-199508

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-34003i4AFHE..AE95199009-199508

sub90467-34004

16572HOSE, RADIATOR, OUTLET

main16572-15190i4AFHE..AE95..5F199009-199508

main16572-16100i4AFHE..AE95..4FC199009-199508

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-34003i4AFHE..AE95199009-199508

sub90467-34004

16701SHROUD SUB-ASSY, FAN

main16711-16200i4AFHE..AE95..5F199009-199508

main16711-16210i4AFHE..AE95..4FC199009-199508

2211

9009900183

main90099-00183

9009905164

main90099-05164

9011606136

main90116-06136

9011908813

main90119-08813

9017906143

main90179-06143

9017908123

main90179-08123

9017908153

main90179-08153

9041317003

main90413-17003

9151160835

main91511-60835

91511B0814

main91511-B0814

91511B0816

main91511-B0816

9162160612

main91621-60612

9165140814

main91651-40814

9165160616

main91651-60616

46 parts on this diagram · 2 diagrams in section
