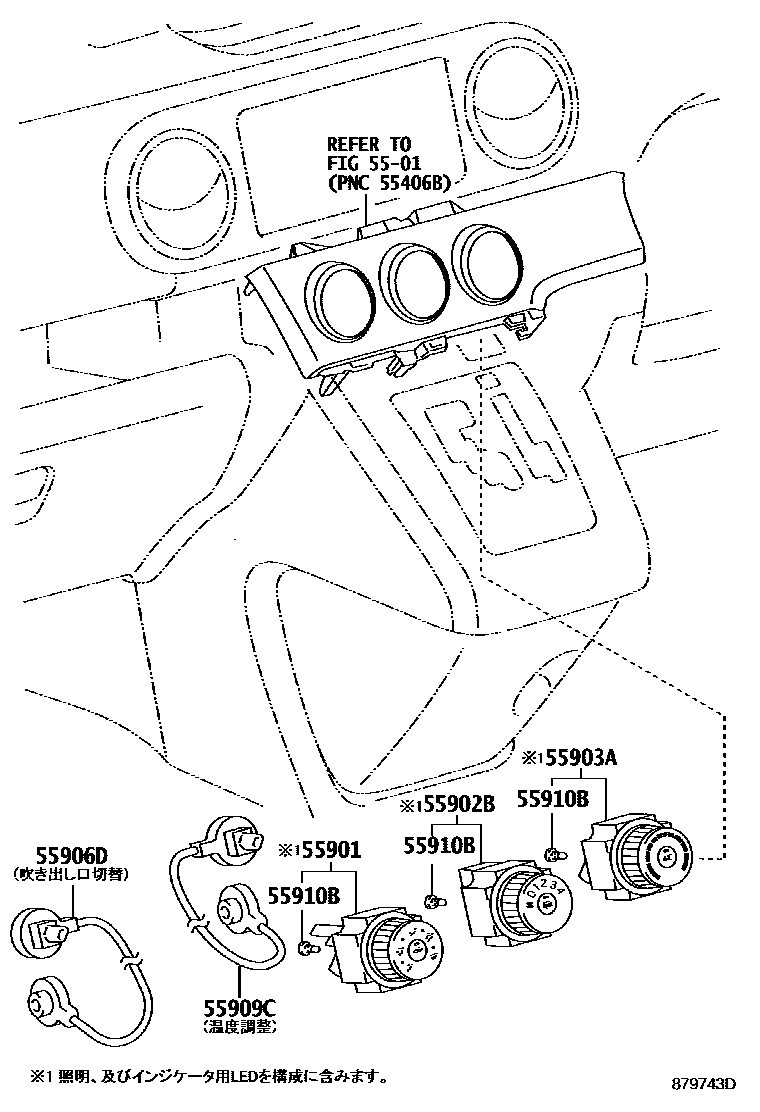

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������(�����) 0002 1���������(���) 0003 1������ 0004 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55901BASE SUB-ASSY, HEATER CONTROL

main55901-12140iNZE151..X200710-200912

55902BCONTROL SUB-ASSY, HEATER

main55902-12070supersedes 55902-12060iNZE151,ZRE154..X..CBU200912

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-12020supersedes 55903-12010iNZE151,ZRE154..X..CBU200912

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iNZE151..X200710-200912

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iNZE151..X200710-200912

55910BBULB, HEATER CONTROL

main90010-01122×3iNZE151..X200710-200912

7 parts on this diagram · 4 diagrams in section
