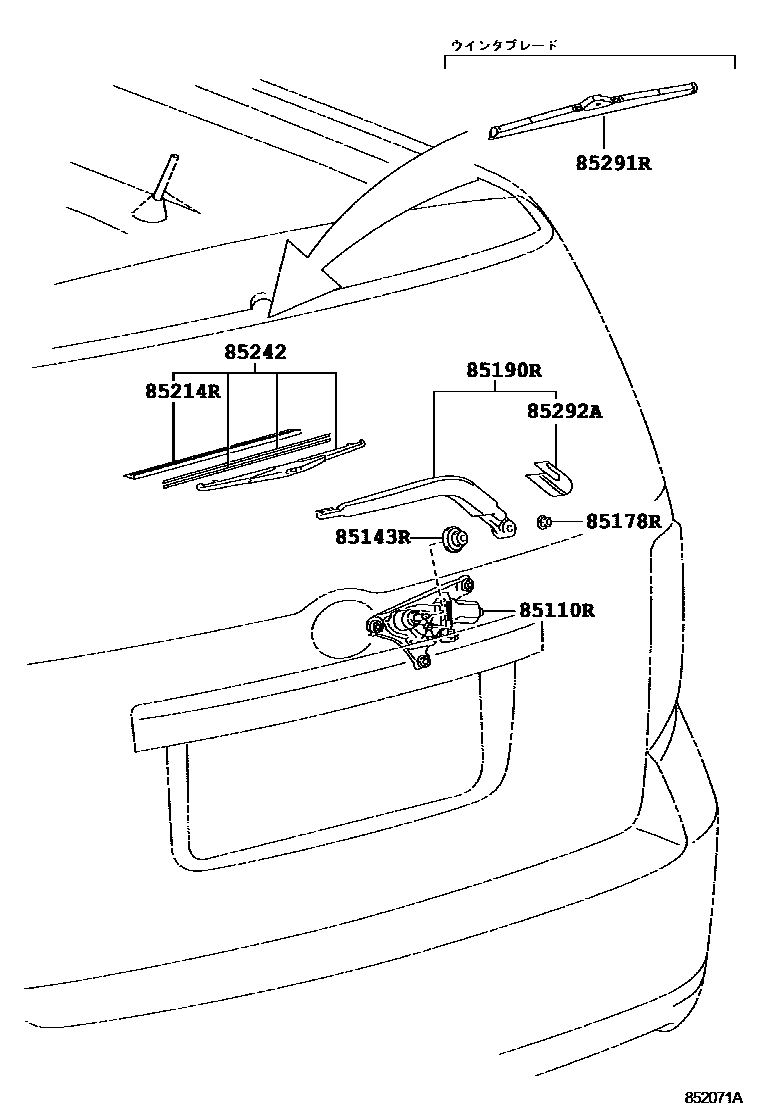

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-12A00iNZE151,ZRE15#..G,S200710-200912

main85130-12A10iNZE151..X200710-200912

85143RGROMMET, REAR WIPER MOTOR

main85143-52030iNZE151,ZRE15#200710-200912

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNZE151,ZRE15#200710-200912

85190RARM ASSY, REAR WIPER

main85241-12120iNZE151,ZRE15#200710-200912

85214RRUBBER, REAR WIPER

main85214-30280iNZE151,ZRE15#200710-200912

85242BLADE, RR WIPER

main85242-12110iNZE151,ZRE15#200710-200912

85291RBLADE,REAR WIPER, WINTER

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iNZE151,ZRE15#200710-200912

8 parts on this diagram · 1 diagram in section
