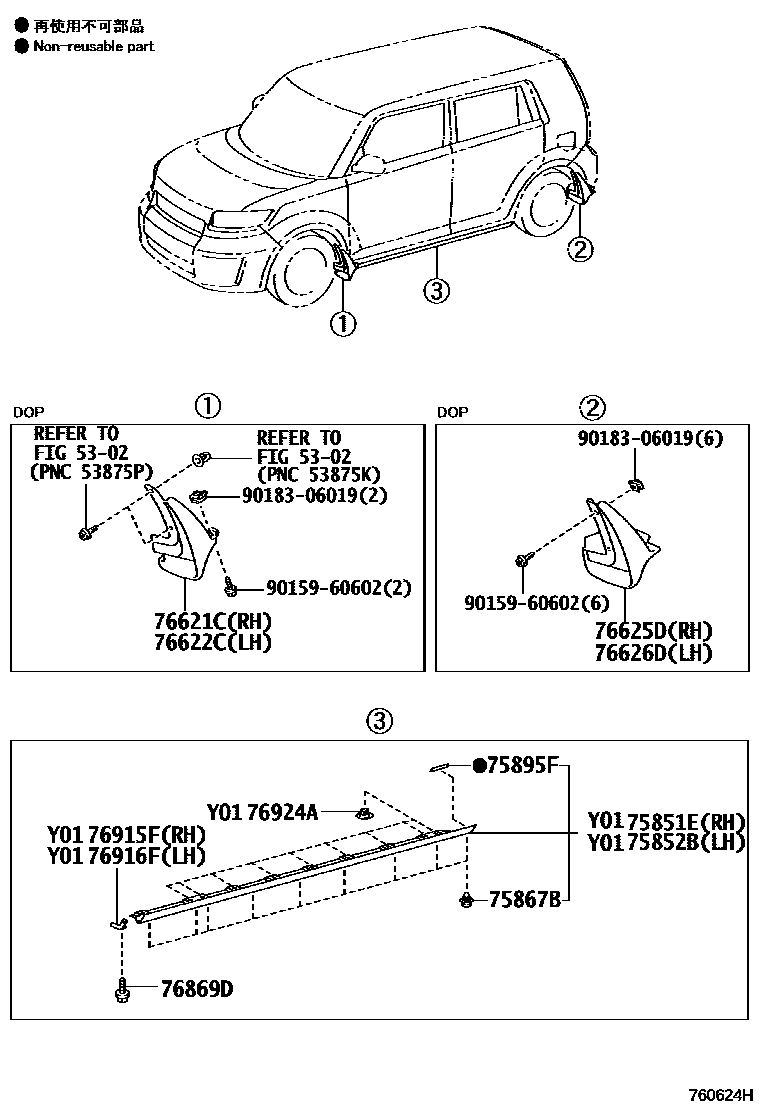

MUDGUARD & SPOILER

0001 1��(����� & �������������) 0002 1������� 0003 1��(����� & �������������)

5302

75851EMOULDING, BODY ROCKER PANEL, RH

main75851-12120-A0iNZE151,ZRE15#..G,S200710-200912

SUPER WHITE 2,040

sub75851-12130

main75851-12120-A1iNZE151,ZRE15#..(G,S)..CBU200808-201512

WHITE PEARL CS.,070

sub75851-12130

main75851-12120-B0iNZE151,ZRE15#..(G,S)..CBU200710-201512

SILVER ME.,1F7

sub75851-12130

main75851-12120-C0iNZE151,ZRE15#..(G,S)..CBU200710-201512

BLACK MC.,209

sub75851-12130

main75851-12120-D1iNZE151,ZRE15#..G,S200710-201301

GINGER RED M.M.,3R6

sub75851-12130

main75851-12120-D2iNZE151,ZRE15#..(G,S)..CBU200912-201512

BLACKISH RED MC.,3R0

sub75851-12130

main75851-12120-D3iNZE151,ZRE15#..(G,S)..CBU201301-201512

SUPER RED 5,3P0

sub75851-12130

main75851-12120-J0iNZE151,ZRE15#..(G,S)..CBU200710-201512

DK.BLUE MC.,8S6

sub75851-12130

main75851-12120-J2iNZE151,ZRE15#..G,S200710-200912

BLUE ME.,8T4

sub75851-12130

main75851-12120-J3iNZE151,ZRE15#..(G,S)..CBU200912-201512

COOL SODA ME.,8V7

sub75851-12130

main75851-12120-K0iNZE151,ZRE15#..(G,S)..CBU201003-201301

DK.VIOLET M.M.,9AF

sub75851-12130

main75851-12130iNZE151,ZRE15#..(G,S)..CBU200912-201512

main75851-12130iNZE151..X200710-200912

75852BMOULDING, BODY ROCKER PANEL, LH

main75852-12090-A0iNZE151,ZRE15#..G,S200710-200912

SUPER WHITE 2,040

sub75852-12100

main75852-12090-A1iNZE151,ZRE15#..(G,S)..CBU200808-201512

WHITE PEARL CS.,070

sub75852-12100

main75852-12090-B0iNZE151,ZRE15#..G,S200710-201512

SILVER ME.,1F7

sub75852-12100

main75852-12090-C0iNZE151,ZRE15#..(G,S)..CBU200710-201512

BLACK MC.,209

sub75852-12100

main75852-12090-D0iNZE151,ZRE15#..(G,S)..CBU200710-201301

GINGER RED M.M.,3R6

sub75852-12100

main75852-12090-D2iNZE151,ZRE15#..(G,S)..CBU200912-201512

BLACKISH RED MC.,3R0

sub75852-12100

main75852-12090-D3iNZE151,ZRE15#..(G,S)..CBU201301-201512

SUPER RED 5,3P0

sub75852-12100

main75852-12090-J0iNZE151,ZRE15#..G,S200710-201512

DK.BLUE MC.,8S6

sub75852-12100

main75852-12090-J1iNZE151,ZRE15#..G,S200710-200912

BLUE ME.,8T4

sub75852-12100

main75852-12090-J3iNZE151,ZRE15#..(G,S)..CBU200912-201512

COOL SODA ME.,8V7

sub75852-12100

main75852-12090-K0iNZE151,ZRE15#..(G,S)..CBU201003-201301

DK.VIOLET M.M.,9AF

sub75852-12100

main75852-12100iNZE151..X200710-200912

main75852-12100iNZE151,ZRE154..X..CBU200912-201512

75867BCLIP, ROCKER PANEL MOULDING

main90467-10162iNZE151,ZRE15#200710-200912

75895FTAPE, MOULDING, NO.1

main75895-12060iNZE151,ZRE15#200710-201109

sub75895-12070

main75895-12070iNZE151,ZRE15#..CBU201110

76621CMUDGUAD, FRONT FENDER, RH

76622CMUDGUARD, FRONT FENDER, LH

76625DMUDGUARD, QUARTER PANEL, REAR RH

76626DMUDGUARD, QUARTER PANEL, REAR LH

76869DSCREW, NO.2

main90159-60431iNZE151,ZRE15#200710-201512

76915FMUDGUARD, SIDE, FR RH

main76915-12120iNZE151,ZRE15#200710-200912

76916FMUDGUARD, SIDE, FR LH

main76916-12120iNZE151,ZRE15#200710-200912

76924ARETAINER, SIDE MUDGUARD, NO.2

main76924-12040iNZE151,ZRE15#200710-200912

9015960602

main90159-60602

9018306019

main90183-06019

15 parts on this diagram · 3 diagrams in section
