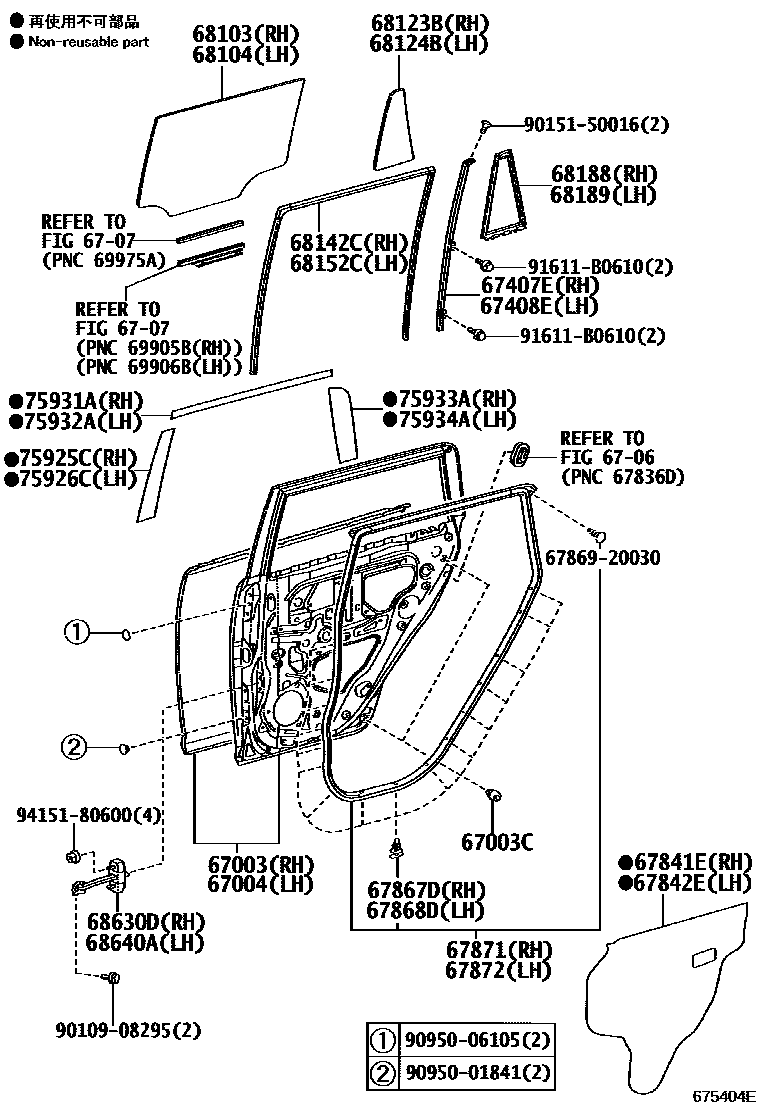

REAR DOOR PANEL & GLASS

0001 1��� ���� 0002 1��� ���

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-12A70iNZE151,ZRE15#..CBU200912-201512

67003CCUSHION, REAR DOOR PANEL

main67887-12020×4iNZE151,ZRE15#200710-200912

main90541-09137×4iNZE151,ZRE15#..CBU200912

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-12A70iNZE151,ZRE15#200710-200912

6706REAR DOOR LOCK & HANDLE

→ Go to FIG 67-06

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-12310iNZE151,ZRE15#200710-200912

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-12310iNZE151,ZRE15#200710-200912

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-12380iNZE151,ZRE15#..CBU200912

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-12190iNZE151,ZRE15#200710-200912

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×16iNZE151,ZRE15#200710-200912

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×16iNZE151,ZRE15#200710-200912

67871WEATHERSTRIP, REAR DOOR, RH

main67871-12550iNZE151,ZRE15#200710-200801

main67871-12551iNZE151,ZRE15#200802-200912

67872WEATHERSTRIP, REAR DOOR, LH

main67872-12550iNZE151,ZRE15#200710-200801

main67872-12551iNZE151,ZRE15#200802-200912

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-12800iNZE151,ZRE15#200710-200912

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-12800iNZE151,ZRE15#200710-200912

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-12830iNZE151,ZRE15#200710-200912

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-12830iNZE151,ZRE15#200710-200912

68142CRUN, REAR DOOR GLASS, RH

main68142-12310iNZE151,ZRE15#200710-200912

68152CRUN, REAR DOOR GLASS, LH

main68152-12220iNZE151,ZRE15#200710-200912

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-12350iNZE151,ZRE15#200710-200912

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-12350iNZE151,ZRE15#200710-200912

68630DCHECK ASSY, REAR DOOR, RH

main68630-12150iNZE151,ZRE15#200710-200912

main68630-12151iNZE151,ZRE15#..CBU201104

68640ACHECK ASSY, REAR DOOR, LH

main68630-12150iNZE151,ZRE15#200710-200912

main68630-12151iNZE151,ZRE15#..CBU201104

75925CTAPE, BLACK OUT, NO.3 RH

main75925-12040iNZE151,ZRE15#200710-200912

75926CTAPE, BLACK OUT, NO.3 LH

main75926-12040iNZE151,ZRE15#200710-200912

75931ATAPE, BLACK OUT, OUTER UPPER RH

main75931-12010iNZE151,ZRE15#200710-200912

75932ATAPE, BLACK OUT, OUTER UPPER LH

main75932-12010iNZE151,ZRE15#200710-200912

75933ATAPE, BLACK OUT, NO.5 RH

main75935-12010iNZE151,ZRE15#200710-200912

75934ATAPE, BLACK OUT, NO.5 LH

main75936-12010iNZE151,ZRE15#200710-200912

6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-20030

9010908295

main90109-08295

9015150016

main90151-50016

9095001841

main90950-01841

9095006105

main90950-06105

91611B0610

main91611-B0610

9415180600

main94151-80600

36 parts on this diagram · 2 diagrams in section
