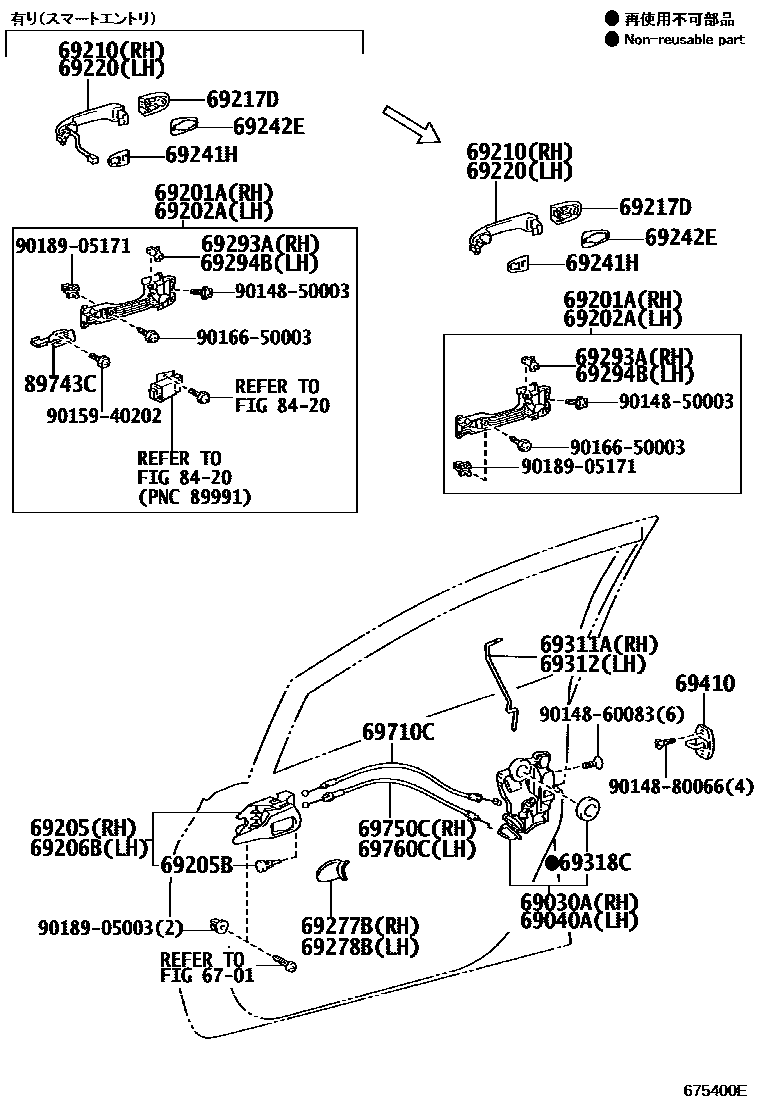

FRONT DOOR LOCK & HANDLE

6701

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iNZE151,ZRE15#..CBU200710-200912

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12550iNZE151,ZRE15#200710-200912

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-52040iNZE151,ZRE15#200710-200912

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-52020iNZE151,ZRE15#200710-200912

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12220-B4iNZE151,ZRE15#200710-200912

SILVER,TRIM1#

main69205-12220-B6iNZE151,ZRE15#..CBU200912-201512

ORNAMENT SILVER,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNZE151,ZRE15#200710-200912

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12220-B4iNZE151,ZRE15#200710-200912

SILVER,TRIM1#

main69206-12220-B6iNZE151,ZRE15#..CBU200912-201512

ORNAMENT SILVER,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69211-12220-03iNZE151,ZRE15#..CBU200912-201512

WHITE PEARL CS.,070

sub69211-12220

sub69211-52090

main69211-12220-A0iNZE151,ZRE15#200710-200912

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-C2iNZE151,ZRE15#200710-201512

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-P6iNZE151,ZRE15#200710-201512

SILVER ME.,1F7

sub69211-12220

sub69211-52090

main69211-12220-R7iNZE151,ZRE15#200710-200912

BLUE ME.,8T4

sub69211-12220

sub69211-52090

main69211-12220-R8iNZE151,ZRE15#200710-201512

DK.BLUE MC.,8S6

sub69211-12220

sub69211-52090

main69211-12220-V5iNZE151,ZRE15#..CBU200912-201512

COOL SODA ME.,8V7

sub69211-12220

sub69211-52090

main69211-12220-X0iNZE151,ZRE15#..CBU201301-201512

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X7iNZE151,ZRE15#..CBU200710-201301

GINGER RED M.M.,3R6

sub69211-12220

sub69211-52090

main69211-12220-Y2iNZE151,ZRE15#..CBU200912-201512

BLACKISH RED MC.,3R0

sub69211-12220

sub69211-52090

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-12040-A0iNZE151,ZRE15#200710-200912

sub69217-12040

main69217-12040-A9iNZE151,ZRE15#..(G,S)..CBU200912-201512

sub69217-12040

main69217-12040-A9iNZE151,ZRE15#..CBU200912-201512

sub69217-12040

main69217-12040-C2iNZE151,ZRE15#..CBU200912-201512

sub69217-12040

main69217-12040-C2iNZE151,ZRE15#200710-201512

sub69217-12040

main69217-12040-D5iNZE151,ZRE15#..(G,S)..CBU201301-201512

sub69217-12040

main69217-12040-D5iNZE151,ZRE15#..(G,S)..CBU201301-201512

sub69217-12040

main69217-12040-P1iNZE151,ZRE15#..CBU200912-201512

sub69217-12040

main69217-12040-P1iNZE151,ZRE15#200710-201512

sub69217-12040

main69217-12040-R4iNZE151,ZRE15#200710-200912

sub69217-12040

main69217-12040-R5iNZE151,ZRE15#200710-201512

sub69217-12040

main69217-12040-R5iNZE151,ZRE15#..CBU200912-201512

sub69217-12040

main69217-12040-V6iNZE151,ZRE15#..(G,S)..CBU200912-201512

sub69217-12040

main69217-12040-V6iNZE151,ZRE15#..(G,S)..CBU200912-201512

sub69217-12040

main69217-12040-X2iNZE151,ZRE15#..CBU200710-201301

sub69217-12040

main69217-12040-X2iNZE151,ZRE15#..CBU200912-201301

sub69217-12040

main69217-12040-X7iNZE151,ZRE15#..CBU200912-201512

sub69217-12040

main69217-12040-X7iNZE151,ZRE15#..CBU200912-201512

sub69217-12040

main69217-42020-04iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-04iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-A3iNZE151,ZRE15#200710-200912

sub69217-42020

sub69217-42010

main69217-42020-C2iNZE151,ZRE15#..CBU200710-201512

sub69217-42020

sub69217-42010

main69217-42020-C2iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-P6iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-P6iNZE151,ZRE15#200710-201512

sub69217-42020

sub69217-42010

main69217-42020-R8iNZE151,ZRE15#200710-200912

sub69217-42020

sub69217-42010

main69217-42020-R9iNZE151,ZRE15#..(G,S)..CBU200710-201512

sub69217-42020

sub69217-42010

main69217-42020-R9iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-V8iNZE151,ZRE15#..(G,S)..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-V8iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-X0iNZE151,ZRE15#..(G,S)..CBU201301-201512

sub69217-42020

sub69217-42010

main69217-42020-X0iNZE151,ZRE15#..CBU201301-201512

sub69217-42020

sub69217-42010

main69217-42020-X7iNZE151,ZRE15#..CBU200710-201301

sub69217-42020

sub69217-42010

main69217-42020-X7iNZE151,ZRE15#..(G,S)..CBU200912-201301

sub69217-42020

sub69217-42010

main69217-42020-Y2iNZE151,ZRE15#..(G,S)..CBU200912-201512

sub69217-42020

sub69217-42010

main69217-42020-Y2iNZE151,ZRE15#..CBU200912-201512

sub69217-42020

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-12220-03iNZE151,ZRE15#..CBU200912-201512

WHITE PEARL CS.,070

sub69211-12220

sub69211-52090

main69211-12220-A0iNZE151,ZRE15#200710-200912

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-C2iNZE151,ZRE15#200710-201512

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-P6iNZE151,ZRE15#200710-201512

SILVER ME.,1F7

sub69211-12220

sub69211-52090

main69211-12220-R7iNZE151,ZRE15#200710-200912

BLUE ME.,8T4

sub69211-12220

sub69211-52090

main69211-12220-R8iNZE151,ZRE15#..CBU200710-201512

DK.BLUE MC.,8S6

sub69211-12220

sub69211-52090

main69211-12220-V5iNZE151,ZRE15#..CBU200912-201512

COOL SODA ME.,8V7

sub69211-12220

sub69211-52090

main69211-12220-X0iNZE151,ZRE15#..CBU201301-201512

SUPER RED 5,3P0

sub69211-12220

sub69211-52090

main69211-12220-X7iNZE151,ZRE15#200710-201301

GINGER RED M.M.,3R6

sub69211-12220

sub69211-52090

main69211-12220-Y2iNZE151,ZRE15#..CBU200912-201512

BLACKISH RED MC.,3R0

sub69211-12220

sub69211-52090

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-42020iNZE151,ZRE15#200710-200912

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-52020iNZE151,ZRE15#200710-200912

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-12170-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-12170-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iNZE151,ZRE15#..CBU200710-200912

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iNZE151,ZRE15#200710-200912

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-12180iNZE151,ZRE15#200710-200912

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-12180iNZE151,ZRE15#200710-200912

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNZE151,ZRE15#200710-200912

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010iNZE151,ZRE15#200710-200912

69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL

main69710-12140iNZE151,ZRE15#200710-200912

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-12170iNZE151,ZRE15#200710-200912

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-12170iNZE151,ZRE15#..CBU200710-200912

8420

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9015940202

main90159-40202

9016650003

main90166-50003

9018905003

main90189-05003

9018905171

main90189-05171

33 parts on this diagram · 1 diagram in section
