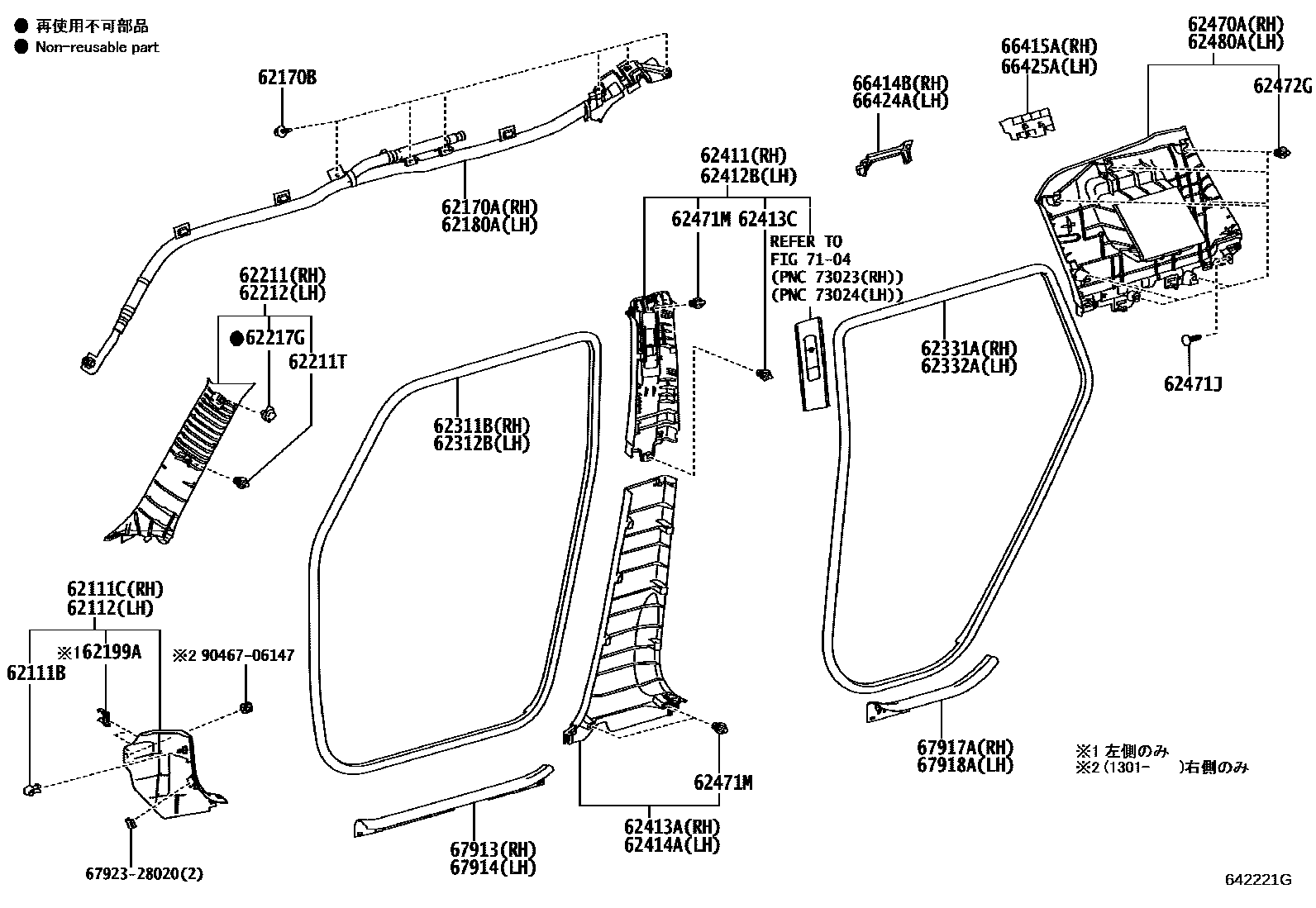

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0003 1

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10201iNZE151,ZRE15#200710-200912

62111CBOARD, COWL SIDE TRIM, RH

main62111-12330-B0iNZE151,ZRE15#200710-201301

DK.GRAY,TRIM1#

main62111-12360-B0iNZE151,ZRE15#..CBU201301-201512

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-12360-B0iNZE151,ZRE15#200710-201301

DK.GRAY,TRIM1#

sub62112-12370

sub90468-25003

main62112-12410-B0iNZE151,ZRE15#..CBU201301-201512

DK.GRAY,TRIM1#

sub62112-12420

sub90468-25003

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-12070iNZE151,ZRE15#200710-200912

62170BBOLT, W/WASHER

main90119-06869iNZE151,ZRE15#200710-200912

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-12070iNZE151,ZRE15#200710-200912

62199AHOLDER, FUSEE

main90468-25003iNZE151,ZRE15#200710-201512

62211GARNISH, FRONT PILLAR, RH

main62211-12480-B0iNZE151,ZRE15#200710-201512

LT.GRAY,TRIM1#

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10161iNZE151,ZRE15#200710-200912

62212GARNISH, FRONT PILLAR, LH

main62212-12480-B0iNZE151,ZRE15#200710-201512

LT.GRAY,TRIM1#

62217GCLIP, FRONT PILLAR GARNISH

main90950-08004iNZE151,ZRE15#200710-200912

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-12240-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-12240-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-12260-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-12260-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-12100-B1iNZE151,ZRE15#200710-201512

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-12100-B1iNZE151,ZRE15#200710-201512

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-12290-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iNZE151,ZRE15#200710-200912

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-12290-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-12190-B0iNZE151..X200710-201512

LT.GRAY,TRIM1#

main62470-12200-B1iNZE151,ZRE15#..G,S200710-201512

LT.GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-05164-B2iNZE151,ZRE15#200710-201312

DK.GRAY

sub90467-05164

main90467-05164-C0iNZE151,ZRE15#..CBU201312-201512

BLACK

sub90467-05164

62471MCLIP

main90467-10167iNZE151,ZRE15#200710-200912

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iNZE151,ZRE15#200710-200912

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-12190-B0iNZE151,ZRE154..(G,X)..CBU200710-201512

LT.GRAY,TRIM1#

main62480-12200-B0iNZE151,ZRE15#..G,S200710-200907

LT.GRAY,TRIM1#

sub62480-12201

main62480-12201-B0iZRE15#..S..CBU200907-201512

LT.GRAY,TRIM1#

66414BSPACER, SIDE RAIL, REAR RH

main66414-12070iNZE151,ZRE15#200710-200912

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-12020iNZE151..X200710-200912

66424ASPACER, SIDE RAIL, REAR LH

main66424-12070iNZE151,ZRE15#200710-200912

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-12020iNZE151..X200710-200912

67913PLATE, FRONT DOOR SCUFF, RH

main67913-12320-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-12280-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-12170-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-12160-B0iNZE151,ZRE15#200710-201512

DK.GRAY,TRIM1#

7104

6792328020CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-28020

9046706147

main90467-06147

36 parts on this diagram · 2 diagrams in section
