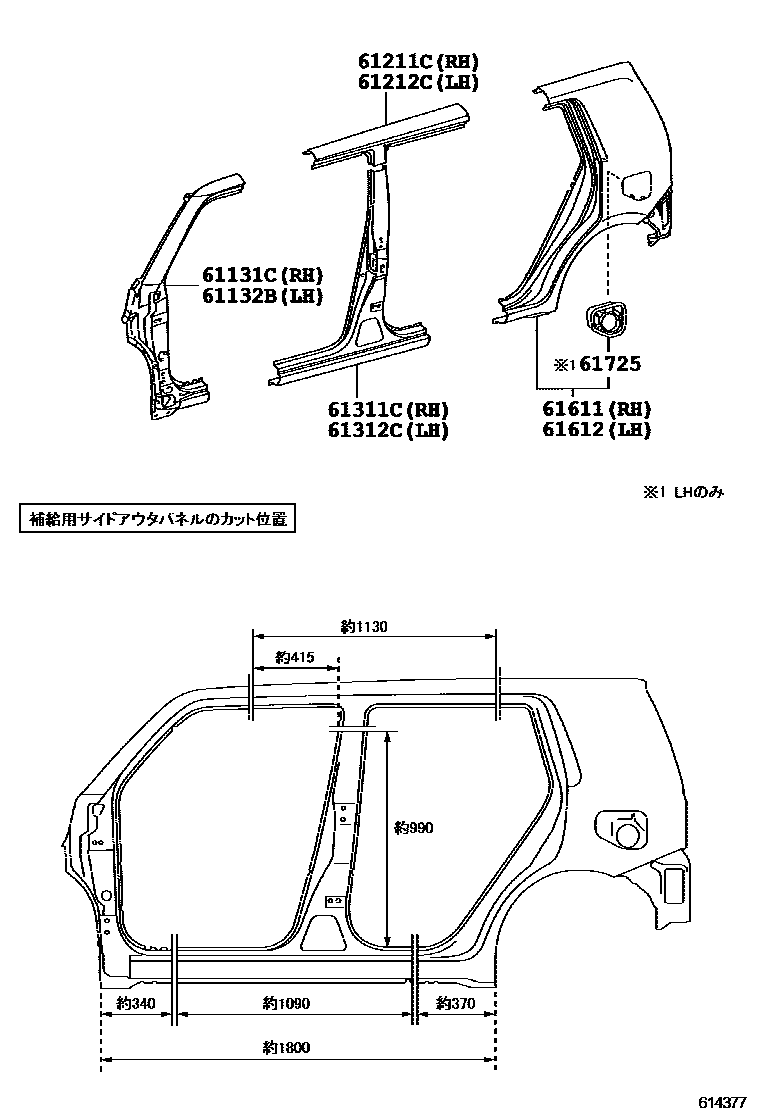

SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH 0004 1������,���

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12790supersedes 61131-12780iNZE151,ZRE15#200710-200912

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12770iNZE151,ZRE15#..(G,S)..CBU201205

61211CRAIL, ROOF SIDE, RH

main61211-12520iNZE151,ZRE15#200710-200912

61212CRAIL, ROOF SIDE, LH

main61212-12520iNZE151,ZRE15#200710-200912

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-12470iNZE151,ZRE15#..(G,S)..CBU201205

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-12510iNZE151,ZRE15#..(G,S)..CBU201106-201205

61611PANEL, QUARTER, RH

main61601-12B00supersedes 61601-12A90iNZE151,ZRE15#..CBU200912

61612PANEL, QUARTER, LH

main61602-12B00iNZE151,ZRE15#..(G,S)..CBU201106-201205

61725BOX, FUEL INLET

main61725-12340iNZE151,ZRE15#200710-200912

9 parts on this diagram · 4 diagrams in section
