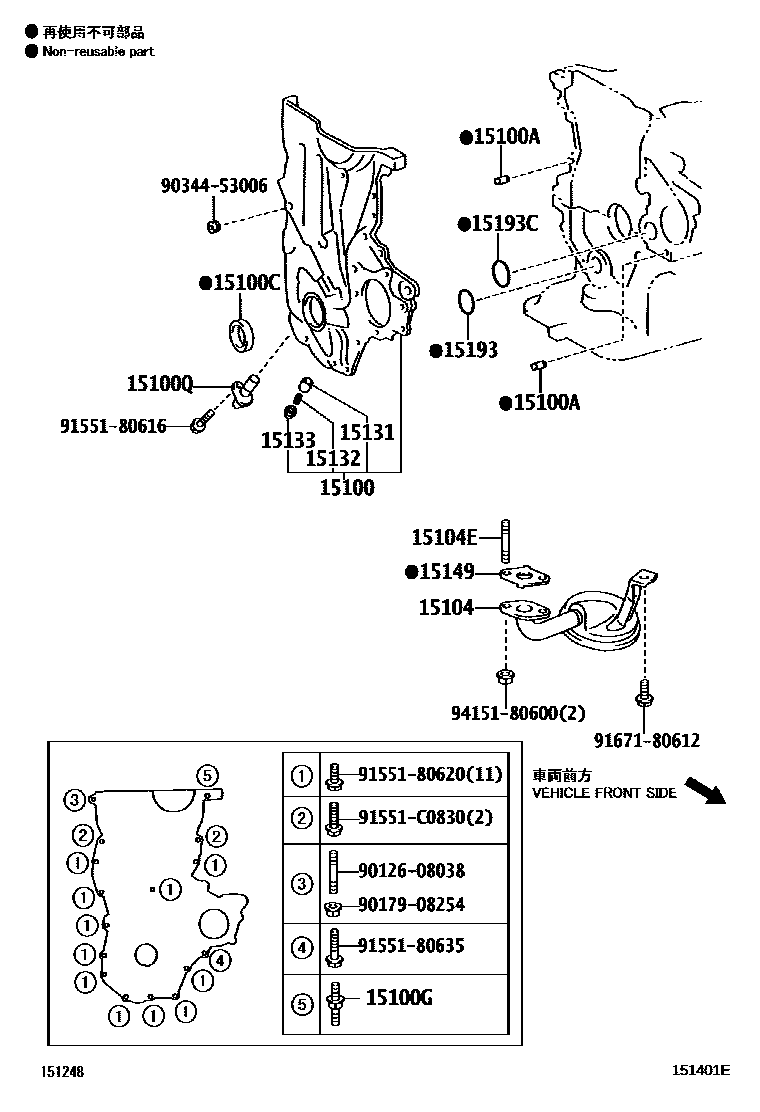

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15100PUMP ASSY, OIL

main15100-21060i1NZFE..NZE151..CBU200710-201204

main15100-21062i1NZFE..NZE151..CBU201204-201301

main15100-21080i1NZFE..NZE151..CBU201301

main15100-37020i2ZRFAE..ZRE15#..CBU200912-201309

sub15100-37021

main15100-37021i2ZRFAE..ZRE15#..CBU201309

main15100-37030i2ZRFE..ZRE15#200710-200912

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NZE151..CBU200710-200912

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NZE151200710-201204

sub90311-25032

main90311-25032i1NZFE..NZE151..CBU201204-201311

main90311-25033i1NZFE..NZE151..CBU201311

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NZE151200710-201512

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NZE151200710-201105

sub90919-05081

main90919-05081i1NZFE..NZE151..CBU201105-201305

sub90919-05087

main90919-05087i1NZFE..NZE151..CBU201305

15104STRAINER SUB-ASSY, OIL

main15104-21022i1NZFE..NZE151..CBU200710-200912

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE..NZE151200710-200912

15131VALVE, OIL PUMP RELIEF

main15131-0A040i2ZRFE..ZRE15#200710-200912

main15131-21020i1NZFE..NZE151..CBU200710-201301

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21060i1NZFE..NZE151200710-201301

main15132-46060i2ZRFE..ZRE15#200710-200912

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZFE..NZE151..CBU200710-201301

main15133-28020i2ZRFE..ZRE15#200710-200912

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NZE151200710-200912

15193GASKET, OIL PUMP

main12151-21010i1NZFE..NZE151..CBU201111

main90301-31012i1NZFE..NZE151200710-201111

sub12151-21010

15193CGASKET, OIL PUMP NO.2

main11497-21010i1NZFE..NZE151..CBU201111

main90301-42006i1NZFE..NZE151200710-201111

sub11497-21010

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

22 parts on this diagram · 4 diagrams in section
