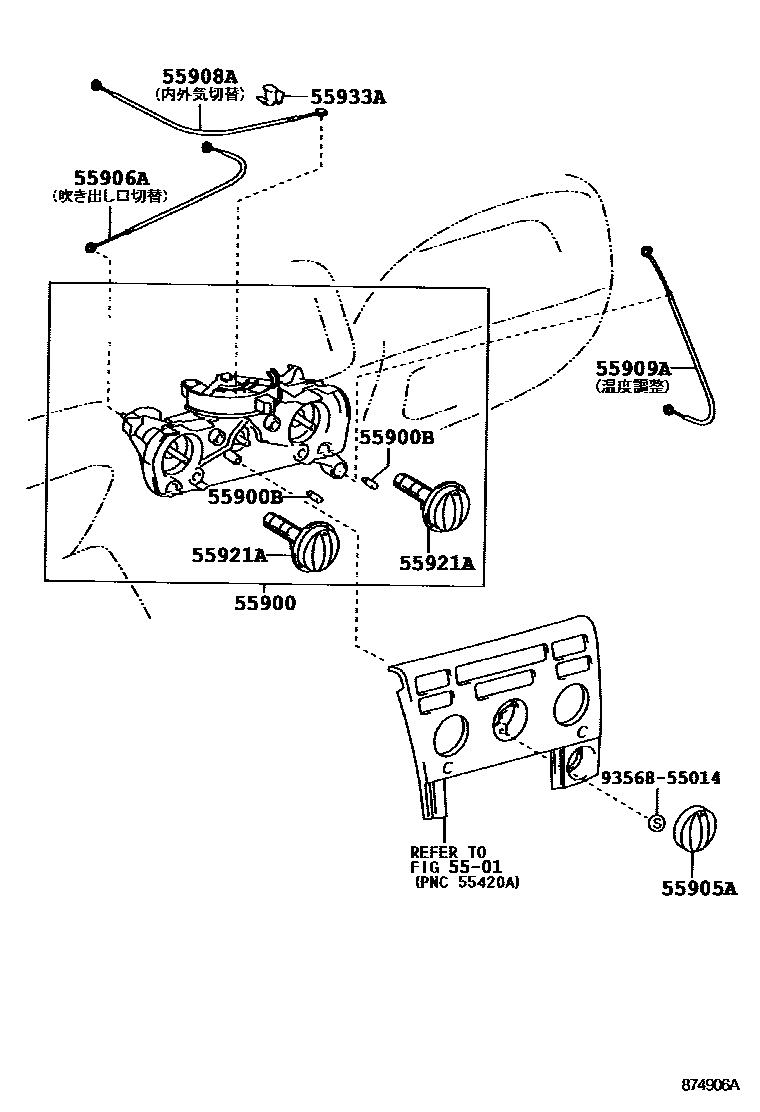

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� ����--����� ���� 0002 1����-� ����--�-� ���� 0003 1����������--����� 0004 1�� ���� 0005 1���

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900CONTROL ASSY, AIR CONDITIONER

main55900-13060-B0iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM0#,1#

55900BBULB, AIR CONDITIONER CONTROL

main90981-11040×2iNZE121,ZZE12#..V,X200105-200304

55905AKNOB, HEATER CONTROL

main55905-13040-B0iNZE121,ZZE124..07S..V200204-200304

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-13020iNZE121,ZZE12#..V,X200105-200304

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-13020iNZE121,ZZE12#..V,X200105-200304

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-13020iNZE121,ZZE12#..V,X200105-200304

55921ARETAINER, HEATER CONTROL

main55921-12120×2iNZE121,ZZE12#..V,X200105-200301

55933ACLAMP, HEATER CONTROL CABLE

main55933-52010iNZE121,ZZE12#..X200304

9356855014

main93568-55014

10 parts on this diagram · 5 diagrams in section
