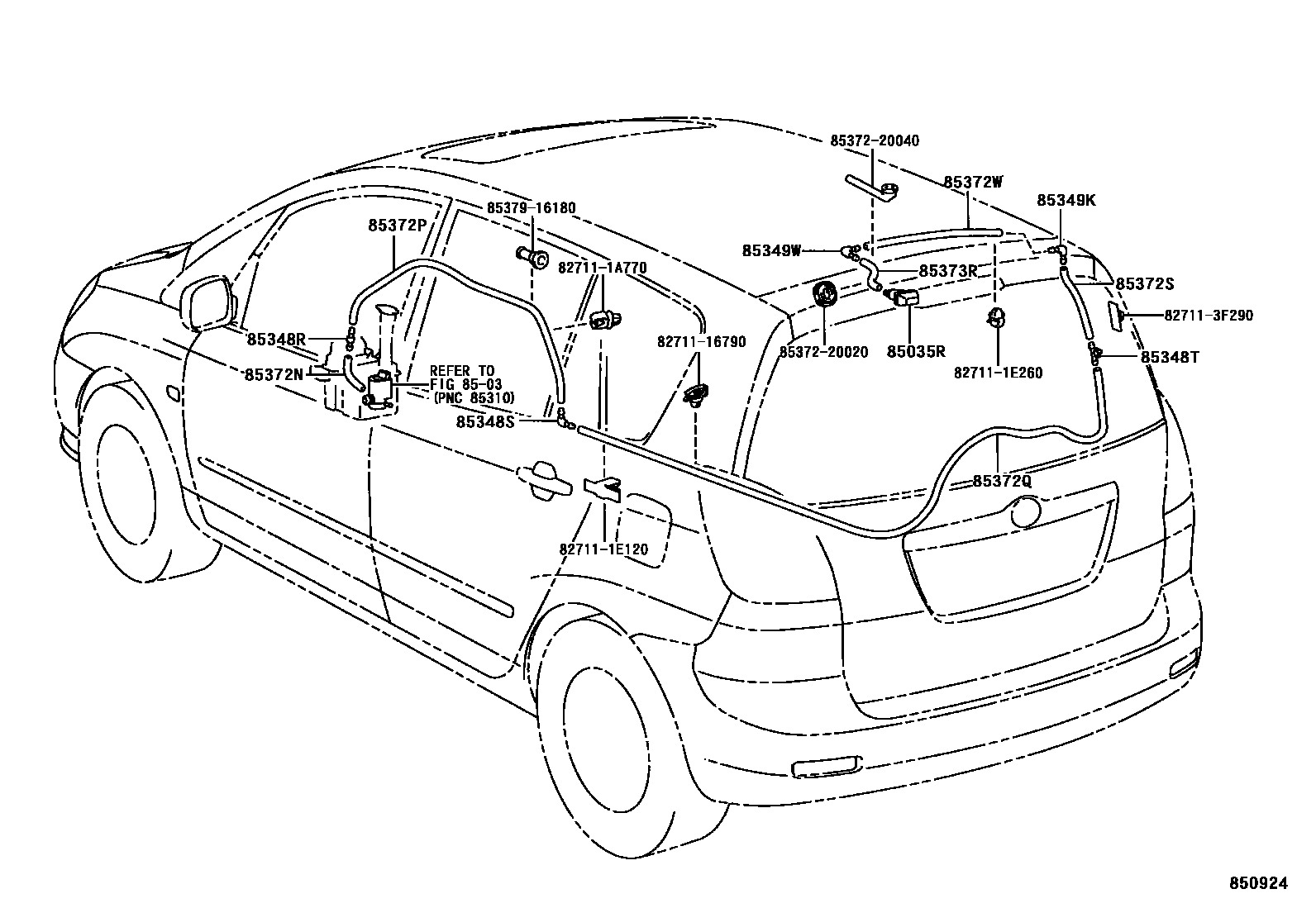

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-13030iNZE121,ZZE12#200105-200304

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-10260iNZE121,ZZE12#200105-200304

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iNZE121,ZZE12#200105-200304

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iNZE121,ZZE12#200105-200304

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iNZE121,ZZE12#200105-200304

85349WJOINT, REAR WASHER ELBOW, NO.4

main85355-20200iNZE121,ZZE12#200105-200304

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iNZE121,ZZE12#200105-200304

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNZE121,ZZE12#200105-200304

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33589iNZE121,ZZE12#200105-200304

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iNZE121,ZZE12#200105-200304

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iNZE121,ZZE12#200105-200304

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNZE121,ZZE12#200105-200304

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E120

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F290

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537916180JOINT

main85379-16180

21 parts on this diagram · 1 diagram in section
