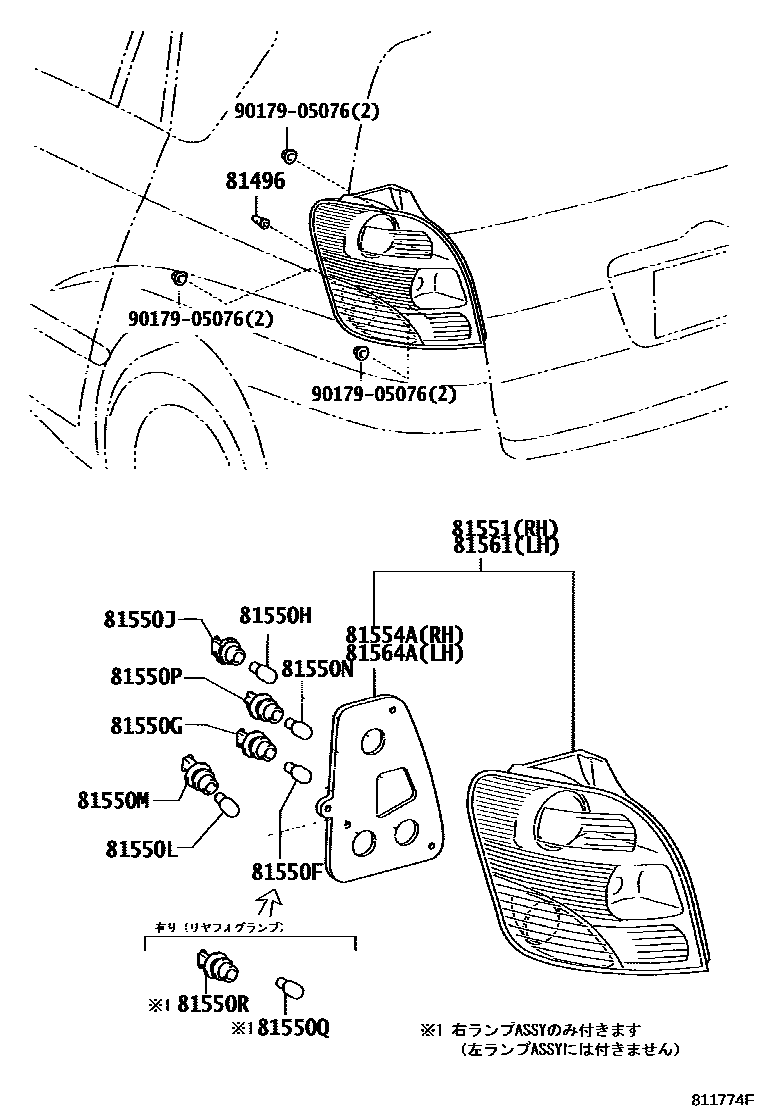

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-12020iNZE121,ZZE12#200105-200304

81550FBULB, TAILLAMP

main90981-11048iNZE121,ZZE12#200105-200304

sub90981-13044

81550GSOCKET, TAILLAMP

main81555-13510iNZE121,ZZE12#200105-200304

81550HBULB, TAIL & STOP LAMP

main90981-11048iNZE121,ZZE12#200105-200304

sub90981-13044

81550JSOCKET, TAIL & STOP LAMP

main81555-13510iNZE121,ZZE12#200105-200304

81550LBULB, REAR TURN SIGNAL LAMP

main90981-11059iNZE121,ZZE12#200304-200706

main90981-13043iNZE121,ZZE12#200106-200304

81550MSOCKET, REAR TURN SIGNAL LAMP

main81555-13520iNZE121,ZZE12#200105-200304

81550NBULB, BACK UP LAMP

main90981-11059iNZE121,ZZE12#200304-200509

main90981-11059iNZE121,ZZE12#200304-200706

main90981-13043iNZE121,ZZE12#200105-200304

81550PSOCKET, BACK UP LAMP

main81555-13530iNZE121,ZZE12#200105-200304

81550QBULB, REAR FOG LAMP, NO.1

main90981-11048iNZE121,ZZE12#200105-200304

sub90981-13044

main90981-11059iNZE121,ZZE12#200304-200509

81550RSOCKET, REAR FOG LAMP

main81555-13510iNZE121,ZZE12#200105-200304

81551LENS, REAR COMBINATION LAMP, RH

main81551-13510iNZE121,ZZE12#200105-200304

main81551-13520iNZE121,ZZE12#200105-200304

main81551-13620iNZE121,ZZE12#200509

main81551-13630iNZE121,ZZE12#200304-200509

main81551-13640iNZE121,ZZE12#200304-200509

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-13510iNZE121,ZZE12#200105-200304

81561LENS, REAR COMBINATION LAMP, LH

main81561-13510iNZE121,ZZE12#200105-200304

main81561-13520iNZE121,ZZE12#200105-200304

main81561-13590iNZE121,ZZE12#200509

main81561-13600iNZE121,ZZE12#200304-200509

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-13510iNZE121,ZZE12#200105-200304

9017905076

main90179-05076

16 parts on this diagram · 2 diagrams in section
