MUDGUARD & SPOILER

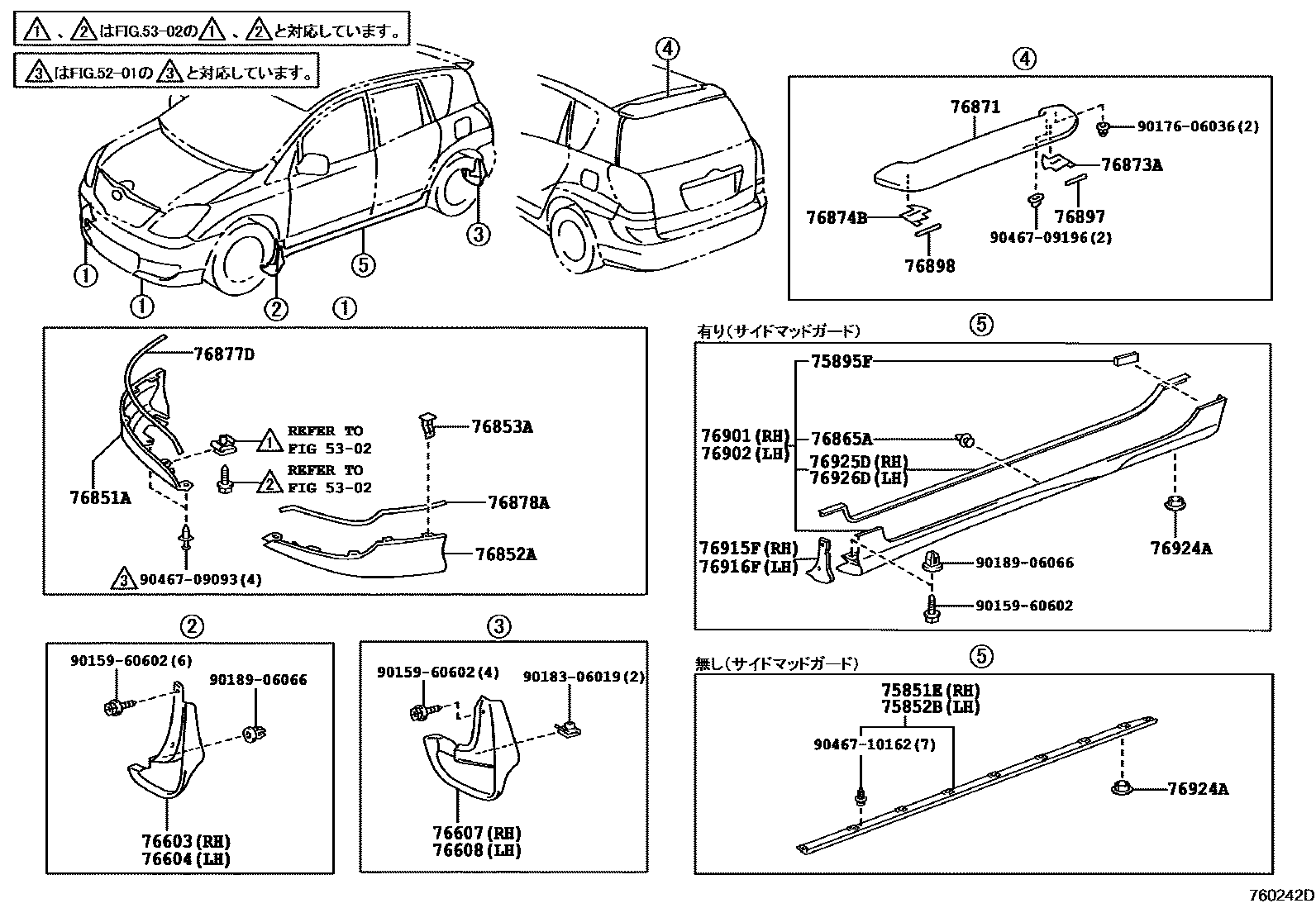

Parts diagram
5302HOOD & FRONT FENDER
→ Go to FIG 53-02
75851EMOULDING, BODY ROCKER PANEL, RH
main75851-12091i200105-200304
75852BMOULDING, BODY ROCKER PANEL, LH
main75852-12061i200105-200304
75895FTAPE, MOULDING, NO.1
main75895-13010×2i200105-200304
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
main76621-12200-A1i200105-200304
SUPER WHITE 2,040
main76621-12200-A4i200509-200706
WHITE PEARL CS.,073
main76621-12200-B1i200111-200304
main76621-12200-B2i200304-200706
SILVER ME.GR.,1D9
main76621-12200-B3i200304-200706
SILVER M.M.,1E7
main76621-12200-C0i200105-200304
BLACK ME,205
main76621-12200-C1i200304-200706
BLACK MC.,209
main76621-12200-D1i200105-200304
RED M.M.,3N8
main76621-12200-D2i200105-200304
BORDEAUX MC.,3P2
main76621-12200-D3i200304-200706
ROSE ME.OP.,3P3
main76621-12200-F0i200105-200304
GOLD ME.,585
main76621-12200-H2i200304-200706
LT.AQUA ME.OP.,761
main76621-12200-J0i200304-200706
DK.BLUE M.M.,8P4
main76621-12200-J1i200105-200304
BLUE M.M.,8Q1
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
main76622-12200-A1i200304-200706
SUPER WHITE 2,040
main76622-12200-A4i200509-200706
WHITE PEARL CS.,073
main76622-12200-B1i200206-200304
main76622-12200-B2i200105-200304
SILVER ME.GR.,1D9
main76622-12200-B3i200304-200706
SILVER M.M.,1E7
main76622-12200-C0i200304-200305
main76622-12200-C1i200304-200706
BLACK MC.,209
main76622-12200-D1i200105-200304
RED M.M.,3N8
main76622-12200-D2i200105-200304
BORDEAUX MC.,3P2
main76622-12200-D3i200304-200706
ROSE ME.OP.,3P3
main76622-12200-F0i200105-200304
GOLD ME.,585
main76622-12200-H2i200304-200706
LT.AQUA ME.OP.,761
main76622-12200-J0i200304-200706
DK.BLUE M.M.,8P4
main76622-12200-J1i200105-200304
BLUE M.M.,8Q1
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
main76625-13120-A0i200105-200304
SUPER WHITE 2,040
main76625-13120-A1i200509-200706
WHITE PEARL CS.,073
main76625-13120-B0i200304-200706
SILVER ME.GR.,1D9
main76625-13120-B1i200206-200304
main76625-13120-B2i200304-200706
SILVER M.M.,1E7
main76625-13120-C0i200304-200305
main76625-13120-C1i200304-200706
BLACK MC.,209
main76625-13120-D0i200105-200304
RED M.M.,3N8
main76625-13120-D1i200105-200304
BORDEAUX MC.,3P2
main76625-13120-D3i200304-200706
ROSE ME.OP.,3P3
main76625-13120-F0i200105-200304
GOLD ME.,585
main76625-13120-H0i200304-200706
LT.AQUA ME.OP.,761
main76625-13120-J1i200304-200706
DK.BLUE M.M.,8P4
main76625-13120-J2i200105-200304
BLUE M.M.,8Q1
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
main76626-13120-A0i200304-200706
SUPER WHITE 2,040
main76626-13120-A1i200509-200706
WHITE PEARL CS.,073
main76626-13120-B0i200105-200304
SILVER ME.GR.,1D9
main76626-13120-B1i200204-200304
main76626-13120-B2i200304-200706
SILVER M.M.,1E7
main76626-13120-C0i200111-200304
main76626-13120-C1i200304-200706
BLACK MC.,209
main76626-13120-D0i200304-200706
RED M.M.,3N8
main76626-13120-D1i200105-200304
BORDEAUX MC.,3P2
main76626-13120-D3i200304-200706
ROSE ME.OP.,3P3
main76626-13120-F0i200105-200304
GOLD ME.,585
main76626-13120-H0i200304-200706
LT.AQUA ME.OP.,761
main76626-13120-J1i200304-200706
DK.BLUE M.M.,8P4
main76626-13120-J2i200105-200304
BLUE M.M.,8Q1
76851ACOVER, FRONT SPOILER, RH
main76851-13070-A0i200105-200304
SUPER WHITE 2,040
main76851-13070-B0i200105-200304
SILVER ME.GR.,1D9
main76851-13070-B1i200304-200305
main76851-13070-C0i200111-200304
main76851-13070-D0i200105-200304
RED M.M.,3N8
main76851-13070-D1i200105-200304
BORDEAUX MC.,3P2
main76851-13070-F0i200105-200304
GOLD ME.,585
main76851-13070-J2i200105-200304
BLUE M.M.,8Q1
main76851-13110-A0i200304-200706
SUPER WHITE 2,040
main76851-13110-A1i200509-200706
WHITE PEARL CS.,073
main76851-13110-B0i200304-200706
SILVER ME.GR.,1D9
main76851-13110-B1i200304-200706
SILVER M.M.,1E7
main76851-13110-C0i200304-200706
BLACK MC.,209
main76851-13110-D0i200304-200706
RED M.M.,3N8
main76851-13110-D1i200304-200706
ROSE ME.OP.,3P3
main76851-13110-H0i200304-200706
LT.AQUA ME.OP.,761
main76851-13110-J0i200304-200706
DK.BLUE M.M.,8P4
76852ACOVER, FRONT SPOILER, LH
main76852-13050-A0i200105-200304
SUPER WHITE 2,040
main76852-13050-B0i200105-200304
SILVER ME.GR.,1D9
main76852-13050-B1i200304-200305
main76852-13050-C0i200105-200304
BLACK ME,205
main76852-13050-D0i200105-200304
RED M.M.,3N8
main76852-13050-D1i200105-200304
BORDEAUX MC.,3P2
main76852-13050-F0i200105-200304
GOLD ME.,585
main76852-13050-J2i200105-200304
BLUE M.M.,8Q1
main76852-13090-A0i200304-200706
SUPER WHITE 2,040
main76852-13090-A1i200509-200706
WHITE PEARL CS.,073
main76852-13090-B0i200304-200706
SILVER ME.GR.,1D9
main76852-13090-B1i200304-200706
SILVER M.M.,1E7
main76852-13090-C0i200304-200706
BLACK MC.,209
main76852-13090-D0i200304-200706
RED M.M.,3N8
main76852-13090-D1i200304-200706
ROSE ME.OP.,3P3
main76852-13090-H0i200304-200706
LT.AQUA ME.OP.,761
main76852-13090-J0i200304-200706
DK.BLUE M.M.,8P4
76853ARETAINER, FRONT SPOILER, UPPER NO.1
main76853-10010×8i200105-200304
76865ARETAINER, SIDE MUDGUARD
main67771-16170×18i200105-200304
main75867-33030×18i200312
76871SPOILER, REAR
main76871-13100-A0i200304-200706
SUPER WHITE 2,040
main76871-13100-A1i200509-200706
WHITE PEARL CS.,073
main76871-13100-B0i200105-200304
SILVER ME.GR.,1D9
main76871-13100-B1i200204-200304
main76871-13100-B2i200304-200706
SILVER M.M.,1E7
main76871-13100-C0i200111-200304
main76871-13100-C1i200304-200706
BLACK MC.,209
main76871-13100-D0i200304-200706
RED M.M.,3N8
main76871-13100-D1i200105-200304
BORDEAUX MC.,3P2
main76871-13100-D2i200304-200706
ROSE ME.OP.,3P3
main76871-13100-F0i200105-200304
GOLD ME.,585
main76871-13100-H0i200304-200706
LT.AQUA ME.OP.,761
main76871-13100-J1i200304-200706
DK.BLUE M.M.,8P4
main76871-13100-J2i200105-200304
BLUE M.M.,8Q1
76873APROTECTOR, REAR SPOILER, RH
main76783-13010i200105-200304
76874BPROTECTOR, REAR SPOILER, LH
main76784-13010i200105-200304
76877DPROTECTOR, FRONT SPOILER SIDE, RH
main76877-13040-B0i200105-200304
GRAY,040 ,1D9 ,585
main76877-13040-C0i200111-200304
main76877-13070-B0i200304-200706
GRAY,040 ,073 ,1D9 ,1E7 ,3P3 ,761
main76877-13070-C0i200304-200706
BLACK,209 ,3N8 ,8P4
76878APROTECTOR, FRONT SPOILER SIDE, LH
main76878-13030-B0i200304-200305
main76878-13030-C0i200111-200304
main76878-13060-B0i200304-200706
GRAY,040 ,073 ,1D9 ,1E7 ,3P3 ,761
main76878-13060-C0i200304-200706
BLACK,209 ,3N8 ,8P4
76897PROTECTOR, REAR SPOILER, SIDE RH
main76897-13040i200304
76898PROTECTOR, REAR SPOILER, SIDE LH
main76897-13040i200304
76901MUDGUARD SUB-ASSY, SIDE, RH
main76901-13040-A0i200105-200304
SUPER WHITE 2,040
main76901-13040-A1i200509-200706
WHITE PEARL CS.,073
main76901-13040-B0i200105-200304
SILVER ME.GR.,1D9
main76901-13040-B1i200304-200305
main76901-13040-B2i200304-200706
SILVER M.M.,1E7
main76901-13040-C0i200111-200304
main76901-13040-C1i200304-200706
BLACK MC.,209
main76901-13040-D0i200105-200304
RED M.M.,3N8
main76901-13040-D1i200105-200304
BORDEAUX MC.,3P2
main76901-13040-D3i200304-200706
ROSE ME.OP.,3P3
main76901-13040-F0i200105-200304
GOLD ME.,585
main76901-13040-H0i200304-200706
LT.AQUA ME.OP.,761
main76901-13040-J1i200304-200706
DK.BLUE M.M.,8P4
main76901-13040-J2i200105-200304
BLUE M.M.,8Q1
76902MUDGUARD SUB-ASSY, SIDE, LH
main76902-13040-A0i200105-200304
SUPER WHITE 2,040
main76902-13040-A1i200509-200706
WHITE PEARL CS.,073
main76902-13040-B0i200304-200706
SILVER ME.GR.,1D9
main76902-13040-B1i200304-200305
main76902-13040-B2i200304-200706
SILVER M.M.,1E7
main76902-13040-C0i200105-200304
BLACK ME,205
main76902-13040-C1i200304-200706
BLACK MC.,209
main76902-13040-D0i200105-200304
RED M.M.,3N8
main76902-13040-D1i200105-200304
BORDEAUX MC.,3P2
main76902-13040-D3i200304-200706
ROSE ME.OP.,3P3
main76902-13040-F0i200105-200304
GOLD ME.,585
main76902-13040-H0i200304-200706
LT.AQUA ME.OP.,761
main76902-13040-J1i200304-200706
DK.BLUE M.M.,8P4
main76902-13040-J2i200105-200304
BLUE M.M.,8Q1
76915FMUDGUARD, SIDE, FR RH
main76915-13020i200105-200304
76916FMUDGUARD, SIDE, FR LH
main76916-13020i200105-200304
76924ARETAINER, SIDE MUDGUARD, NO.2
main76924-52021×16i200105-200304
76925DPROTECTOR, SIDE MUDGUARD, RH
main76925-13020-B0i200105-200304
GRAY,040 ,1D9 ,585
main76925-13020-C0i200304-200305
76926DPROTECTOR, SIDE MUDGUARD, LH
main76925-13020-B0i200111-200304
main76925-13020-C0i200304-200706
BLACK,209 ,3N8 ,8P4
9015960602
main90159-60602
9017606036
main90176-06036
9018306019
main90183-06019
9018906066
main90189-06066
9046709093
main90467-09093
9046709196
main90467-09196
9046710162
main90467-10162

33 parts on this diagram · 2 diagrams in section
