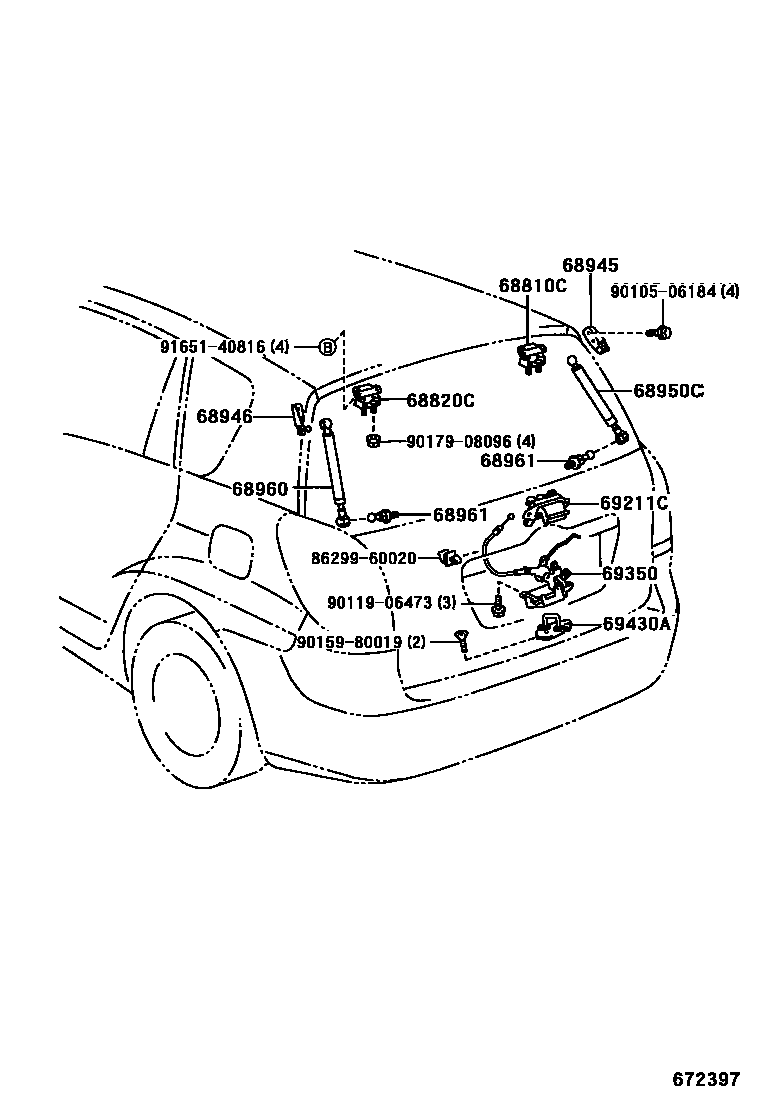

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-21050iNZE121,ZZE12#200105-200706

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iNZE121,ZZE12#200105-200706

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68946-13040iNZE121,ZZE12#200109-200706

main68946-13060iNZE121,ZZE12#200105-200109

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-13040iNZE121,ZZE12#200109-200706

main68945-13060iNZE121,ZZE12#200105-200109

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W090iNZE121,ZZE12#200105-200704

main68950-0W091iNZE121,ZZE12#200705

68960STAY ASSY, BACK DOOR, LH

main68960-0W080iNZE121,ZZE12#200105-200704

main68960-0W081iNZE121,ZZE12#200705

68961BOLT, BACK DOOR STAY

main68961-87003iNZE121,ZZE12#200105-200304

69211CHANDLE, BACK DOOR OUTSIDE

main69023-13020iNZE121,ZZE12#200105-200304

69350LOCK ASSY, BACK DOOR

main69350-13260iNZE121,ZZE12#200105-200304

main69350-13330iNZE121,ZZE12#200304

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-52020iNZE121,ZZE12#200105-200304

8629960020PAD, SPEAKER

main86299-60020

9010506184

main90105-06184

9011906473

main90119-06473

9015980019

main90159-80019

9017908096

main90179-08096

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
