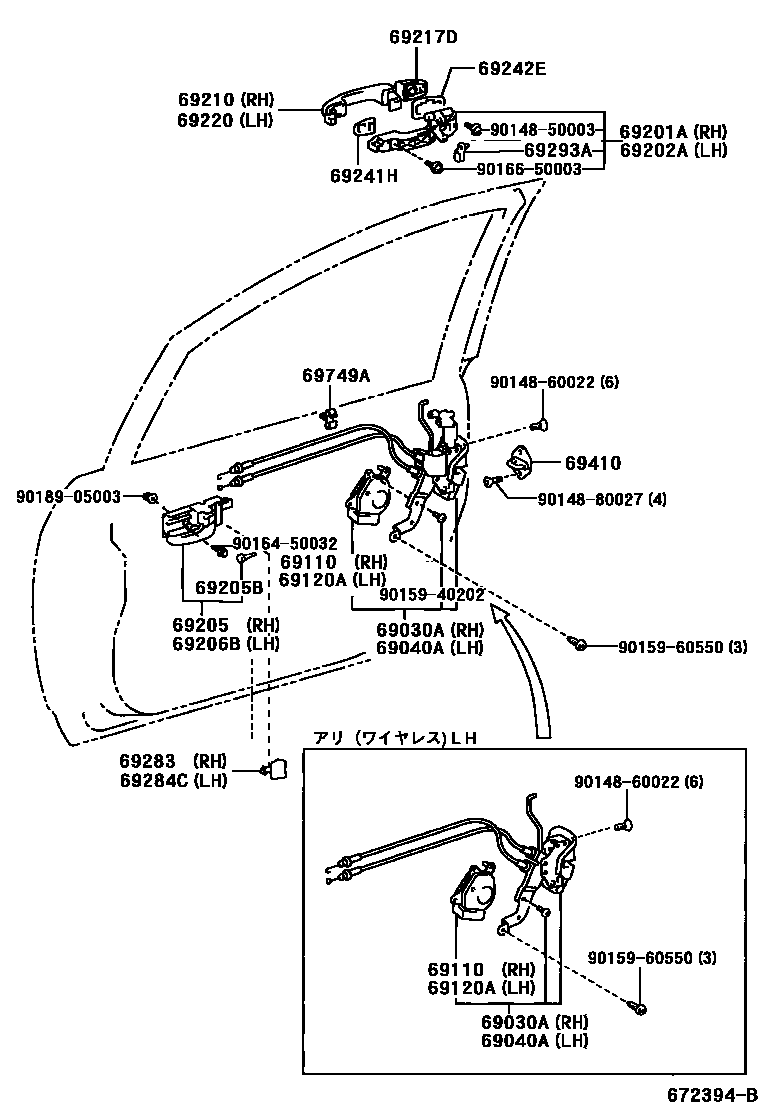

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-12440iNZE121,ZZE12#200105-200304

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-12450iNZE121,ZZE12#..V200105-200304

main69040-12520iNZE121,ZZE12#..SAER,X200105-200304

main69040-12520iNZE121,ZZE124..07S..V200204-200304

main69040-12520iNZE121,ZZE124..07S..V200206-200304

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-12070iNZE121,ZZE12#200105-200304

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-12070iNZE121,ZZE12#..V200105-200304

main69120-12090iNZE121,ZZE12#200105-200304

main69120-12090iNZE121,ZZE124..07S..V200206-200304

main69120-12090iNZE121,ZZE124..07S..V200204-200304

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-13030iNZE121,ZZE12#200304

main69201-42010iNZE121,ZZE12#200105-200209

sub69201-52010

main69201-42010iNZE121,ZZE124..07S..V200204-200304

sub69201-52010

main69201-42010iNZE121,ZZE124..07S..V200206-200304

sub69201-52010

main69201-52010iNZE121,ZZE12#200209-200304

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-42010iNZE121,ZZE124..07S..V200204-200304

sub69202-52010

main69202-42010iNZE121,ZZE124..07S..V200206-200304

sub69202-52010

main69202-42010iNZE121,ZZE12#200105-200209

sub69202-52010

main69202-52010iNZE121,ZZE12#200209-200304

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-12190-A0iNZE121,ZZE124..07S..V200204-200304

sub69205-12190

main69205-12190-A0iNZE121,ZZE12#..X200105-200706

*CR,IVORY,TRIM0#

sub69205-12190

main69205-12190-A0iNZE121,ZZE124..07S..V200206-200304

sub69205-12190

main69205-12190-B1iZZE12#..SAER200304-200706

*CR,DK.GRAY,TRIM1#

sub69205-12190

main69205-12190-B1iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

sub69205-12190

main69205-12190-B1iNZE121,ZZE124..07S..X200111-200305

sub69205-12190

main69205-12190-B1iNZE121,ZZE124..07S..V200204-200304

sub69205-12190

main69205-12190-B1iNZE121,ZZE124..07S..V200206-200304

sub69205-12190

main69205-12200-A0iNZE121,ZZE12#..X200105-200706

IVORY,TRIM0#

sub69205-12200

main69205-12200-B1iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

sub69205-12200

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNZE121,ZZE12#200105-200304

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-12190-A0iNZE121,ZZE12#..X200105-200706

*CR,IVORY,TRIM0#

sub69206-12190

main69206-12190-A0iNZE121,ZZE124..07S..V200206-200304

sub69206-12190

main69206-12190-A0iNZE121,ZZE124..07S..V200204-200304

sub69206-12190

main69206-12190-B1iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

sub69206-12190

main69206-12190-B1iNZE121,ZZE124..07S..X200111-200305

sub69206-12190

main69206-12190-B1iNZE121,ZZE124..07S..V200204-200304

sub69206-12190

main69206-12190-B1iNZE121,ZZE124..07S..V200206-200304

sub69206-12190

main69206-12190-B1iZZE12#..SAER200304-200706

*CR,DK.GRAY,TRIM1#

sub69206-12190

main69206-12200-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

sub69206-12200

main69206-12200-B1iNZE121,ZZE12#..X200304-200706

DK.GRAY,TRIM1#

sub69206-12200

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12320-A0iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-12320-A1iNZE121,ZZE12#200509-200706

sub69210-12320

main69210-12320-B0iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-12320-B1iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-12320-C0iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-12320-D3iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-12320-D4iNZE121,ZZE12#200404-200509

sub69210-12320

main69210-12320-H0iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-12320-J1iNZE121,ZZE12#200404-200706

sub69210-12320

main69210-47030-A0iNZE121,ZZE12#200304-200403

main69210-47030-B1iNZE121,ZZE12#200304-200403

main69210-47030-B2iNZE121,ZZE12#200304-200403

main69210-47030-C1iNZE121,ZZE12#200304-200403

main69210-47030-D0iNZE121,ZZE12#200304-200403

main69210-47030-D1iNZE121,ZZE12#200304-200403

main69210-47030-H0iNZE121,ZZE12#200304-200403

main69210-47030-J1iNZE121,ZZE12#200304-200403

main69211-12220-02iNZE121,ZZE12#..X200509-200706

WHITE PEARL CS.,073

sub69211-12220

sub69211-52090

main69211-12220-A0iNZE121,ZZE12#200105-200706

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-A5iNZE121200309-200403

sub69211-12220

sub69211-52090

main69211-12220-B0iNZE121,ZZE124..X200111-200305

sub69211-12220

sub69211-52090

main69211-12220-B0iNZE121,ZZE124..07S..V200206-200304

sub69211-12220

sub69211-52090

main69211-12220-B0iNZE121,ZZE124..07S..V200204-200304

sub69211-12220

sub69211-52090

main69211-12220-B1iNZE121,ZZE12#200105-200706

SILVER ME.GR.,1D9

sub69211-12220

sub69211-52090

main69211-12220-C0iNZE121,ZZE124..X200111-200305

sub69211-12220

sub69211-52090

main69211-12220-C0iNZE121,ZZE12#200105-200304

BLACK ME,205

sub69211-12220

sub69211-52090

main69211-12220-C2iNZE121,ZZE12#..X200304-200706

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-D1iNZE121,ZZE12#..X200105-200706

RED M.M.,3N8

sub69211-12220

sub69211-52090

main69211-12220-D2iNZE121,ZZE12#200105-200304

BORDEAUX MC.,3P2

sub69211-12220

sub69211-52090

main69211-12220-F1iNZE121,ZZE12#200105-200304

GOLD ME.,585

sub69211-12220

sub69211-52090

main69211-12220-H3iNZE121,ZZE12#..X200304-200706

LT.AQUA ME.OP.,761

sub69211-12220

sub69211-52090

main69211-12220-J0iNZE121,ZZE12#..X200304-200706

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-J2iNZE121,ZZE12#200105-200304

BLUE M.M.,8Q1

sub69211-12220

sub69211-52090

main69211-12220-P0iNZE121,ZZE12#..X200304-200706

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-X1iNZE121,ZZE12#..X200304-200706

ROSE ME.OP.,3P3

sub69211-12220

sub69211-52090

main69211-42010iNZE121,ZZE12#..V200105-200304

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-12040-A0iNZE121,ZZE124..X200105-200706

sub69217-12040

main69217-12040-A0iNZE121,ZZE12#..SAER,X200105-200304

sub69217-12040

main69217-12040-A0iNZE121,ZZE124..X200304-200706

sub69217-12040

main69217-12040-A4iNZE121200309-200403

sub69217-12040

main69217-12040-A7iNZE121,ZZE12#200509-200706

sub69217-12040

main69217-12040-B0iNZE121,ZZE124..X200304-200706

sub69217-12040

main69217-12040-B0iNZE121,ZZE124..X200105-200706

sub69217-12040

main69217-12040-B0iNZE121,ZZE12#..SAER,X200105-200304

sub69217-12040

main69217-12040-B1iNZE121,ZZE124..X200111-200305

sub69217-12040

main69217-12040-B1iNZE121,ZZE124..07S..V200206-200304

sub69217-12040

main69217-12040-B1iNZE121,ZZE124..07S..V200204-200304

sub69217-12040

main69217-12040-B4iNZE121,ZZE12#200304-200706

sub69217-12040

main69217-12040-C0iNZE121,ZZE124..07S..X200111-200305

sub69217-12040

main69217-12040-C0iNZE121,ZZE12#..SAER,X200105-200304

sub69217-12040

main69217-12040-C2iNZE121,ZZE12#200304-200706

sub69217-12040

main69217-12040-D2iZZE122;ZZE124..SAER200105-200706

sub69217-12040

main69217-12040-D2iNZE121,ZZE124..X200304-200706

sub69217-12040

main69217-12040-D3iNZE121,ZZE12#..SAER,X200105-200304

sub69217-12040

main69217-12040-D6iNZE121,ZZE12#200304-200706

sub69217-12040

main69217-12040-F0iNZE121,ZZE12#..SAER,X200105-200304

sub69217-12040

main69217-12040-H2iNZE121,ZZE12#200304-200706

sub69217-12040

main69217-12040-J0iNZE121,ZZE12#200304-200706

sub69217-12040

main69217-12040-J2iNZE121,ZZE12#..V200105-200304

sub69217-12040

main69217-12040-J2iNZE121,ZZE12#..SAER,X200105-200304

sub69217-12040

main69217-42010iNZE121,ZZE12#..V200105-200304

main69217-42020-03iNZE121,ZZE12#200509-200706

sub69217-42020

sub69217-42010

main69217-42020-A3iNZE121,ZZE12#..SAER,X200105-200304

sub69217-42020

sub69217-42010

main69217-42020-A3iNZE121,ZZE12#..SAER,X200105-200706

sub69217-42020

sub69217-42010

main69217-42020-A3iNZE121,ZZE12#..V200105-200304

SUPER WHITE 2,040

sub69217-42020

sub69217-42010

main69217-42020-A8iNZE121200309-200403

sub69217-42020

sub69217-42010

main69217-42020-B1iNZE121,ZZE12#..V200105-200304

sub69217-42020

sub69217-42010

main69217-42020-B1iNZE121,ZZE12#..SAER,X200105-200706

sub69217-42020

sub69217-42010

main69217-42020-B1iNZE121,ZZE12#..SAER,X200105-200304

SILVER ME.GR.,1D9

sub69217-42020

sub69217-42010

main69217-42020-B2iNZE121,ZZE124..X200111-200305

sub69217-42020

sub69217-42010

main69217-42020-B2iNZE121,ZZE124..07S..V200206-200304

sub69217-42020

sub69217-42010

main69217-42020-B2iNZE121,ZZE124..07S..V200204-200304

sub69217-42020

sub69217-42010

main69217-42020-C1iNZE121,ZZE124..07S..X200111-200305

sub69217-42020

sub69217-42010

main69217-42020-C1iNZE121,ZZE12#..SAER,X200105-200304

BLACK ME,205

sub69217-42020

sub69217-42010

main69217-42020-C1iNZE121,ZZE12#..V200105-200304

sub69217-42020

sub69217-42010

main69217-42020-C2iNZE121,ZZE12#200304-200706

sub69217-42020

sub69217-42010

main69217-42020-D2iNZE121,ZZE12#200105-200706

sub69217-42020

sub69217-42010

main69217-42020-D2iNZE121,ZZE12#..SAER,X200105-200304

RED M.M.,3N8

sub69217-42020

sub69217-42010

main69217-42020-D5iNZE121,ZZE12#..V200105-200304

sub69217-42020

sub69217-42010

main69217-42020-D5iNZE121,ZZE12#..V200105-200304

BORDEAUX MC.,3P2

sub69217-42020

sub69217-42010

main69217-42020-F1iNZE121,ZZE12#..V200105-200304

GOLD ME.,585

sub69217-42020

sub69217-42010

main69217-42020-F1iNZE121,ZZE12#..V200105-200304

sub69217-42020

sub69217-42010

main69217-42020-H3iNZE121,ZZE12#200304-200706

sub69217-42020

sub69217-42010

main69217-42020-J2iNZE121,ZZE12#200304-200706

sub69217-42020

sub69217-42010

main69217-42020-J6iNZE121,ZZE12#..SAER,X200105-200304

sub69217-42020

sub69217-42010

main69217-42020-J6iNZE121,ZZE12#..SAER,X200105-200304

BLUE M.M.,8Q1

sub69217-42020

sub69217-42010

main69217-42020-J6iNZE121,ZZE12#..V200105-200304

sub69217-42020

sub69217-42010

main69217-42020-P0iNZE121,ZZE12#200304-200706

sub69217-42020

sub69217-42010

main69217-42020-X1iNZE121,ZZE12#200304-200706

sub69217-42020

sub69217-42010

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69211-12220-02iNZE121,ZZE12#200509-200706

WHITE PEARL CS.,073

sub69211-12220

sub69211-52090

main69211-12220-A0iNZE121,ZZE12#200105-200706

SUPER WHITE 2,040

sub69211-12220

sub69211-52090

main69211-12220-A5iNZE121200309-200403

sub69211-12220

sub69211-52090

main69211-12220-B0iNZE121,ZZE124..07S..V200204-200304

sub69211-12220

sub69211-52090

main69211-12220-B0iNZE121,ZZE124..07S..V200206-200304

sub69211-12220

sub69211-52090

main69211-12220-B0iNZE121,ZZE124..X200111-200305

sub69211-12220

sub69211-52090

main69211-12220-B1iNZE121,ZZE12#200105-200706

SILVER ME.GR.,1D9

sub69211-12220

sub69211-52090

main69211-12220-C0iNZE121,ZZE12#200105-200304

BLACK ME,205

sub69211-12220

sub69211-52090

main69211-12220-C0iNZE121,ZZE124..07S..X200111-200305

sub69211-12220

sub69211-52090

main69211-12220-C2iNZE121,ZZE12#200304-200706

BLACK MC.,209

sub69211-12220

sub69211-52090

main69211-12220-D1iNZE121,ZZE12#200105-200706

RED M.M.,3N8

sub69211-12220

sub69211-52090

main69211-12220-D2iNZE121,ZZE12#200105-200304

BORDEAUX MC.,3P2

sub69211-12220

sub69211-52090

main69211-12220-F1iNZE121,ZZE12#200105-200304

GOLD ME.,585

sub69211-12220

sub69211-52090

main69211-12220-H3iNZE121,ZZE12#200304-200706

LT.AQUA ME.OP.,761

sub69211-12220

sub69211-52090

main69211-12220-J0iNZE121,ZZE12#200304-200706

DK.BLUE M.M.,8P4

sub69211-12220

sub69211-52090

main69211-12220-J2iNZE121,ZZE12#200105-200304

BLUE M.M.,8Q1

sub69211-12220

sub69211-52090

main69211-12220-P0iNZE121,ZZE12#200304-200706

SILVER M.M.,1E7

sub69211-12220

sub69211-52090

main69211-12220-X1iNZE121,ZZE12#200304-200706

ROSE ME.OP.,3P3

sub69211-12220

sub69211-52090

main69211-42010iNZE121,ZZE12#..V200105-200304

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-42020iNZE121,ZZE12#200105-200304

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-42010iNZE121,ZZE12#200105-200304

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-13010-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

sub69283-13010

main69283-13010-B0iNZE121,ZZE124..07S..X200111-200305

sub69283-13010

main69283-13010-B0iNZE121,ZZE124..07S..V200204-200304

sub69283-13010

main69283-13010-B0iNZE121,ZZE124..07S..V200206-200304

sub69283-13010

main69283-13010-B0iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

sub69283-13010

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69283-13010-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

sub69283-13010

main69283-13010-B0iNZE121,ZZE124..07S..V200204-200304

sub69283-13010

main69283-13010-B0iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

sub69283-13010

main69283-13010-B0iNZE121,ZZE124..07S..X200111-200305

sub69283-13010

main69283-13010-B0iNZE121,ZZE124..07S..V200206-200304

sub69283-13010

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iNZE121,ZZE12#200105-200304

main69293-12040iNZE121,ZZE12#200105-200304

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iNZE121,ZZE12#200105-200304

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-32040iNZE121,ZZE12#200105-200304

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015960550

main90159-60550

9016450032

main90164-50032

9016650003

main90166-50003

9018905003

main90189-05003

27 parts on this diagram · 2 diagrams in section
