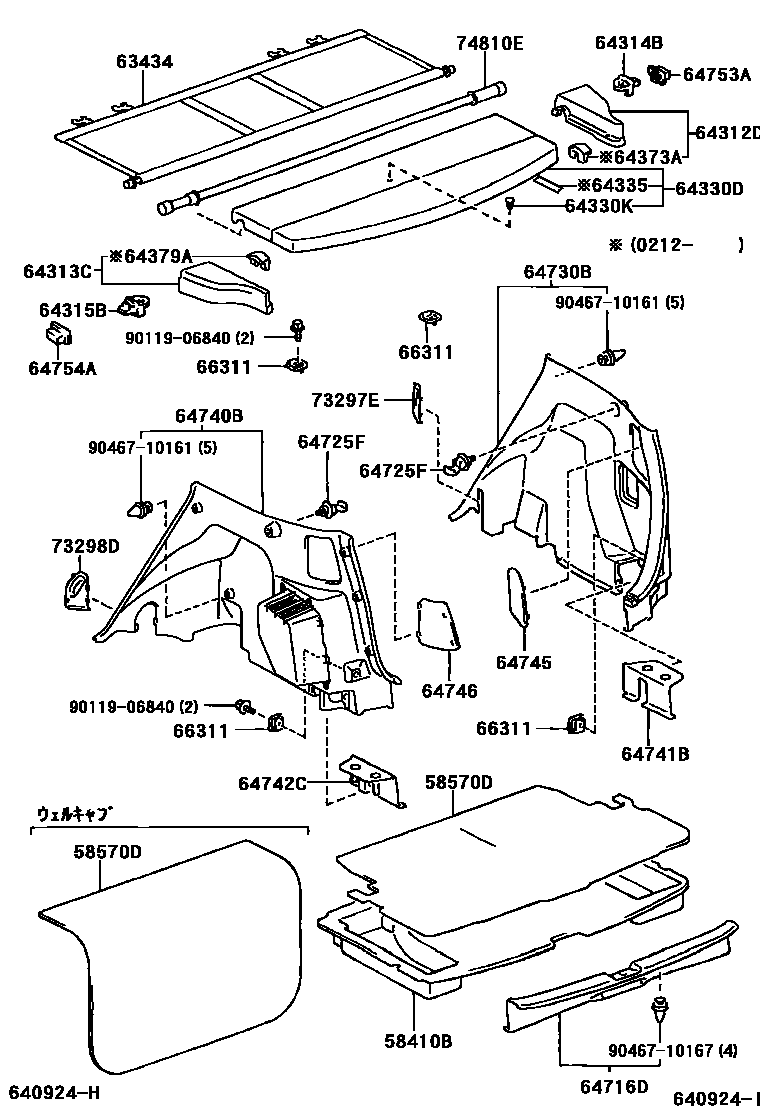

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

58410BBOARD ASSY, DECK

main58410-13140iNZE121,ZZE12#..05S200105-200304

58570DCARPET ASSY, REAR FLOOR

main58517-13010iNZE121,ZZE12#200105-200706

main58570-13270-A0iNZE121,ZZE122..05S200105-200304

IVORY,TRIM0#

main58570-13280-A0iZZE124..05S..(V,X)200108-200304

IVORY,TRIM0#

main58570-13280-B0iZZE124..05S..SAER200108-200304

GRAY,TRIM1#

main58571-13170-A0iZZE124..X200108-200706

IVORY,TRIM0#

main58571-13170-C0iZZE124..X200111-200305

main58571-13170-C0iZZE124200108-200706

BLACK,TRIM1#

main58571-13170-C0iZZE124..07S..V200204-200304

main58571-13170-C0iZZE124..07S..V200206-200304

main58581-13120-A1iNZE121,ZZE122..X200105-200706

IVORY,TRIM0#

main58581-13120-C0iZZE122..SAER200105-200706

BLACK,TRIM1#

main58581-13120-C0iNZE121..07S..X200111-200305

main58581-13120-C0iNZE121..07S..V200204-200304

main58581-13120-C0iNZE121..07S..V200206-200304

63434NET, ROOM RACK

main63434-13050-A0iNZE121,ZZE12#..05S..(V,X)200105-200109

IVORY,TRIM0#

main63434-13050-A1iNZE121,ZZE12#..05S..(V,X)200109-200304

IVORY,TRIM0#

main63434-13050-B0iZZE124..05S..SAER200108-200109

DK.GRAY,TRIM1#

main63434-13050-B1iZZE124..05S..SAER200109-200304

DARK GRAY,TRIM1#

64312DBRACKET, PACKAGE TRAY, RH

main64312-13010-A0iNZE121,ZZE12#..05S..(V,X)200105-200212

IVORY,TRIM0#

main64312-13010-B0iZZE124..05S..SAER200108-200212

DARK GRAY,TRIM1#

main64312-13011-A0iNZE121,ZZE12#..05S..(V,X)200212-200304

IVORY,TRIM0#

main64312-13011-B0iZZE124..05S..SAER200212-200304

DK.GRAY,TRIM1#

64313CBRACKET, PACKAGE TRAY, LH

main64313-13010-A0iNZE121,ZZE12#..05S..(V,X)200105-200212

IVORY,TRIM0#

main64313-13010-B0iZZE124..05S..SAER200108-200212

DARK GRAY,TRIM1#

main64313-13011-A0iNZE121,ZZE12#..05S..(V,X)200212-200304

IVORY,TRIM0#

main64313-13011-B0iZZE124..05S..SAER200212-200304

DK.GRAY,TRIM1#

64314BREINFORCEMENT, PACKAGE TRAY BRACKET, RH

main64314-13010iNZE121,ZZE12#..05S200105-200210

main64314-13011iNZE121,ZZE12#..05S200210-200304

64315BREINFORCEMENT, PACKAGE TRAY BRACKET, LH

main64315-13010iNZE121,ZZE12#..05S200105-200210

main64315-13011iNZE121,ZZE12#..05S200210-200304

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-13030-A0iNZE121,ZZE12#..05S..(V,X)200105-200109

IVORY,TRIM0#

main64330-13030-A2iNZE121,ZZE12#..05S..(V,X)200109-200212

IVORY,TRIM0#

main64330-13030-B0iZZE124..05S..SAER200108-200109

DARK GRAY,TRIM1#

main64330-13030-B2iZZE124..05S..SAER200109-200212

DARK GRAY,TRIM1#

main64330-13031-A2iNZE121,ZZE12#..05S..(V,X)200212-200304

IVORY,TRIM0#

main64330-13031-B2iZZE124..05S..SAER200212-200304

DARK GRAY,TRIM1#

64330KCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07083-A0iNZE121,ZZE12#..05S..(V,X)200109-200304

IVORY,TRIM0#

main90467-07083-B1iZZE124..05S..SAER200109-200304

DK.GRAY,TRIM1#

64335PAD, PACKAGE TRAY TRIM SILENCER, REAR

main64335-13010-A0iNZE121,ZZE12#..05S..(V,X)200212-200304

IVORY,TRIM0#

main64335-13010-B0iZZE124..05S..SAER200212-200304

DARK.GRAY,TRIM1#

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-13010iNZE121,ZZE12#..05S200212-200304

64379ASTOPPER, PACKAGE TRAY TRIM, LH

main64379-13010iNZE121,ZZE12#..05S200212-200304

64716DCOVER, DECK TRIM, REAR

main64716-13150-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

main64716-13150-B0iNZE121,ZZE124..07S..V200204-200304

main64716-13150-B0iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

main64716-13150-B0iNZE121,ZZE124..07S..X200111-200305

main64716-13150-B0iNZE121,ZZE124..07S..V200206-200304

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-13010-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

main64725-13010-B0iZZE12#..SAER200105-200706

DK.GRAY,TRIM1#

main64725-13010-B0iNZE121,ZZE124..07S..V200204-200304

main64725-13010-B0iNZE121,ZZE124..07S..V200206-200304

main64725-13010-B0iNZE121,ZZE124..X200111-200305

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-13150-A0iNZE121,ZZE12#..V200105-200304

IVORY,TRIM0#

main64730-13150-B0iNZE121,ZZE124..07S..V200204-200304

main64730-13150-B0iNZE121,ZZE124..07S..V200206-200304

main64730-13190-A0iNZE121,ZZE12#..V,X200105-200706

main64730-13190-B0iNZE121,ZZE124..X200111-200305

main64730-13190-B0iZZE12#..SAER200105-200706

main64730-13190-B0iNZE121,ZZE124..07S..V200204-200304

main64730-13190-B0iNZE121,ZZE124..07S..V200206-200304

main64730-13200-A0iNZE121,ZZE12#..V,X200105-200304

main64730-13200-B0iZZE12#..SAER200105-200304

main64730-13200-B0iNZE121,ZZE124..X200111-200305

main64730-13200-B0iNZE121,ZZE124..07S..V200204-200304

main64730-13200-B0iNZE121,ZZE124..07S..V200206-200304

64740BBOARD, DECK TRIM SIDE, LH

main64740-13140-A0iNZE121,ZZE12#..X200105-200504

IVORY,TRIM0#

main64740-13140-B0iNZE121,ZZE124..07S..V200204-200304

main64740-13140-B0iNZE121,ZZE124..07S..V200206-200304

main64740-13140-B0iNZE121,ZZE124..X200111-200305

main64740-13140-B0iNZE121,ZZE12#200105-200504

DK.GRAY,TRIM1#

main64740-13141-A0iNZE121,ZZE12#..X200505-200706

IVORY,TRIM0#

main64740-13141-B0iNZE121,ZZE12#200505-200706

DK.GRAY,TRIM1#

64741BBOX, DECK SIDE TRIM, RH

main62580-13020-A0iNZE121,ZZE12#..07S..(V,X)200105-200706

IVORY,TRIM0#

main62580-13020-B0iNZE121,ZZE124..X200111-200305

main62580-13020-B0iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

main62580-13020-B0iNZE121,ZZE124..07S..V200204-200304

main62580-13020-B0iNZE121,ZZE124..07S..V200206-200304

main64741-13030-A0iNZE121,ZZE12#..05S..(V,X)200105-200304

IVORY,TRIM0#

main64741-13030-B0iZZE124..05S..SAER200108-200304

DK.GRAY,TRIM1#

main64741-13040-A0iNZE121,ZZE12#..V,X200105-200706

main64741-13040-B0iZZE12#..SAER200105-200706

main64741-13040-B0iNZE121,ZZE124..07S..V200204-200304

main64741-13040-B0iNZE121,ZZE124..07S..V200206-200304

64742CBOX, DECK SIDE TRIM, LH

main62590-13020-A0iNZE121,ZZE12#..X200105-200706

IVORY,TRIM0#

main62590-13020-B0iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

main62590-13020-B0iNZE121,ZZE124..07S..X200111-200305

main62590-13020-B0iNZE121,ZZE124..07S..V200204-200304

main62590-13020-B0iNZE121,ZZE124..07S..V200206-200304

main64742-13030-A0iNZE121,ZZE12#..05S..(V,X)200105-200304

IVORY,TRIM0#

main64742-13030-B0iZZE124..05S..SAER200108-200304

DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-13020-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

main64745-13020-B0iNZE121,ZZE124..07S..V200206-200304

main64745-13020-B0iNZE121,ZZE124..X200111-200305

main64745-13020-B0iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

main64745-13020-B0iNZE121,ZZE124..07S..V200204-200304

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-13030-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

main64746-13030-B0iNZE121,ZZE124..07S..X200111-200305

main64746-13030-B0iNZE121,ZZE124..07S..V200204-200304

main64746-13030-B0iNZE121,ZZE124..07S..V200206-200304

main64746-13030-B0iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

64753AGARNISH, DECK SIDE, REAR, RH

main64753-13010iNZE121,ZZE12#..05S200109-200304

64754AGARNISH, DECK SIDE, REAR, LH

main64754-13010iNZE121,ZZE12#..05S200109-200304

66311HOOK, ROPE

main58460-33020iNZE121,ZZE12#200412

main66310-13010iNZE121,ZZE12#200105-200412

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-13040-A0iNZE121,ZZE12#..V,X200105-200706

IVORY,TRIM0#

main73297-13040-B0iNZE121,ZZE124..X200111-200305

main73297-13040-B0iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

main73297-13040-B0iNZE121,ZZE124..07S..V200204-200304

main73297-13040-B0iNZE121,ZZE124..07S..V200206-200304

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-13040-A0iNZE121,ZZE12#..X200105-200706

IVORY,TRIM0#

main73298-13040-B0iNZE121,ZZE124..07S..X200111-200305

main73298-13040-B0iNZE121,ZZE124..07S..V200204-200304

main73298-13040-B0iNZE121,ZZE12#200105-200706

DK.GRAY,TRIM1#

main73298-13040-B0iNZE121,ZZE124..07S..V200206-200304

74810EBAR ASSY, SEPARATOR

main74810-13020iNZE121,ZZE12#..05S200105-200304

9011906840

main90119-06840

9046710161

main90467-10161

9046710167

main90467-10167

29 parts on this diagram · 2 diagrams in section
