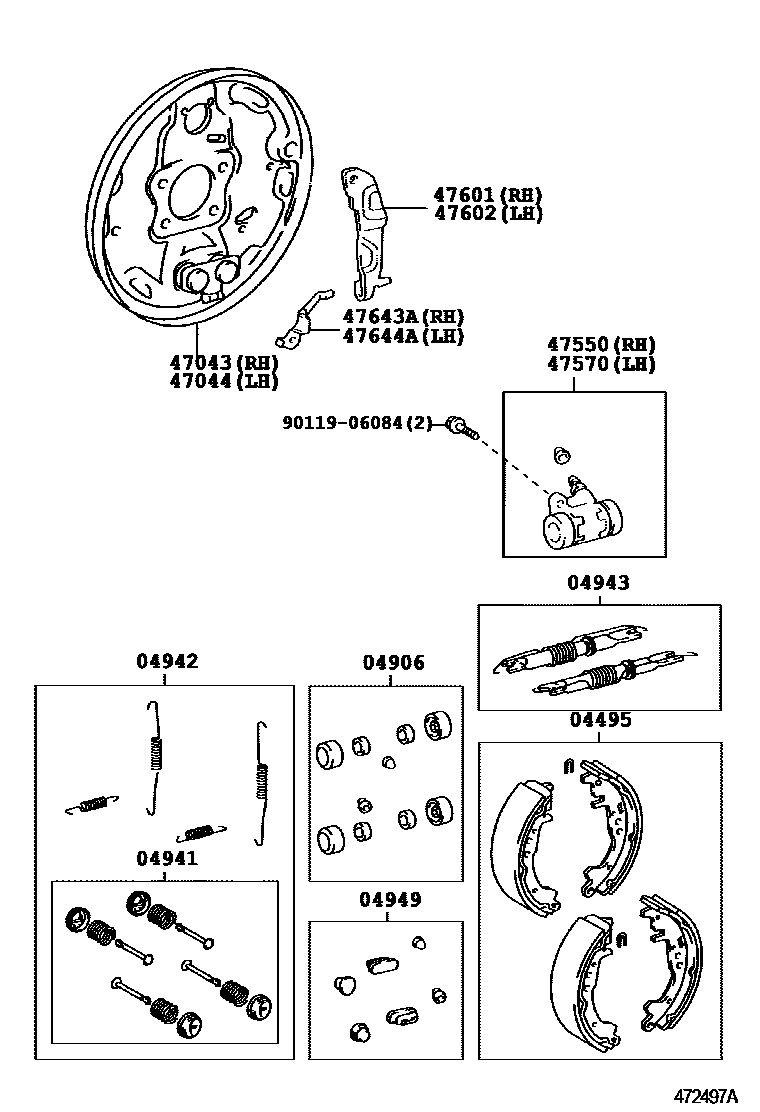

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
04906CUP KIT, REAR WHEEL CYLINDER
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04942SPRING KIT, REAR BRAKE
04943STRUT KIT, REAR BRAKE, RH
04949PLUG KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)
47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
9011906084
main90119-06084
15 parts on this diagram · 2 diagrams in section
