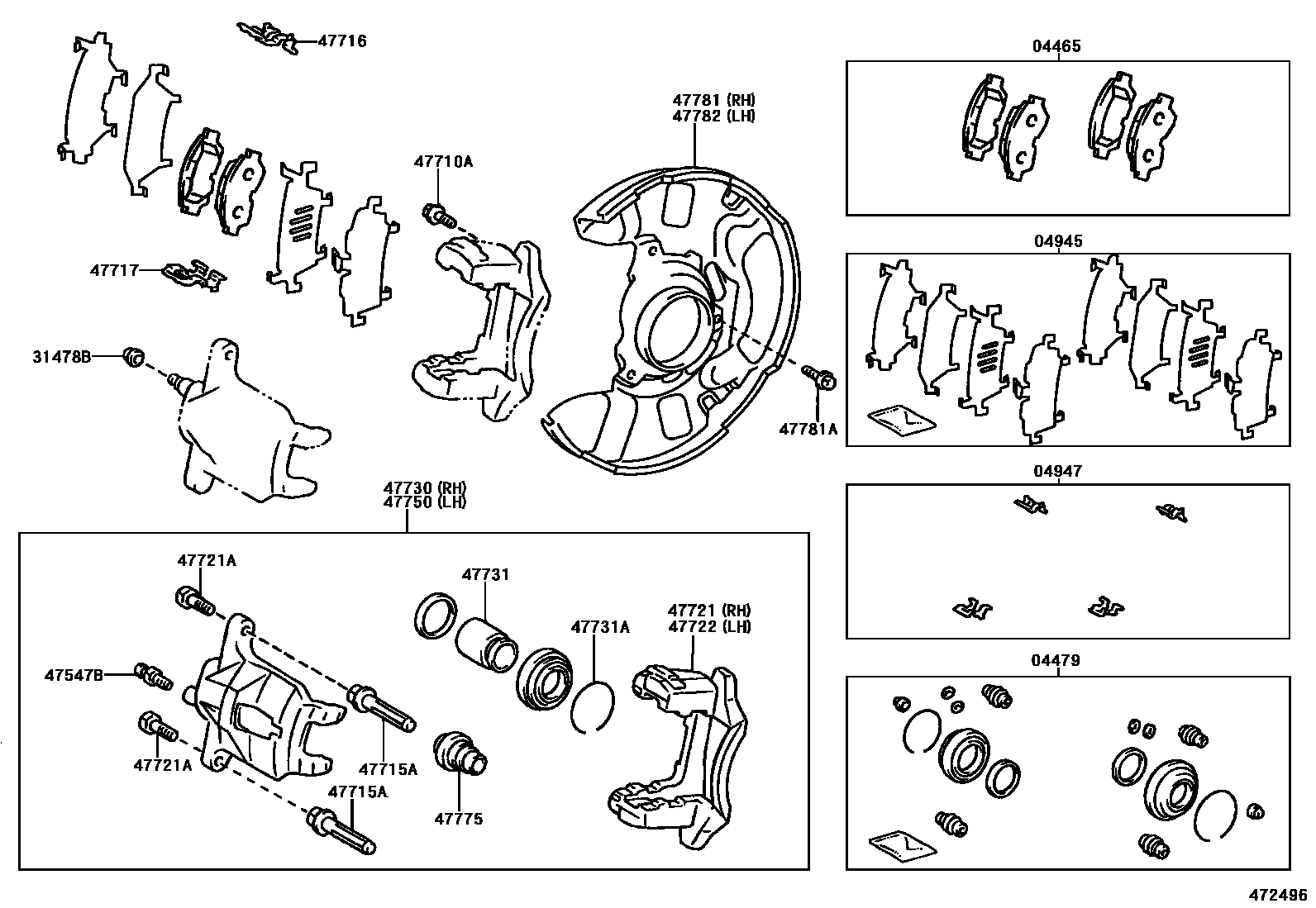

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12581iNZE121..05S200105-200304

main04465-12592iNZE121,ZZE122200304

main04465-13040iZZE124200108-200201

main04465-13041iZZE124200201-200304

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20320iZZE12#;NZE121..07S200105-200304

main04479-47020iNZE121..05S200105-200304

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNZE121,ZZE12#200105-200304

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iZZE12#;NZE121..07S200105-200304

main04947-47010iNZE121..05S200105-200304

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNZE121,ZZE12#200105-200304

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNZE121,ZZE12#200105-200304

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNZE121,ZZE12#200105-200304

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNZE121,ZZE12#200105-200304

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070×2iNZE121..05S200105-200304

main47716-20200×2iZZE12#;NZE121..07S200105-200304

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030×2iNZE121..05S200105-200304

main47717-20100×2iZZE12#;NZE121..07S200105-200304

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12220iNZE121..05S200105-200304

main47721-20440iZZE12#;NZE121..07S200105-200304

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNZE121,ZZE12#200105-200304

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12040iNZE121..05S200105-200304

main47722-20130iZZE12#;NZE121..07S200105-200304

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12490iNZE121..05S200105-200304

main47730-20600iZZE12#;NZE121..07S200105-200304

47731PISTON, FRONT DISC BRAKE

main47731-12170×2iNZE121..05S200105-200304

main47731-20260×2iZZE12#;NZE121..07S200105-200304

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iZZE12#;NZE121..07S200105-200304

main90522-66001×2iNZE121..05S200105-200304

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12490iNZE121..05S200105-200304

main47750-20510iZZE12#;NZE121..07S200105-200304

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010×4iNZE121,ZZE12#200105-200304

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-12240iNZE121,ZZE12#200105-200304

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNZE121,ZZE12#200105-200304

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-12240iNZE121,ZZE12#200105-200304

21 parts on this diagram · 1 diagram in section
