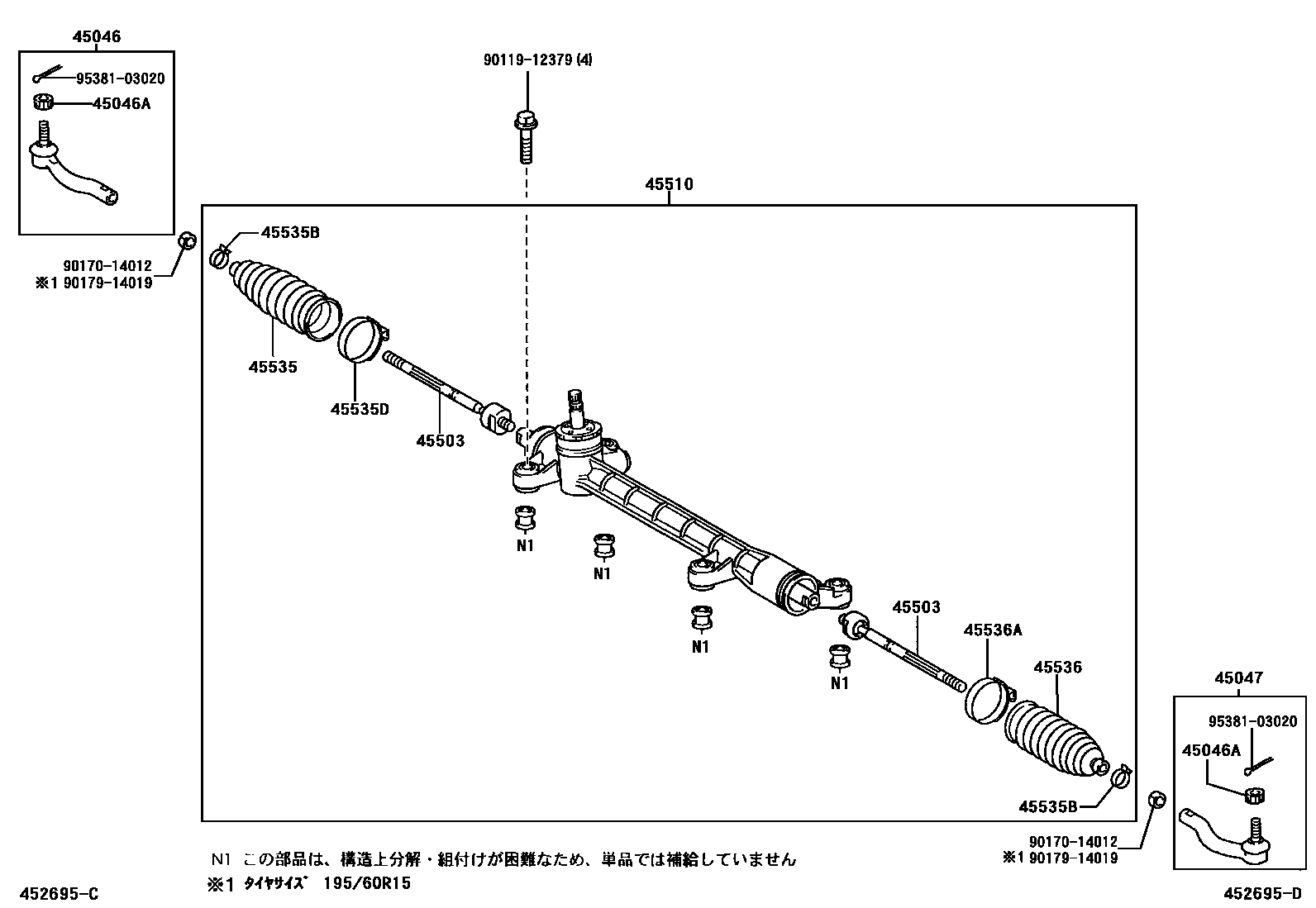

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-19265iNZE121200105-200304

main45046-29305iZZE124200304

main45046-49115iZZE122200105-200304

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNZE121,ZZE12#200105-200304

45047END SUB-ASSY, TIE ROD, LH

main45046-29305iZZE124200108-200304

main45047-19115iNZE121200105-200304

main45047-49045iZZE122200304

45503END SUB-ASSY, STEERING RACK

main45503-12130×2iNZE121200304

main45503-19255×2iZZE122200105-200304

main45503-19265×2iZZE124200108-200304

45510GEAR ASSY, STEERING

main45510-12290iNZE121200105-200304

main45510-12330iNZE121200304

45535BOOT, STEERING RACK, NO.1

main45535-13010iZZE12#200304

main45535-52050iZZE12#200105-200109

main45535-52060iNZE121200304

45535BCLIP(FOR STEERING RACK BOOT)

main90080-46174×2iNZE121200105-200304

main90467-19017×2iNZE121200105-200204

main90467-19019×2iZZE12#200105-200304

main90467-19021×2iNZE121200204-200304

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iZZE12#200105-200304

main90460-58008iNZE121200304

45536BOOT, STEERING RACK, NO.2

main45535-13010iZZE12#200304

main45535-52050iZZE12#200105-200109

main45535-52060iNZE121200105-200304

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iZZE12#200105-200304

main90460-58008iNZE121200105-200304

9011912379

main90119-12379

9017014012

main90170-14012

9017914019

main90179-14019

9538103020

main95381-03020

14 parts on this diagram · 4 diagrams in section
