31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-49002i200304-200706

33621DLABEL, TRANSAXLE OIL INFORMATION

main33621-12150i200111-200304

main33621-16060i200108-200111

35111CHOUSING, TRANSAXLE

main35105-20160i200105-200304

main35105-20161i200601

main35105-52070i200304-200506

main35105-52071i200506

main35105-63020i200108-200304

35174SEPARATOR, TRANSAXLE HOUSING OIL

main35174-20010i200304-200604

main35174-52030i200105-200304

main35174-63010i200304-200604

35783RGEAR, COUNTER DRIVEN

main35783-52020i200105-200304

41039AGEAR KIT, DIFFERENTIAL

main41039-12010i200409

main41039-32020i200409

41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)

main90341-18021i200105-200304

41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)

main90430-18008i200105-200304

41205PINION SUB-ASSY, DIFFERENTIAL DRIVE

main41205-52021i200702

41211PINION, DIFFERENTIAL DRIVE

main41211-52040i200105-200304

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90365-35004i200105-200304

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90365-35003i200304

41211EPLUG(FOR DIFFERENTIAL DRIVE PINION)

main90331-17017i200105-200304

41211FBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH)

main90374-18005i200105-200304

41211GBEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH)

main90374-45001i200105-200304

41221GEAR, FRONT DIFFERENTIAL RING

main41221-52090i200304

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003×8i200105-200304

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010×4i200105-200304

41311CASE, FRONT DIFFERENTIAL

main41301-12210i200301-200304

main41301-32071i200105-200301

main41301-52040i200105-200204

main41301-52070i200204-200304

main41301-63020i200304

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-49001i200304

main90564-49002i200304

main90564-49003i200304

main90564-49004i200304

main90564-49005i200105-200304

main90564-49006i200105-200304

main90564-49007i200304

main90564-49008i200304

main90564-49009i200105-200304

main90564-49010i200304

main90564-49011i200304

main90564-49012i200105-200304

main90564-49013i200105-200304

main90564-49014i200105-200304

main90564-49015i200105-200304

main90564-49016i200105-200304

main90564-49017i200105-200304

main90564-49018i200304

main90564-49019i200105-200304

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016i200105-200304

main90366-50045i200108-200304

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-44001i200105-200304

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12011×2i200105-200304

main41331-32010×2i200105-200304

41341FPINION, FRONT DIFFERENTIAL

main41341-12030×2i200105-200304

main41341-30011×2i200105-200304

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058i200105-200304

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-20060i200105-200304

main41342-32020i200304

main41342-32030i200108-200304

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12020×2i200304

main41351-32010×2i200105-200304

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-17010×2i200105-200304

main41361-17020×2i200105-200304

main41361-17030×2i200304

main41361-17040×2i200105-200304

main41361-17050×2i200105-200304

main41361-17060×2i200304

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9151180614

main91511-80614

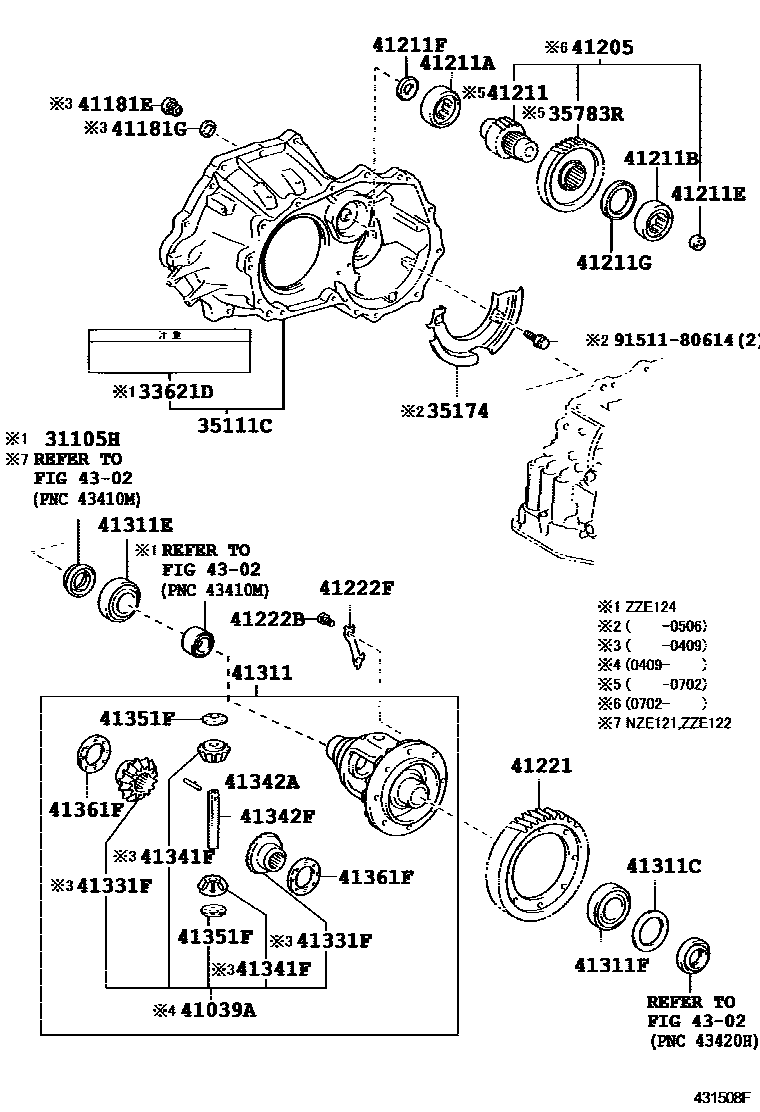

FRONT AXLE HOUSING & DIFFERENTIAL
