VENTILATION HOSE

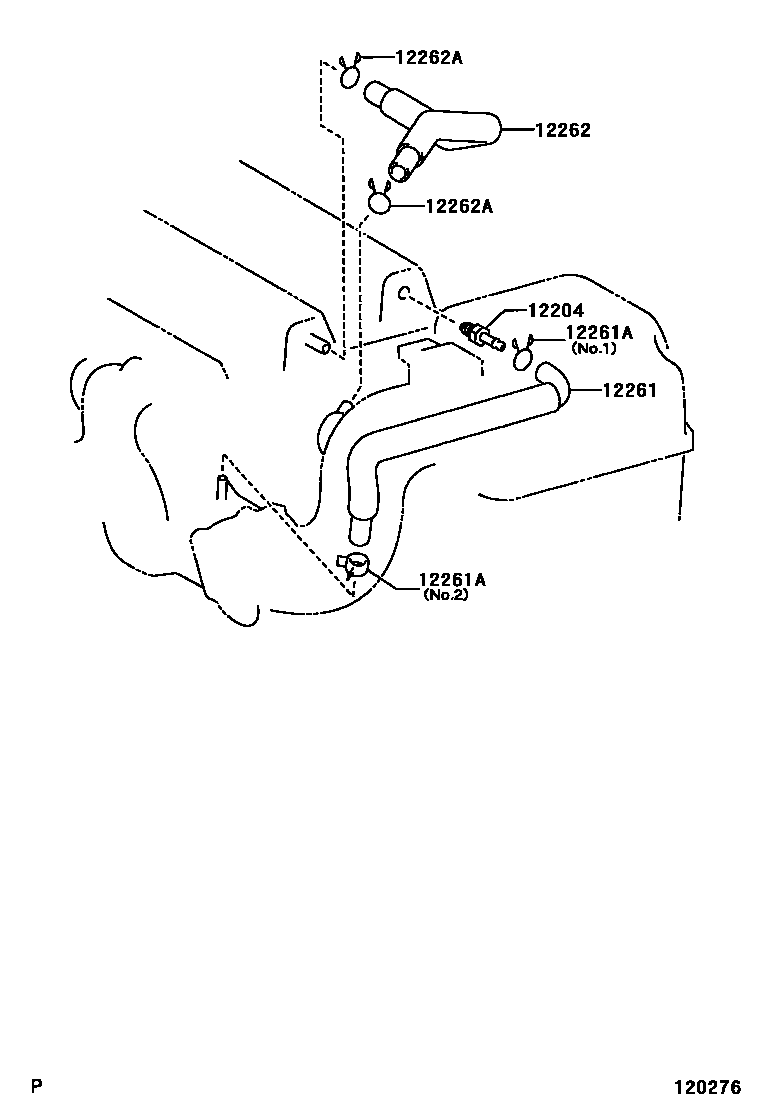

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-21010i200105-200401
sub12204-21011
main12204-21011i200401
main12204-22050i200105-200405
sub12204-22051
main12204-22051i200405
12261HOSE, VENTILATION
main12261-21050i200105-200304
main12261-22050i200105-200304
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
main90467-13057i200105-200304
main90467-17002i200105-200204
sub90467-17011
main90467-17011i200204-200304
sub96134-51700
main90467-21152i200105-200304
12262HOSE, VENTILATION, NO.2
main12262-21060i200105-200304
main12262-22040i200105-200304
12262ACLIP(FOR VENTILATION HOSE NO.2)
main16581-21050i200408
main90466-18002i200403
main90467-13103i200105-200304
main90467-19003i200105-200403
main90467-21004i200105-200408

5 parts on this diagram · 2 diagrams in section
