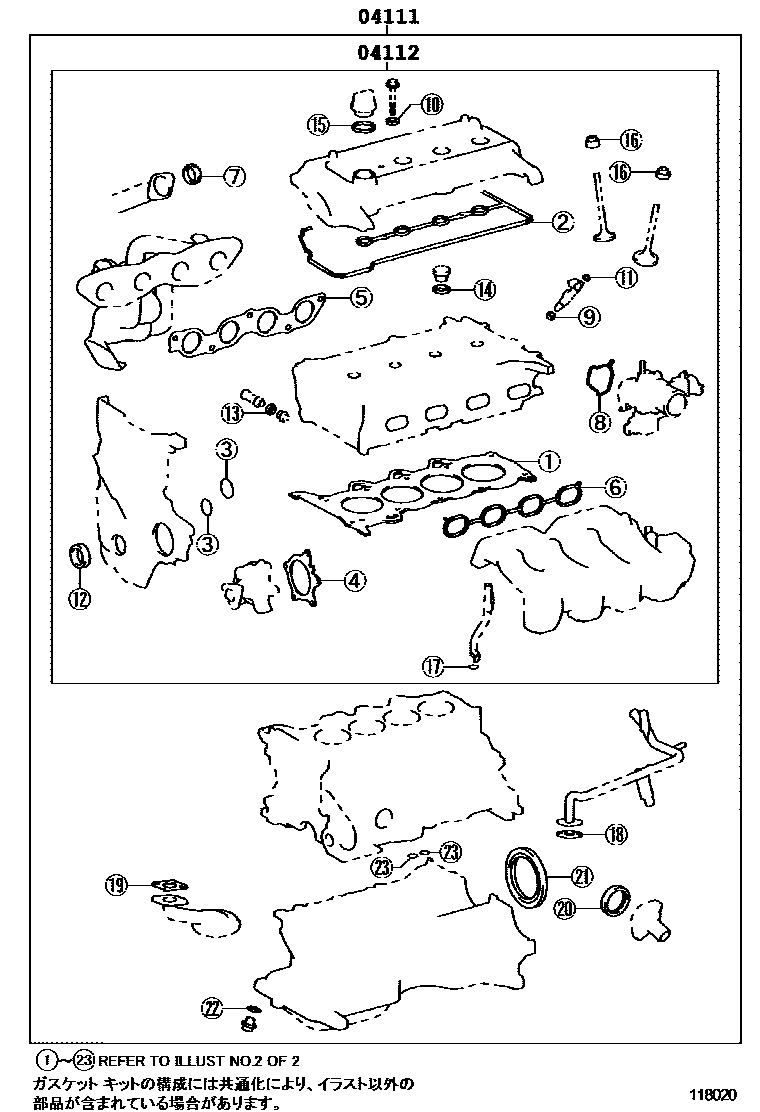

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-21040i1NZFE..NZE121200105-200302

sub04111-21041

main04111-21041i1NZFE..NZE121200302-200308

sub04111-21042

main04111-21042i1NZFE..NZE121200308-200612

sub04111-21043

main04111-21043i1NZFE..NZE121200612

sub04111-21044

main04111-22131i1ZZFE..ZZE12#200205-200302

sub04111-22132

main04111-22132i1ZZFE..ZZE12#200302-200311

sub04111-22512

main04111-22152i1ZZFE..ZZE122200304-200311

sub04111-22511

main04111-22160i1ZZFE..ZZE12#200105-200205

sub04111-22130

main04111-22511i1ZZFE..ZZE122200311-200706

sub04111-22513

main04111-22512i1ZZFE..ZZE124200311-200706

sub04111-22850

04112GASKET KIT, ENGINE VALVE GRIND

main04112-21040i1NZFE..NZE121200105-200302

sub04112-21041

main04112-21041i1NZFE..NZE121200302-200308

sub04112-21042

main04112-21042i1NZFE..NZE121200308-200612

sub04112-21043

main04112-21043i1NZFE..NZE121200612

sub04112-21044

main04112-22131i1ZZFE..ZZE12#200205-200302

sub04112-22132

main04112-22132i1ZZFE..ZZE124200302-200311

sub04112-22482

main04112-22152i1ZZFE..ZZE122200304-200311

sub04112-22481

main04112-22160i1ZZFE..ZZE12#200105-200205

sub04112-22130

main04112-22481i1ZZFE..ZZE122200311-200706

main04112-22482i1ZZFE..ZZE124200311-200706

sub04112-22700

2 parts on this diagram · 4 diagrams in section
