STANDARD TOOL

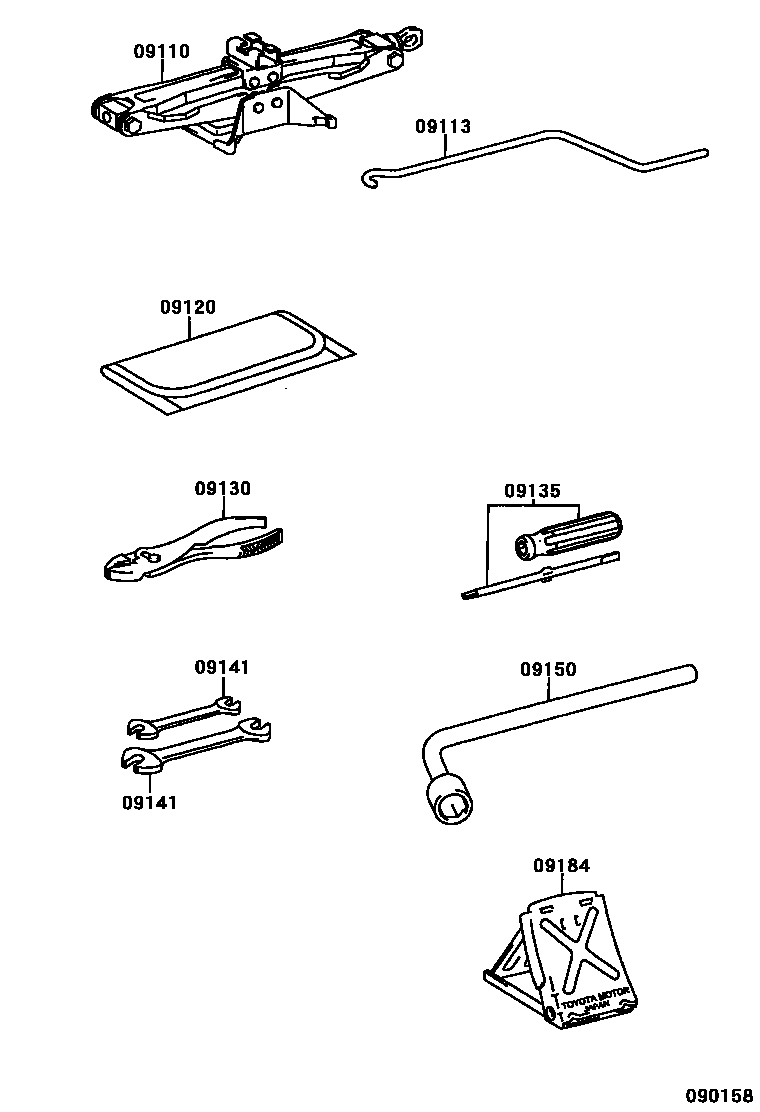

Parts diagram
09110JACK ASSY
main09111-02020i200304
main09111-20110i200105-200304
sub09111-02020
09113HANDLE, JACK
main09113-12030i200202-200210
sub09113-20040
main09113-20040i200210-200304
main09113-52010i200105-200202
main09113-52010i200202-200212
09120BAG, TOOL
main09120-13020i200105-200304
main09120-16030i200105-200304
09130PLIERS
main99913-11500i200105-200304
09135DRIVER, SCREW
main99915-10700i200105-200304
09141SPANNER
main99914-10810i200105-200304
main99914-11214i200105-200304
09150WRENCH, HUB NUT BOX
main09150-35070i200105-200304
09184STOPPER, WHEEL
main09184-00010i200105-200706

8 parts on this diagram · 1 diagram in section
