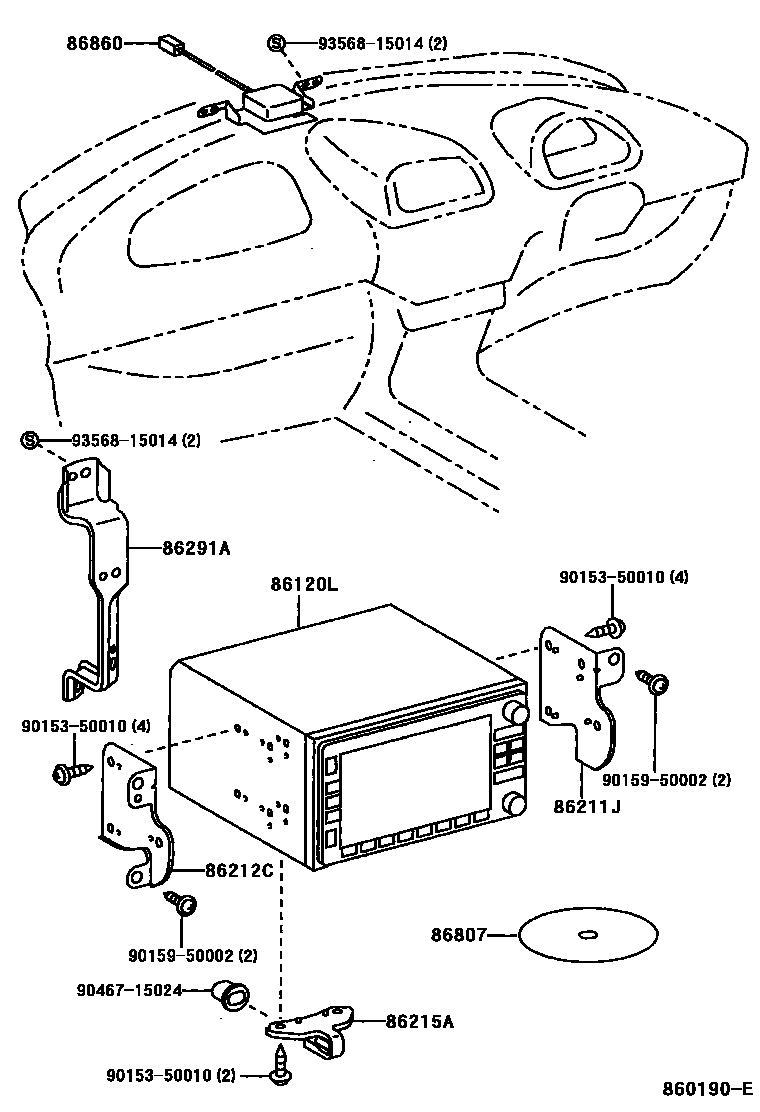

NAVIGATION & FRONT MONITOR DISPLAY

86120LRECEIVER ASSY, NAVIGATION

main86120-13030iAE111199701-199706

main86120-13031iAE11#199706-199710

main86120-13032iAE11#199710-199804

main86120-28320iAE11#199804-199910

main86120-28321iAE11#199910

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-13020iAE11#199701

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-13020iAE11#199701

86215ABRACKET, RADIO RECEIVER, REAR

main86215-13010iAE11#199701

86291ABRACKET, TELEVISION

main86291-13010iAE11#199706

86807DISC KIT, CD-ROM

main86807-13010iAE11#199701-199711

main86807-13011iAE11#199711

86860ANTENNA ASSY, NAVIGATION

main86860-13010iAE11#199701

9015350010

main90153-50010

9015950002

main90159-50002

9046715024

main90467-15024

9356815014

main93568-15014

11 parts on this diagram · 1 diagram in section
