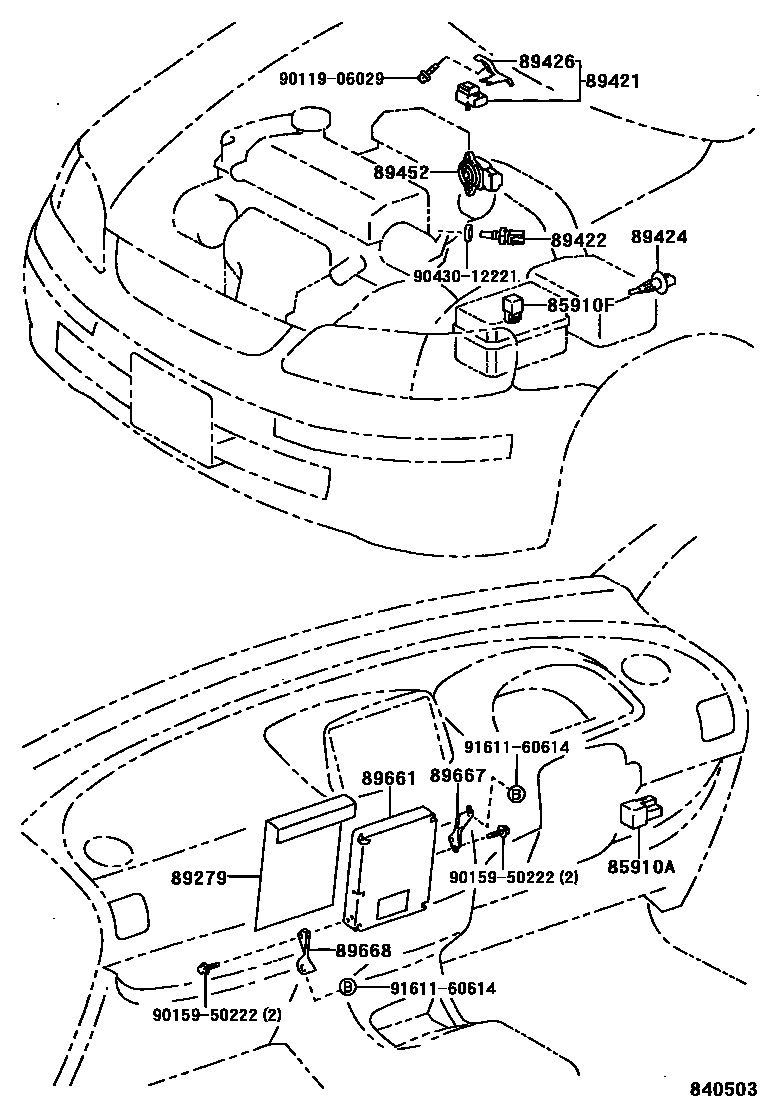

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iAE11#199701

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iAE11#199701

89279COVER, ENGINE CONTROL COMPUTER

main89279-13020iAE11#199701-199904

main89279-13030iAE111199904

main89279-13040iAE115199904

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-13010iAE11#199701

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAE11#199701

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAE11#199701

89426BRACKET, VACUUM SENSOR

main89426-13010iAE11#199701

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iAE115199707

main89452-33030iAE111199701

89661COMPUTER, ENGINE CONTROL

main89661-13020iAE111199701

main89661-13030iAE115199707

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-13010iAE11#199701

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-13010iAE11#199701

9011906029

main90119-06029

9015950222

main90159-50222

9043012221

main90430-12221

9161160614

main91611-60614

15 parts on this diagram · 1 diagram in section
