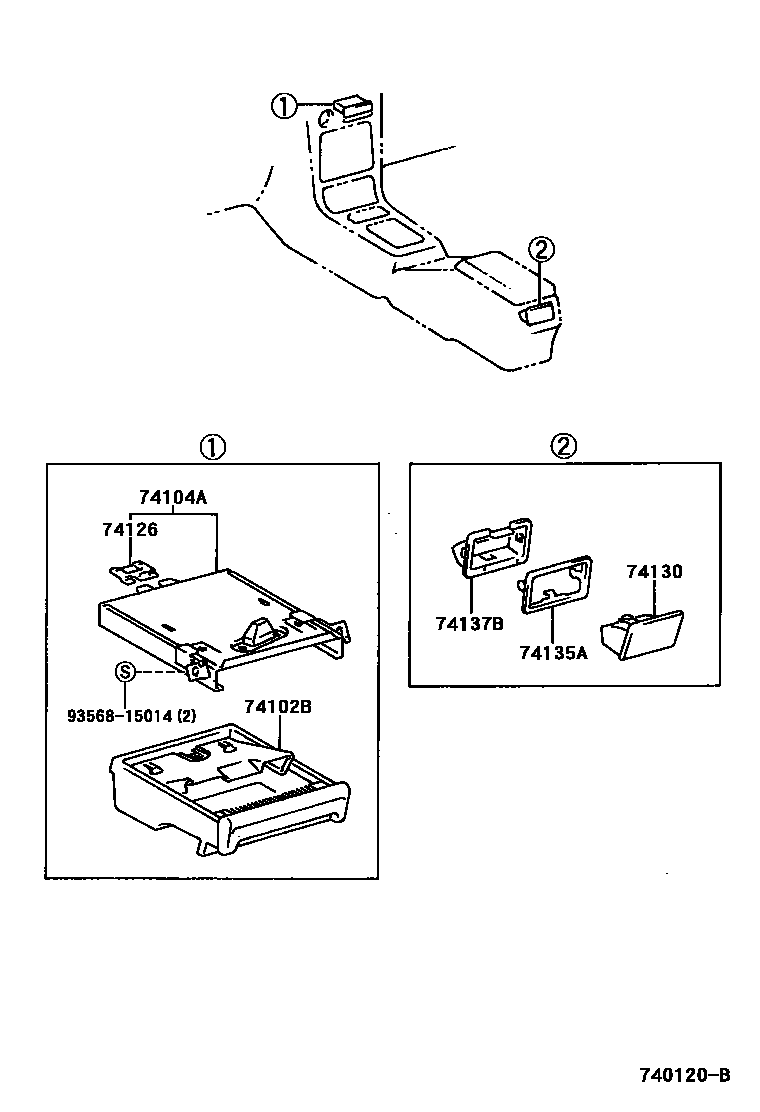

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-13010-A0iAE11#..05S199804-199812

main74102-13010-B0iAE11#199701

MD.CHARCOAL,TRIM1#

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-13010iAE11#199701

74126SUPPORT, FRONT ASH RECEPTACLE RET, NO.3

main74126-32010iAE11#199701

74130RECEPTACLE ASSY, REAR ASH

main74109-12020-A0iAE11#..05S..STD200004

main74109-12020-B3iAE11#..05S199904

MD.CHARCOAL,TRIM1#

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12040iAE11#..05S199904

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iAE11#..05S199904

9356815014

main93568-15014

7 parts on this diagram · 1 diagram in section
