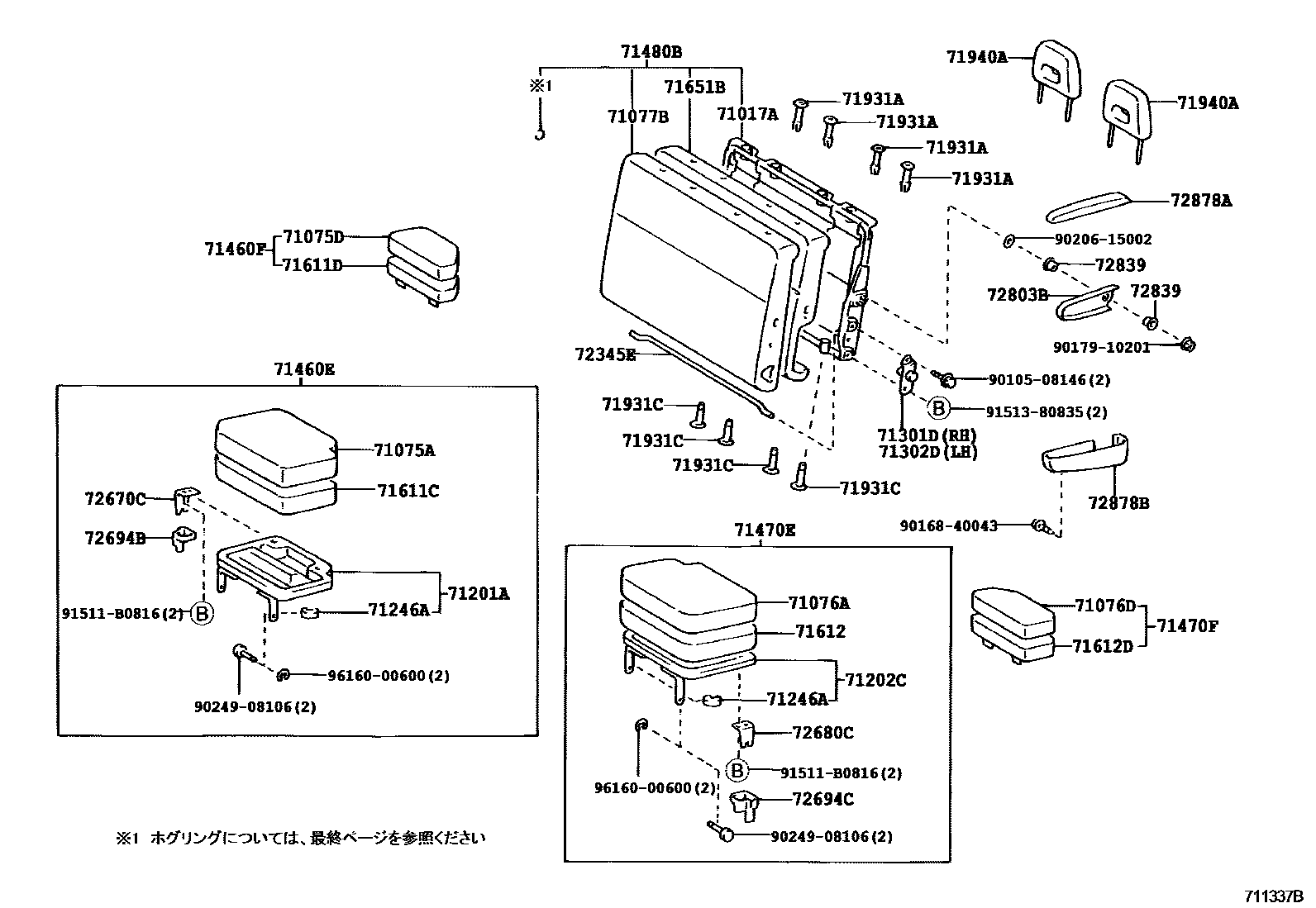

REAR SEAT & SEAT TRACK
71017FRAME SUB-ASSY, REAR SEATBACK, RH
71017AFRAME SUB-ASSY, REAR SEATBACK
71075ACOVER SUB-ASSY, REAR SEAT CUSHION, FRONT RH
MD.CHARCOAL,TRIM1#
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71075DCOVER SUB-ASSY, REAR SEAT CUSHION, RH
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
MEDIUM CHARCOAL,TRIM1#
71076ACOVER SUB-ASSY, REAR SEAT CUSHION, FRONT LH
MD.CHARCOAL,TRIM1#
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71076DCOVER, REAR SEAT CUSHION, REAR LH
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71201APANEL ASSY, REAR SEAT CUSHION, FRONT RH(FOR SEPARATE TYPE)
71202CPANEL ASSY, REAR SEAT CUSHION, FRONT LH(FOR SEPARATE TYPE)
71246APLATE, REAR SEAT CUSHION SET
71301DHINGE SUB-ASSY, REAR SEAT, RH
71302DHINGE SUB-ASSY, REAR SEAT, LH
71460ECUSHION ASSY, REAR SEAT, FRONT RH
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71460FCUSHION ASSY, REAR SEAT, REAR RH
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71470ECUSHION ASSY, REAR SEAT, FRONT LH
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71470FCUSHION ASSY, REAR SEAT, REAR LH
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
71611CPAD, REAR SEAT CUSHION, FRONT RH(FOR SEPARATE TYPE)
71611DPAD SUB-ASSY, REAR SEAT CUSHION, REAR RH(FOR SEPARATE TYPE)
71612PAD, REAR SEAT CUSHION, FRONT LH(FOR SEPARATE TYPE)
71612DPAD SUB-ASSY, REAR SEAT CUSHION, REAR LH(FOR SERPARATE TYPE)
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
71931ASUPPORT, REAR SEAT HEADREST
71931CSUPPORT ASSY, REAR NO.2 SEAT HEADREST
71940AHEADREST ASSY, REAR SEAT
MD.CHARCOAL,TRIM1#
CONCEPT BY MIKIHOUSE *(M),OAK,TRIM00
MD.CHARCOAL,TRIM1#
72345EPIPE, RECLINING CONNECTING
72670CLOCK ASSY, REAR SEAT CUSHION, NO.2 RH
72680CLOCK ASSY, REAR SEAT CUSHION, NO.2 LH
72694BCOVER, REAR SEAT CUSHION LOCK, RH
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
MD.CHARCOAL,TRIM1#
72694CCOVER, REAR SEAT CUSHION LOCK, LH
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
MD.CHARCOAL,TRIM1#
72803BBOARD SUB-ASSY, REAR SEAT ARMREST HOLE
72839SHIM, REAR SEAT ARMREST HINGE
72878ACOVER, SEAT ARMREST, NO.2 LH
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
MD.CHARCOAL,TRIM1#
72878BCOVER, SEAT ARMREST, LH
CONCEPT BY MIKIHOUSE *(M),IVORY,TRIM00
MD.CHARCOAL,TRIM1#
9010508146
main90105-08146
9016840043
main90168-40043
9017910201
main90179-10201
9020615002
main90206-15002
9024908106
main90249-08106
91511B0816
main91511-B0816
9151380835
main91513-80835
9616000600
main96160-00600
43 parts on this diagram · 5 diagrams in section
