FRONT SEAT & SEAT TRACK

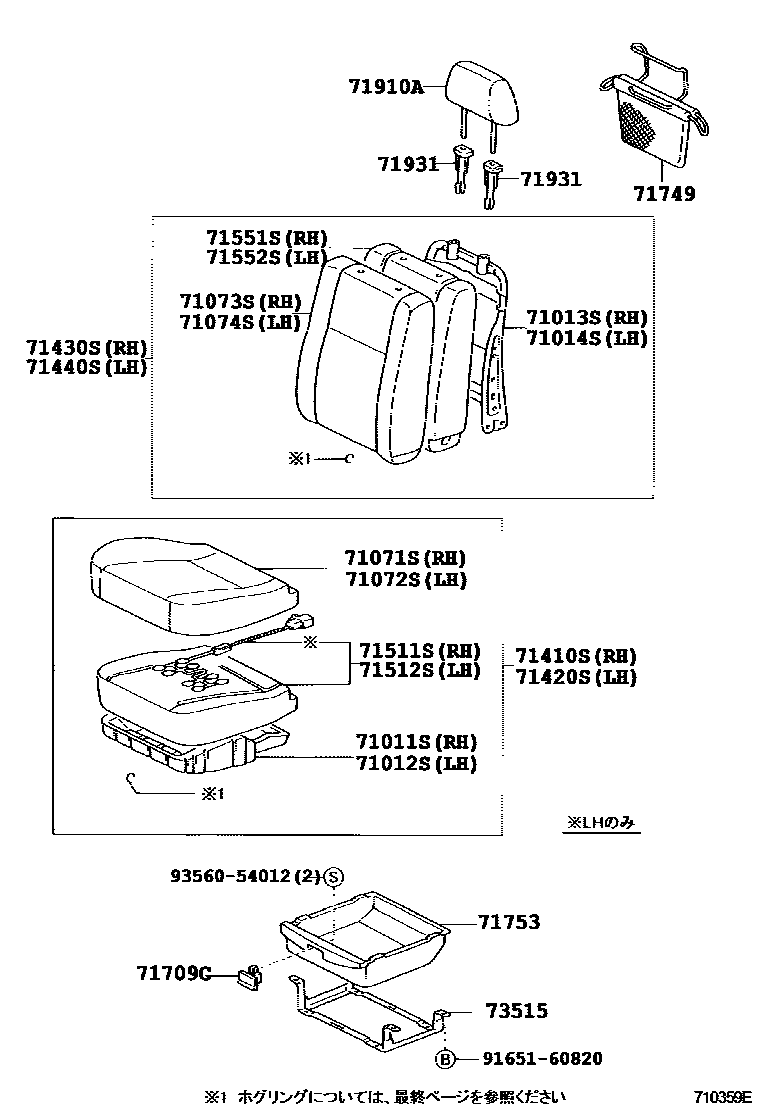

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-20430i199701
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-10230i199701-199904
main71011-13010i199701-199904
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-13040i199701
main71013-13060i199904
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71013-13040i199701-199904
main71013-13050i199701-199904
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-13370-B4i199701-199812
main71071-13370-B6i199812-199904
main71071-13410-B2i199701-199904
main71071-13470-B0i199709-199804
main71071-13510-D0i199804-199812
main71071-13530-J0i199809-199904
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71071-13540-C0i199809-200004
main71071-13550-B0i199904
main71071-13560-B0i199904
main71071-13570-B0i199904
main71071-13650-A0i200004
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-13320-B4i199701-199804
main71072-13330-B4i199701-199804
main71072-13370-B2i199701-199804
main71072-13380-B2i199701-199804
main71072-13440-B0i199709-199804
main71072-13450-B0i199709-199804
main71072-13480-D0i199804-199812
main71072-13490-D0i199804-199812
main71072-13500-B0i199804-199812
main71072-13500-B2i199812-199904
main71072-13510-B0i199804-199812
main71072-13510-B2i199812-199904
main71072-13520-B0i199804-199904
main71072-13530-B0i199804-199904
main71072-13570-J0i199809-199904
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71072-13580-C0i199809-200004
main71072-13590-B0i199904
main71072-13600-B0i199904
main71072-13610-B0i199904
main71072-13620-B0i199904
main71072-13630-B0i199904
main71072-13640-B0i199904
main71072-13650-J0i199812
CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00
main71072-13690-A0i200004
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-13320-B4i199701-199709
main71073-13321-B4i199709-199904
main71073-13390-B2i199701-199709
main71073-13391-B2i199709-199904
main71073-13480-B0i199709-199804
main71073-13520-D0i199804-199812
main71073-13540-J0i199809-199904
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71073-13550-C0i199809-200004
main71073-13560-B0i199904
main71073-13570-B0i199904
main71073-13580-B0i199904
main71073-13670-A0i200004
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-13321-B4i199804-199904
main71073-13550-C0i199809-200004
main71073-13560-B0i199904
main71074-13290-B4i199701-199709
main71074-13291-B4i199709-199904
main71074-13300-B4i199701-199709
main71074-13301-B4i199709-199904
main71074-13340-B2i199701-199709
main71074-13341-B2i199709-199904
main71074-13350-B2i199701-199709
main71074-13351-B2i199709-199904
main71074-13400-B0i199709-199904
main71074-13410-B0i199709-199904
main71074-13420-B0i199709-199804
main71074-13430-B0i199709-199804
main71074-13450-B0i199804-199904
main71074-13470-D0i199804-199812
main71074-13480-D0i199804-199812
main71074-13490-J0i199809-199904
CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71074-13500-B0i199904
main71074-13510-B0i199904
main71074-13520-B0i199904
main71074-13530-B0i199904
main71074-13540-B0i199904
main71074-13550-B0i199904
main71074-13560-J0i199812
CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00
main71074-13590-A0i200004
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-13370-B4i199701-199812
main71410-13370-B6i199812-199904
main71410-13410-B2i199701-199904
main71410-13520-B0i199709-199804
main71410-13560-D0i199804-199812
main71410-13580-J0i199809-199904
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71410-13590-C0i199809-200004
main71410-13600-B0i199904
main71410-13610-B0i199904
main71410-13620-B0i199904
main71410-13630-A0i200004
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-13320-B4i199701-199804
main71420-13321-B4i199804-199812
main71420-13321-B6i199812-199904
main71420-13330-B4i199701-199804
main71420-13331-B4i199804-199812
main71420-13331-B6i199812-199904
main71420-13370-B2i199701-199804
main71420-13371-B2i199804-199904
main71420-13380-B2i199701-199804
main71420-13381-B2i199804-199904
main71420-13500-B0i199709-199804
main71420-13510-B0i199709-199804
main71420-13600-D0i199804-199812
main71420-13610-D0i199804-199812
main71420-13630-J0i199809-199904
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71420-13640-C0i199809-200004
main71420-13650-B0i199904
main71420-13660-B0i199904
main71420-13670-B0i199904
main71420-13680-B0i199904
main71420-13690-B0i199904
main71420-13700-B0i199904
main71420-13730-J0i199812
***,CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00
main71420-13790-A0i200004
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-13340-B4i199701-199709
main71430-13341-B4i199709-199904
main71430-13410-B2i199701-199709
main71430-13411-B2i199709-199904
main71430-13490-B0i199709-199804
main71430-13520-D0i199804-199812
main71430-13540-J0i199809-199904
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71430-13550-C0i199809-200004
main71430-13560-B0i199904
main71430-13570-B0i199904
main71430-13580-B0i199904
main71430-13590-A0i200004
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-13330-B4i199701-199709
main71440-13331-B4i199709-199904
main71440-13340-B4i199701-199709
main71440-13341-B4i199709-199904
main71440-13410-B2i199701-199709
main71440-13411-B2i199709-199904
main71440-13420-B2i199701-199709
main71440-13421-B2i199709-199904
main71440-13500-B0i199709-199904
main71440-13510-B0i199709-199904
main71440-13520-B0i199709-199804
main71440-13530-B0i199709-199804
main71440-13560-B0i199804-199904
main71440-13570-B0i199804-199904
main71440-13610-D0i199804-199812
main71440-13620-D0i199804-199812
main71440-13630-J0i199809-199904
***,CONCEPT BY MIKIHOUSE *(M),DK.BLUE,TRIM00
main71440-13640-C0i199809-200004
main71440-13650-B0i199904
main71440-13660-B0i199904
main71440-13670-B0i199904
main71440-13680-B0i199904
main71440-13690-B0i199904
main71440-13700-B0i199904
main71440-13710-B0i199904
main71440-13720-J0i199812
***,CONCEPT BY MIKIHOUSE V *(M),DK.BLUE,TRIM00
main71440-13760-A0i200004
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-13030i199701
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-13020i199805-199904
main71052-13030i199904
main71511-13030i199701-199804
main71511-13040i199701-199804
main71512-13010i199804-199904
main71512-13020i199804-199904
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-13030i199701
main71551-13050i199904
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-13030i199701-199904
main71551-13040i199904
71709CLOCK SUB-ASSY, SEAT UNDER TRAY
main55560-95J00-A0i199812
CONCEPT BY MIKIHOUSE V *(M),IVORY,TRIM00
main55560-95J00-B3i199701
DK.CHARCOAL,TRIM1#
main55560-95J00-C0i199904
BLACK,TRIM10
71749NET, FRONT SEATBACK POCKET
main71749-13010-B0i199804-199812
main71749-13010-B1i199904
SHADOW DRAY,TRIM1#
71753TRAY, FRONT SEAT UNDER
main71753-13010-A0i199804-199812
main71753-13010-B0i199812
CONCEPT BY MIKIHOUSE V *(M),DK.CHARCOL,TRIM00
main71753-13020-A0i199804-199812
main71753-13020-C0i199707
BLACK,TRIM1#
71910AHEADREST ASSY, FRONT SEAT
main71910-13100-B0×2i199701-199804
MD.CHARCOAL,TRIM1#
main71910-13190-D0×2i199804-199812
main71910-13190-E1i200004
main71910-46010-B1×2i199804
MD.CHARCOAL,TRIM1#
main71910-46010-C0×2i199809-200004
71931SUPPORT, FRONT SEAT HEADREST
main71930-13030-A0×2i199812
main71930-13030-B0×2i199701
main71931-12040-A5×2i200004
main71931-12040-P9×2i199701
73515RAIL, FRONT SEAT UNDER TRAY, NO.1
main73507-13010i199701
9165160820
main91651-60820
9356054012
main93560-54012

24 parts on this diagram · 6 diagrams in section
