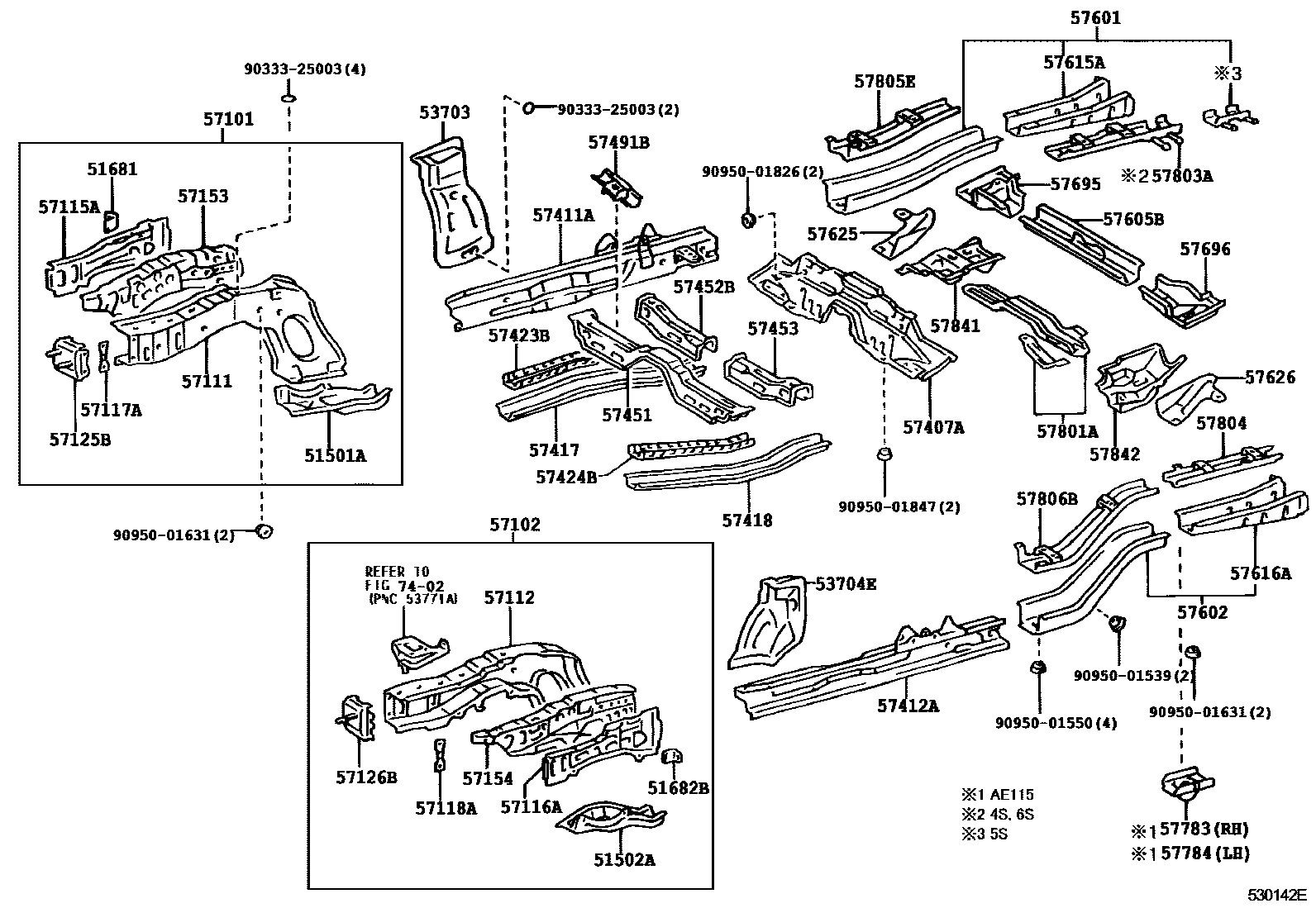

FLOOR SIDE MEMBER

51501AREINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51501-13010iAE11#199701

51502AREINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51502-13010iAE11#199701

51681BRACKET, FLEXIBLE HOSE

main51681-12050iAE11#199701

51682BBRACKET, FLEXIBLE HOSE, LH

main51682-12060iAE11#199701

53703APRON SUB-ASSY, FRONT FENDER, REAR RH

main53703-13010iAE11#199701

53704EAPRON SUB-ASSY, FRONT FENDER, REAR LH

main53704-13010iAE11#199701

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-13900iAE11#199701-199904

main57101-13901iAE11#199904

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-13900iAE11#199701-199904

main57102-13901iAE11#199904

57111MEMBER, FRONT SIDE, RH

main57111-12201iAE11#199701

57112MEMBER, FRONT SIDE, LH

main57112-12142iAE11#199701

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-12060iAE11#199701

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-12060iAE11#199701

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-12110iAE11#199701

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57117-12110iAE11#199701

57125BREINFORCEMENT, FRONT SIDE MEMBER, RH

main57125-12090iAE11#199904

main57125-13010iAE11#199701-199904

57126BREINFORCEMENT, FRONT SIDE MEMBER, LH

main57126-12050iAE11#199904

main57126-13010iAE11#199701-199904

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57016-13010iAE11#199701

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57017-13010iAE11#199701

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-13080iAE111199701

main57407-13090iAE115199707

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-13030iAE11#..05S,06S199701

main57401-13040iAE11#..04S199701

main57401-13050iAE11#..06S..AER199904

main57401-13060iAE11#..04S..STD199701

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-13030iAE11#..05S,06S199701

main57402-13040iAE11#..04S199701

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-13010iAE11#199701

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-13010iAE11#199701

57423BREINFORCEMENT, FRONT FLOOR UNDER, INNER RH

main57423-13010iAE11#199701

57424BREINFORCEMENT, FRONT FLOOR UNDER, INNER LH

main57424-13010iAE11#199701

57451MEMBER, FRONT FLOOR CROSS

main57451-12152iAE111199701-199707

main57451-12153iAE111199707

main57451-12170iAE115199707

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57051-13010iAE111..(04S,06S)..AER199904

main57051-13020iAE115..(04S,06S)..AER199904

main57452-13020iAE111199701

main57452-13030iAE115199707

57453MEMBER, FRONT FLOOR CROSS, NO.3

main57453-13010iAE111199701

main57453-13020iAE115199707

57491BBRACE, FRONT FLOOR CROSS, NO.1 RH

main57491-13010iAE111..04S,06S199701

main57491-13020iAE115..04S,06S199707

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-13250iAE111..04S,06S199701

main57601-13340iAE111..05S199707

main57601-13350iAE115..04S,06S199707

main57601-13360iAE115..05S199707

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-13240iAE111..04S,06S199701-199804

main57602-13320iAE111..05S199707-199804

main57602-13330iAE115..04S,06S199707-199804

main57602-13340iAE115..05S199707-199804

main57602-13370iAE111199804-199805

main57602-13371iAE111199805

main57602-13380iAE115199804-199805

main57602-13381iAE115199805

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-12140iAE115..04S,06S199707

main57605-12150iAE111..04S,06S199701

main57605-13060iAE111..05S199707

main57605-13070iAE115..05S199707

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-13900iAE11#199701-199904

main57615-13901iAE11#..05S199904

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-13900iAE11#199701-199804

main57616-13901iAE11#199804-199805

main57616-13902iAE11#199805

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57626-13040iAE11#199701

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57627-13030iAE11#199701

57695EXTENSION, REAR FLOOR CROSS REAR SIDE, RH

main57695-12030iAE111199701-199804

main57703-12080iAE111199804

57696EXTENSION, REAR FLOOR CROSS REAR SIDE, LH

main57696-12030iAE111199701-199804

main57704-12100iAE111199804

57783BRACKET, NO.8 BODY MOUNTING, RH

main57783-12010iAE115199707

57784BRACKET, NO.8 BODY MOUNTING, LH

main57784-12010iAE115199707

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57802-13020iAE111..04S,06S199701

main57802-13030iAE115..04S,06S199707

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-13010iAE11#..04S,06S199701

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-13020iAE11#..04S,06S199701

57805EREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-13010iAE11#..04S199701

main57805-13020iAE11#..06S199701

main57805-13030iAE11#..05S199707

57806BREINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-13020iAE11#..04S,06S199701

main57806-13030iAE11#..05S199707

57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH

main57841-13010iAE11#199701

57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH

main57842-13010iAE11#199701

7402BATTERY CARRIER

→ Go to FIG 74-02

9033325003

main90333-25003

9095001539

main90950-01539

9095001550

main90950-01550

9095001631

main90950-01631

9095001826

main90950-01826

9095001847

main90950-01847

54 parts on this diagram · 1 diagram in section
