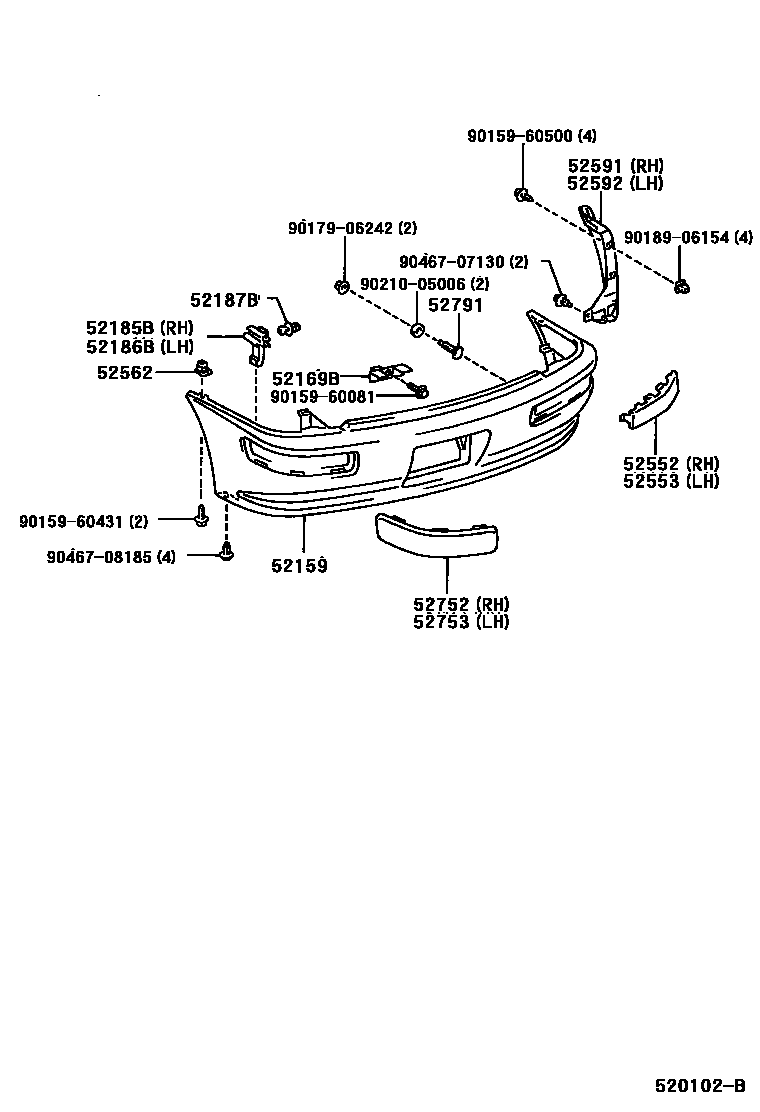

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-13100-A0iAE11#199701-199904

SUPER WHITE 2,040

main52159-13100-B0iAE11#199709-199804

main52159-13100-B1iAE11#199707-199904

GRAY M.M.,2DB

main52159-13100-C0iAE11#199804-199904

BLACK ME,205

main52159-13100-D0iAE11#199701-199804

RED MM,3K4

main52159-13100-D1iAE11#199804-199904

SUPER RED II,3E5

main52159-13100-F0iAE11#..05S199709-199904

main52159-13100-F1iAE111..05S199709-199711

SUPER BLIGHT YELLOW,576

main52159-13100-G0iAE11#199701-199804

DK.BLUE MC.,6P2

main52159-13100-G1iAE11#199804-199904

YELLOW GREEN ME.OP.,6Q9

main52159-13100-H0iAE11#..05S199804-199812

main52159-13100-J0iAE11#199701-199904

DK.BLUE MC.,8K8

main52159-13140-A0iAE11#199904

SUPER WHITE 2,040

main52159-13140-A1iAE11#..05S..STD200004

main52159-13140-B0iAE11#199904

SILVER ME.,1C0

main52159-13140-C0iAE11#199904

BLACK ME,205

main52159-13140-D0iAE11#..STD199904

SUPER RED II,3E5

main52159-13140-G0iAE11#..STD199904

YELLOW GREEN ME.OP.,6Q9

main52159-13140-G1iAE11#..STD199904

GREEN M.M.,6R9

main52159-13140-J0iAE11#..STD199904

BLUE MC.,8M6

52169BBRACKET, REAR BUMPER, CENTER

main52169-13020iAE11#199701

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-13040iAE11#199701-199904

main52185-13050iAE11#199904

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-13040iAE11#199701-199904

main52185-13050iAE11#199904

52187BGUIDE, REAR BUMPER LOCATION

main52187-16070×2iAE11#199701

52552FILLER, REAR BUMPER, RH

main52552-13030iAE11#199701

52553FILLER, REAR BUMPER, LH

main52553-13030iAE11#199701

52562RETAINER, REAR BUMPER, UPPER SIDE

main52562-12020×2iAE11#199701

52591SEAL, REAR BUMPER SIDE, RH

main52591-13020iAE11#199701-199904

main52591-13030iAE11#199904

52592SEAL, REAR BUMPER SIDE, LH

main52592-13020iAE11#199701-199904

main52592-13030iAE11#199904

52752MOULDING, REAR BUMPER SIDE, RH

main52752-13010iAE11#199701-199904

main52752-13020-B0iAE11#199709-199804

main52752-13030-B0iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M),SILVER ME.,040 ,3E5 ,8K8

main52752-13030-H0iAE11#..05S199804-199812

main52752-13030-J0iAE11#..05S199804-199812

52753MOULDING, REAR BUMPER SIDE, LH

main52753-13010iAE11#199701-199904

main52753-13020-B0iAE11#199709-199804

main52753-13030-B0iAE11#..05S199804-199812

main52753-13030-H0iAE11#..05S199804-199812

main52753-13030-J0iAE11#..05S199804-199812

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12010×2iAE11#199701

9015960081

main90159-60081

9015960431

main90159-60431

9015960500

main90159-60500

9017906242

main90179-06242

9018906154

main90189-06154

9021005006

main90210-05006

9046707130

main90467-07130

9046708185

main90467-08185

21 parts on this diagram · 1 diagram in section
