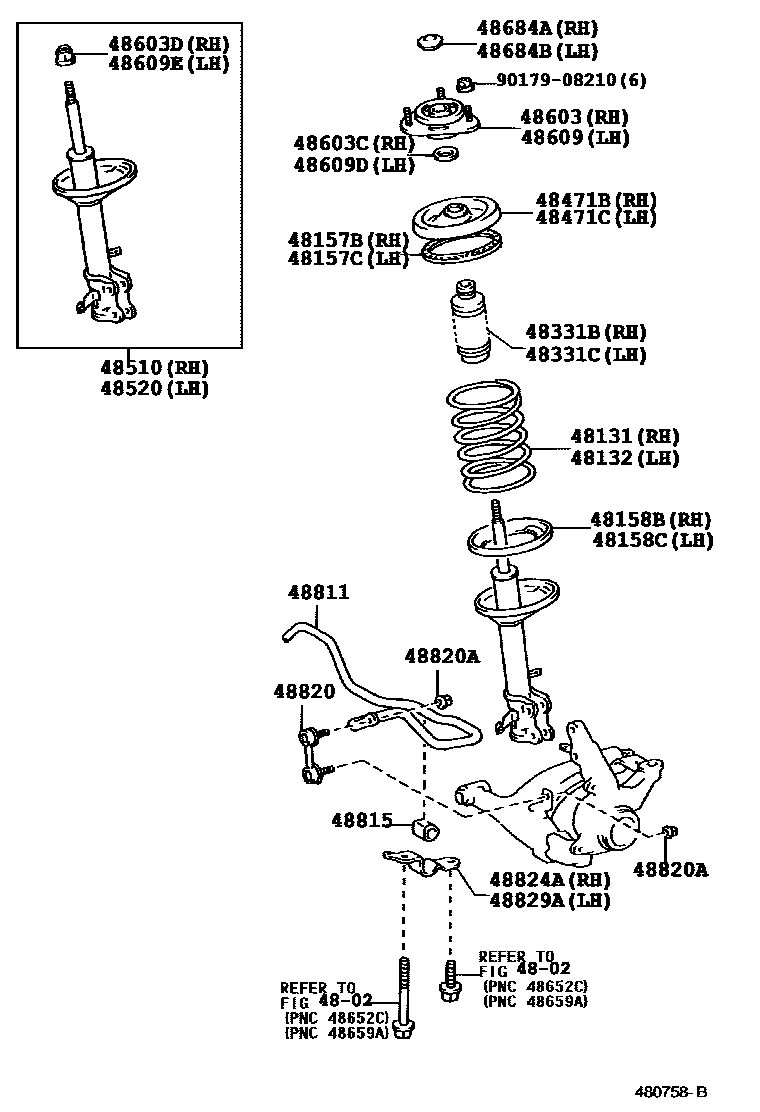

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-13110iAE115199707

main48131-1L590iAE111199701

48132SPRING, FRONT COIL, LH

main48131-13110iAE115199707

main48131-1L590iAE111199701

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12070iAE11#199701

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12070iAE11#199701

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE11#199701

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE11#199701

48331BBUMPER, FRONT SPRING, RH

main48304-44010iAE11#199701-199801

main48304-44020iAE111199801

48331CBUMPER, FRONT SPRING, LH

main48304-44010iAE115199701-199801

main48304-44020iAE111199801

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-12090iAE11#199701

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-12090iAE11#199701

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-19435iAE111199701-199805

sub48510-80232

main48510-19785iAE115199707-199805

sub48510-80234

main48510-87690iAE111199805-199812

sub48510-87700

main48510-87692iAE115199805-199812

sub48510-87703

main48510-87700iAE111199812

sub48510-80232

main48510-87703iAE115199812

sub48510-80234

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-19155iAE111199701-199805

sub48520-80055

main48520-19465iAE115199707-199805

sub48520-80054

main48520-49255iAE111199805-199812

sub48520-49256

main48520-49256iAE111199812

sub48520-80055

main48520-49275iAE115199805-199812

sub48520-49276

main48520-49276iAE115199812

sub48520-80054

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12330iAE11#199701

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE11#199701

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE11#199701

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12330iAE11#199701

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE11#199701

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE11#199701

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE11#199701

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE11#199701

48811BAR, STABILIZER, FRONT

main48811-13040iAE111199701

main48811-1A120iAE115199707

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12230iAE115199707

main48815-13030iAE111199701

48820LINK ASSY, FRONT STABILIZER

main48820-33010iAE111199701

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE111199701

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE11#199701

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE11#199701

9017908210

main90179-08210

28 parts on this diagram · 2 diagrams in section
