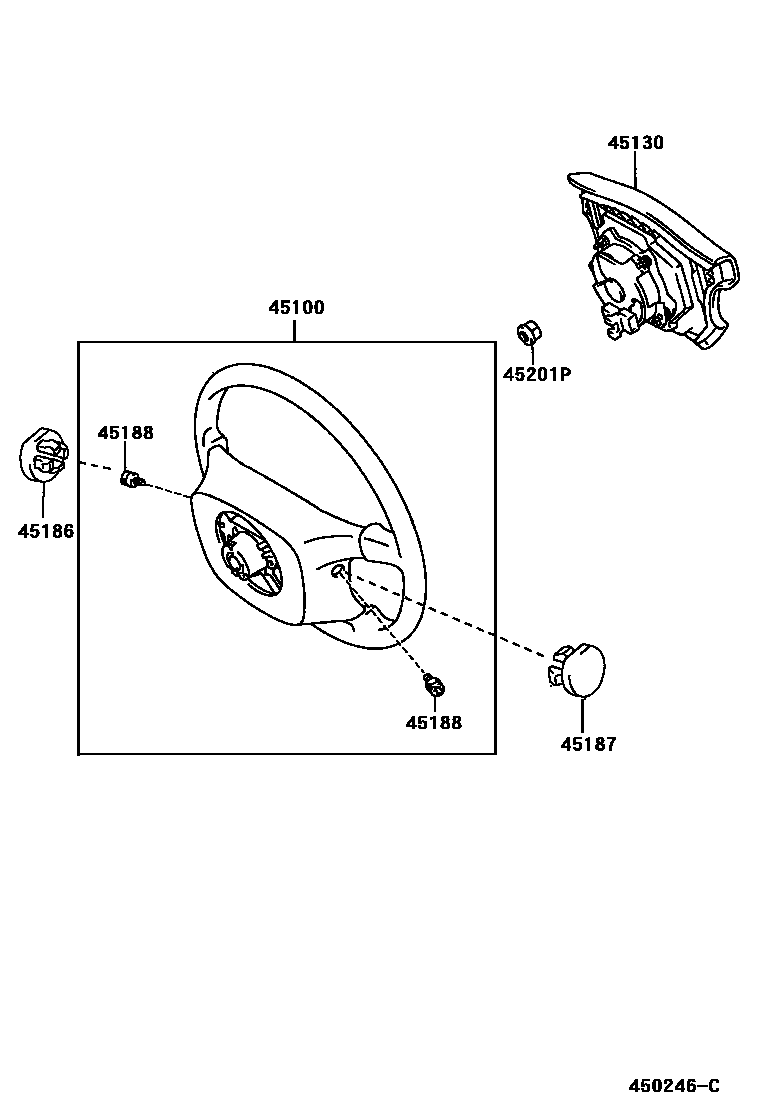

STEERING WHEEL

0001 14-SPOKE, URETHANE 0002 13-SPOKE, LEATHER

45100WHEEL ASSY, STEERING

main45100-12891-B1iAE11#..AER199904

main45100-13010-B0iAE11#..STD199701

main45100-13020-B0iAE11#..05S199812-199904

45130BUTTON ASSY, HORN

main45130-13010-B1iAE11#199701-199804

DK.CHARCOAL,TRIM1#

main45130-1A120-B2iAE11#..AER199904

DK.CHARCOAL,TRIM1#

main45130-1A130-B0iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M),DK.CHARCOAL,TRIM00

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-33050-B1iAE11#..06S199809-199904

CONCEPT BY MIKIHOUSE *(M),DK.CHARCOAL,TRIM00

main45186-44010-B5iAE11#..05S199804-199812

45187COVER, STEERING WHEEL, LOWER NO.3

main45186-33050-B1iAE11#..05S199812-199904

CONCEPT BY MIKIHOUSE V *(M),DK.CHARCOAL,TRIM00

main45186-44010-B5iAE11#..05S199804-199812

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iAE11#199903

main90148-60011×2iAE11#..STD199701

main90148-60036×2iAE11#199804-199903

45201PNUT, STEERING WHEEL SET

main90179-12071iAE11#199701

6 parts on this diagram · 2 diagrams in section
