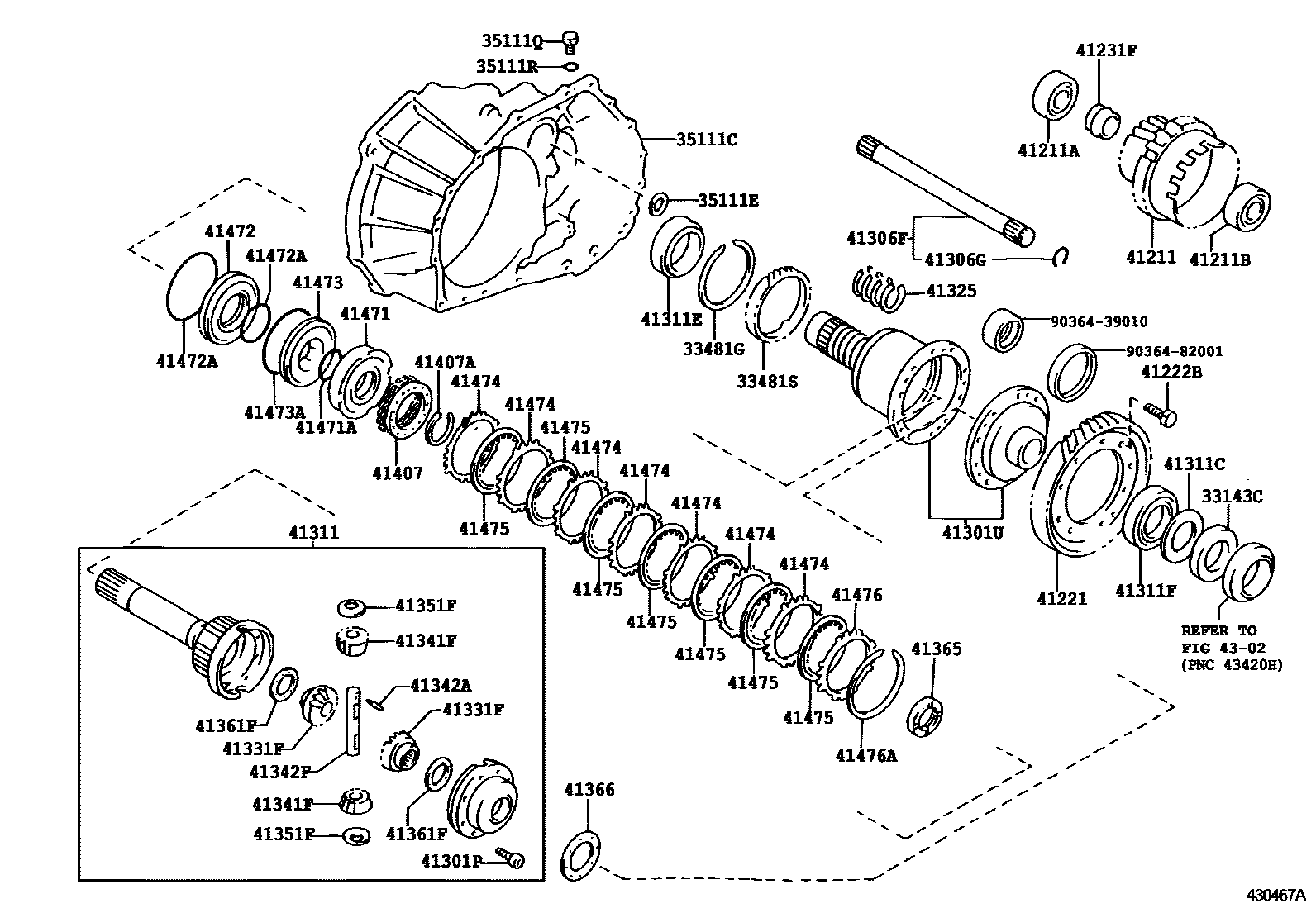

FRONT AXLE HOUSING & DIFFERENTIAL
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33481GRING, SHAFT SNAP (FOR ATM SPEEDOMETER DRIVE GEAR)
35111EWASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
35111QPLUG, NO.2 (FOR TRANSAXLE HOUSING)
35111RRING, O (FOR TRANSAXLE HOUSING PLUG NO.2)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41301PSCREW(FOR FRONT DIFFERENTIAL CASE)
41301UCASE SUB-ASSY, FRONT DIFFERENTIAL RING GEAR MOUNTING
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41306GRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR INTER SHAFT)
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41325RING, FRONT DIFFERENTIAL RING GEAR MOUNTING CASE OIL SEAL
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41365WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.1
41366WASHER, FRONT DIFFERENTIAL SIDE TRUST, NO.2
41407SPRING SUB-ASSY, DIFFERENTIAL LOCK PISTON RETURN
41407ARING, SHAFT SNAP (FOR DIFF LOCK PISTON RETURN SPRING)
41471PISTON, DIFFERENTIAL LOCK CLUTCH, NO.1
41471ARING, O (FOR DIFFERENTIAL LOCK CLUTCH PISTON NO.1)
41472PISTON, DIFFERENTIAL LOCK CLUTCH, NO.2
41473SLEEVE, DIFFERENTIAL LOCK CLUTCH PISTON REACTION
41473ARING, O (FOR PISTON REACTION SLEEVE)
41474PLATE, DIFFERENTIAL LOCK CLUTCH
41475DISC, DIFFERENTIAL LOCK CLUTCH
41476FLANGE, DIFFERENTIAL LOCK CLUTCH
41476ARING, HOLE SNAP (FOR DIFFERENTIAL LOCK CLUTCH FLANGE)
4302
9036439010
main90364-39010
9036482001
main90364-82001
45 parts on this diagram · 2 diagrams in section
