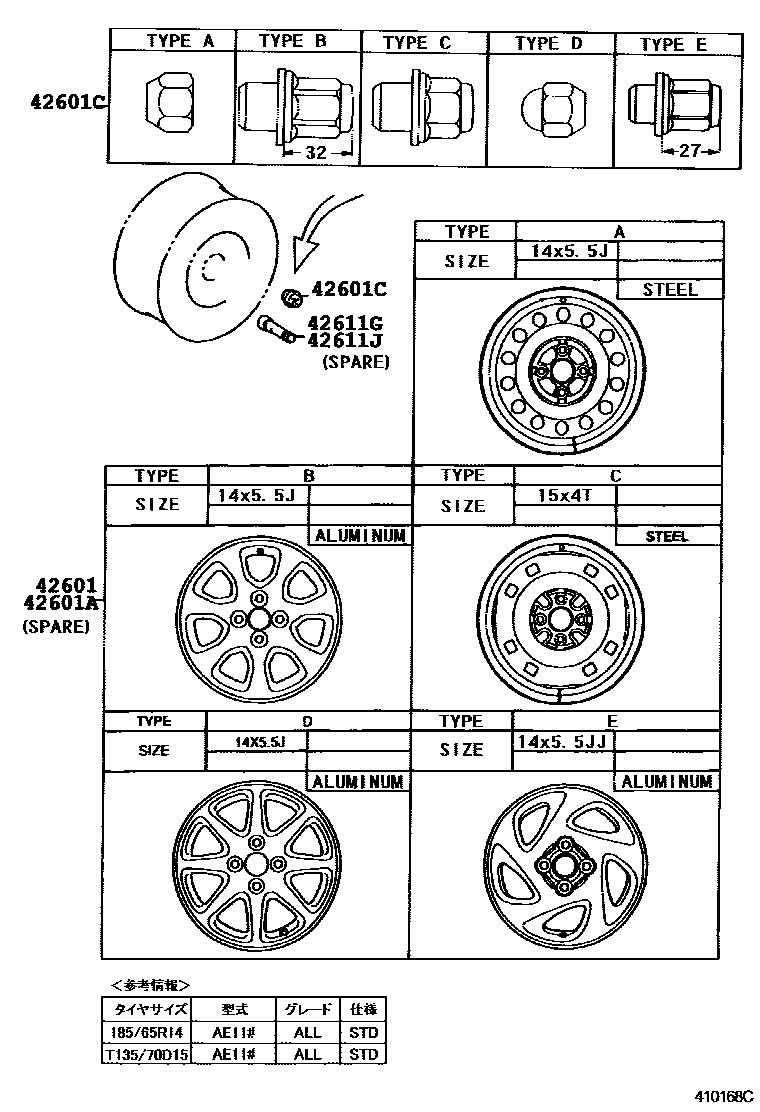

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-02140×4iAE11#..AER199904

main42611-1A140-01×4iAE11#199701

main42611-1A370×4iAE11#..STD199701

main42611-1A380×4iAE11#199801-199904

42601AWHEEL, DISC (FOR SPARE)

main42611-1A010iAE11#199701

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iAE11#199701-199904

main90942-01021×16iAE11#199904

main90942-01033×16iAE11#199801-199904

main90942-01058×16iAE11#..STD199701

main90942-01083×16iAE11#..AER199904

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iAE11#199701

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iAE11#199701

5 parts on this diagram · 3 diagrams in section
