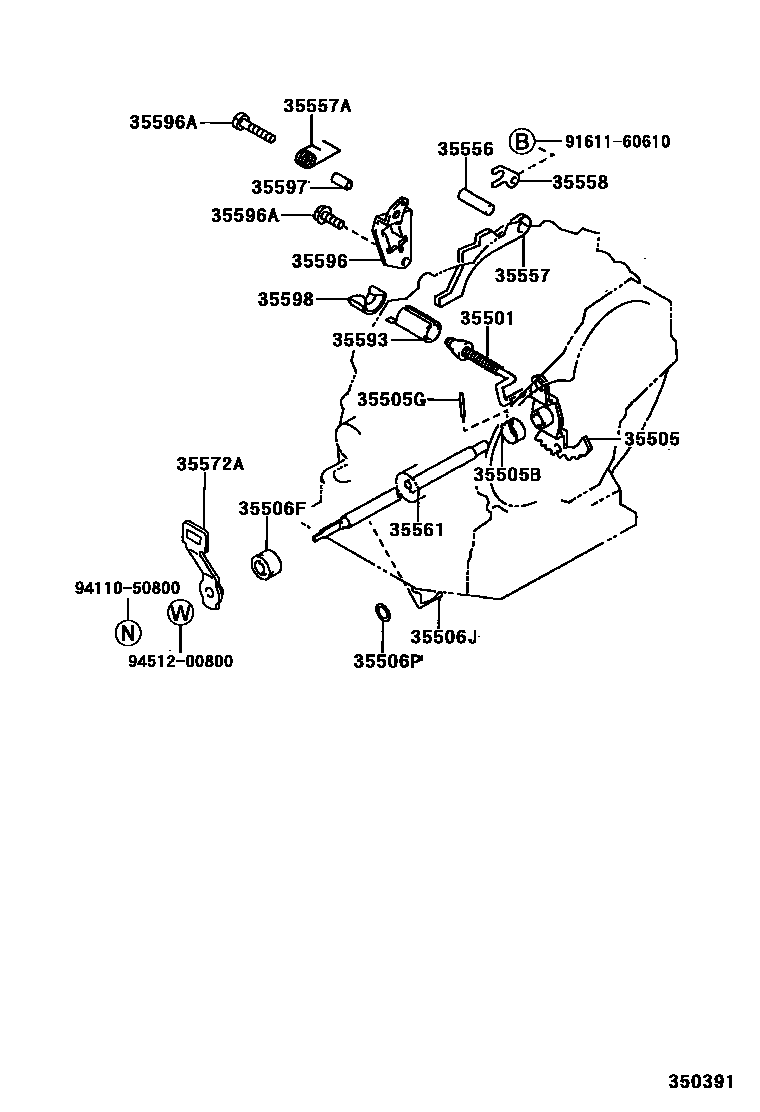

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A241H,A246E 0002 1A246E 0003 1A241H

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAE11#199701-199911

main35501-12030iAE11#199911

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-12040iAE115199707-199911

main35505-12060iAE115199911

main35505-12070iAE111199701-199911

main35505-12080iAE111199911

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAE11#199701

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAE11#199701

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAE11#199701

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-11001iAE11#199701

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iAE11#199701

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAE111199701

main35556-12030iAE115199707

35557PAWL, PARKING LOCK

main35557-12020iAE11#199701-199911

main35557-12030iAE11#199911

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAE11#199701-199911

main90949-03060iAE11#199911

35558CLAMP, PAWL SHAFT

main35558-12010iAE111199701

main35558-12020iAE115199707

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iAE115199707

main35561-12030iAE111199701

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12120iAE115199707

main35572-12130iAE111199701

35593SLEEVE, CAM GUIDE

main35593-12010iAE11#199701

35596PLATE, PAWL STOPPER

main35596-12010iAE11#199701

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08068iAE11#199701

main90105-08070iAE11#199701

35597SLEEVE, SPRING GUIDE

main35597-12010iAE11#199701

35598SLEEVE, PARKING LOCK

main35598-12010iAE11#199701

9161160610

main91611-60610

9411050800

main94110-50800

9451200800

main94512-00800

21 parts on this diagram · 3 diagrams in section
