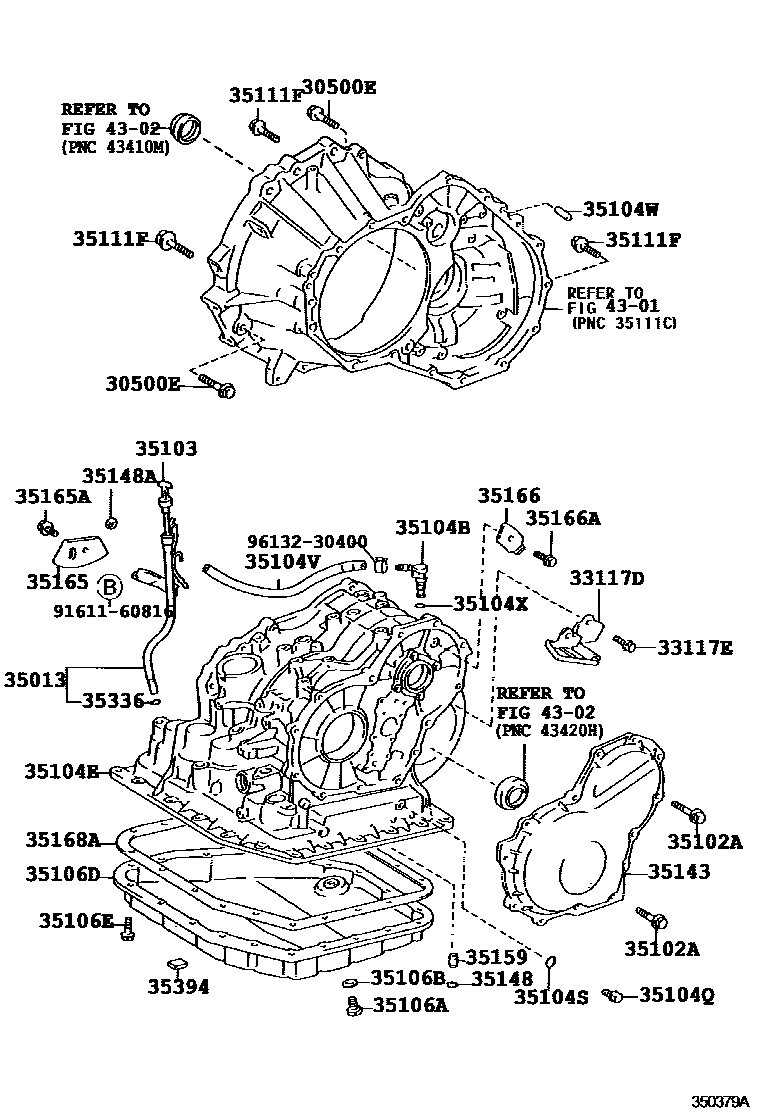

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A246E 0002 1A241H

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE11#199701

main90119-12168iAE11#199701

main91612-41025iAE115199707

main91619-61245×2iAE11#199701

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE11#199701

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040×2iAE11#199701

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12411iAE115199707

main35013-13020iAE111199701

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20050iAE115199707

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198×2iAE111199701

main90105-08065×10iAE115199707

main90105-08068×3iAE115199707

main91511-80625×11iAE111199701

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-12290iAE115199707

main35103-12300iAE111199701

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03101iAE115199707

main90930-03132iAE111199701

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12230iAE111199701

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE11#199701

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAE11#199701

35104VHOSE (FOR BREATHER PLUG)

main90447-11016iAE111199701

main90447-11037iAE115199707

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10021×2iAE111199701

main90250-11001×2iAE115199707

35104XRING, O (FOR BREATHER PLUG)

main90301-06010iAE111199701

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE115199707

main90341-10011iAE111199701

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iAE11#199701

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-12070iAE115200001

main35106-12110iAE115199707-200001

main35106-12120iAE111199701

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×18iAE11#199701

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08065×10iAE115199707

main90105-08066iAE115199707

main90105-08068×5iAE115199707

main90105-08071×2iAE115199707

main90105-08288×3iAE111199701

35143COVER, TRANSMISSION CASE, REAR

main35143-12030iAE111199701

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE11#199701

35148AGASKET, GOVERNOR APPLY, NO.2

main35148-12010×2iAE115199707

35159GASKET, BRAKE DRUM

main35159-20010iAE11#199701

35165PLATE, TRANSMISSION CASE, NO.1

main35165-12010iAE11#199701

35165ABOLT (FOR TRANSMISSION CASE PLATE NO.1)

main90105-06049iAE11#199701

35166PLATE, TRANSMISSION CASE, NO.3

main35166-12010iAE115199707

main35166-12020iAE111199701

35166ABOLT (FOR TRANSMISSION CASE PLATE NO.3)

main90105-06049iAE11#199701

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE115199707

main35168-12030iAE111199701

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iAE11#199701

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iAE111199701

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9161160816

main91611-60816

9613230400

main96132-30400

34 parts on this diagram · 2 diagrams in section
