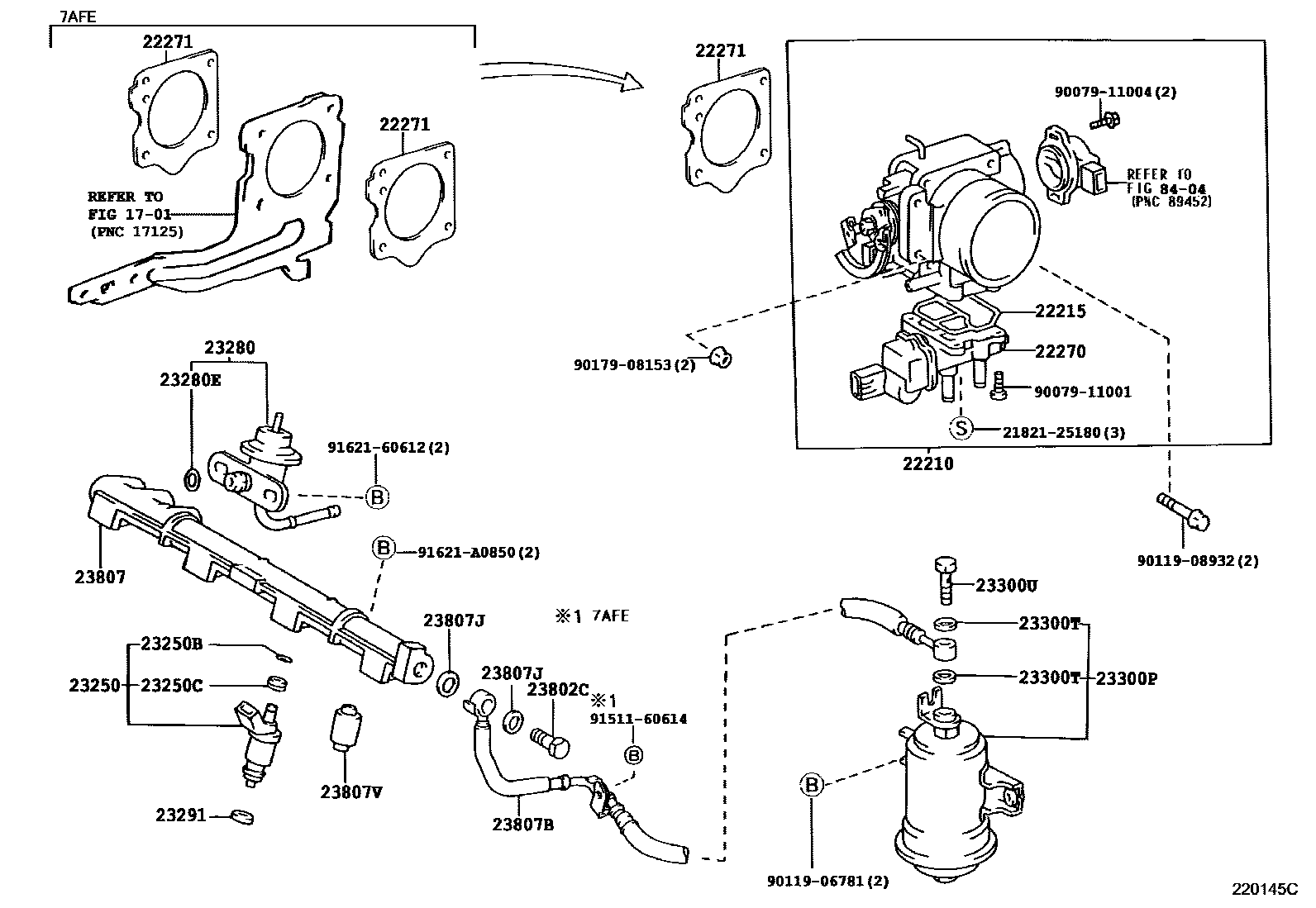

FUEL INJECTION SYSTEM

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22210-16850i7AFE..AE115199707

main22210-1A010i4AFE..AE111199701

22215GASKET, THROTTLE BODY COVER

main22215-74400i4AFE,7AFE..AE11#199701

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-16060i7AFE..AE115199707

main22270-16090i4AFE..AE111199701

22271GASKET, THROTTLE BODY

main22271-15020×2i4AFE..AE111; 7AFE..AE115199701

23250INJECTOR ASSY, FUEL

main23209-15040×4i4AFE..AE111199701

main23209-16160×4i7AFE..AE115199707

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i4AFE,7AFE..AE11#199701-199812

main90301-07024×4i4AFE,7AFE..AE11#199812

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i4AFE,7AFE..AE11#199701

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15030i4AFE,7AFE..AE11#199701

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AFE,7AFE..AE11#199701-199812

main90301-07024i4AFE,7AFE..AE11#199812

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i4AFE,7AFE..AE11#199701

23300PFILTER, FUEL(FOR EFI)

main23300-19515i4AFE,7AFE..AE11#199701

23300TGASKET(FOR FUEL FILTER)

main90430-12026×2i4AFE,7AFE..AE11#199701

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AFE,7AFE..AE11#199701

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12097i4AFE,7AFE..AE11#199701

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-15040i4AFE,7AFE..AE11#199701

23807BHOSE, FUEL DELIVERY PIPE

main23271-15240i4AFE..AE111199701

main23271-15260i7AFE..AE115199707

23807JGASKET, PIPE FUEL DELIVARY INLET

main90430-12026×2i4AFE,7AFE..AE11#199701

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08020×2i4AFE,7AFE..AE11#199701

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

9007911001

main90079-11001

9007911004

main90079-11004

9011906781

main90119-06781

9011908932

main90119-08932

9017908153

main90179-08153

9151160614

main91511-60614

9162160612

main91621-60612

91621A0850

main91621-A0850

29 parts on this diagram · 2 diagrams in section
