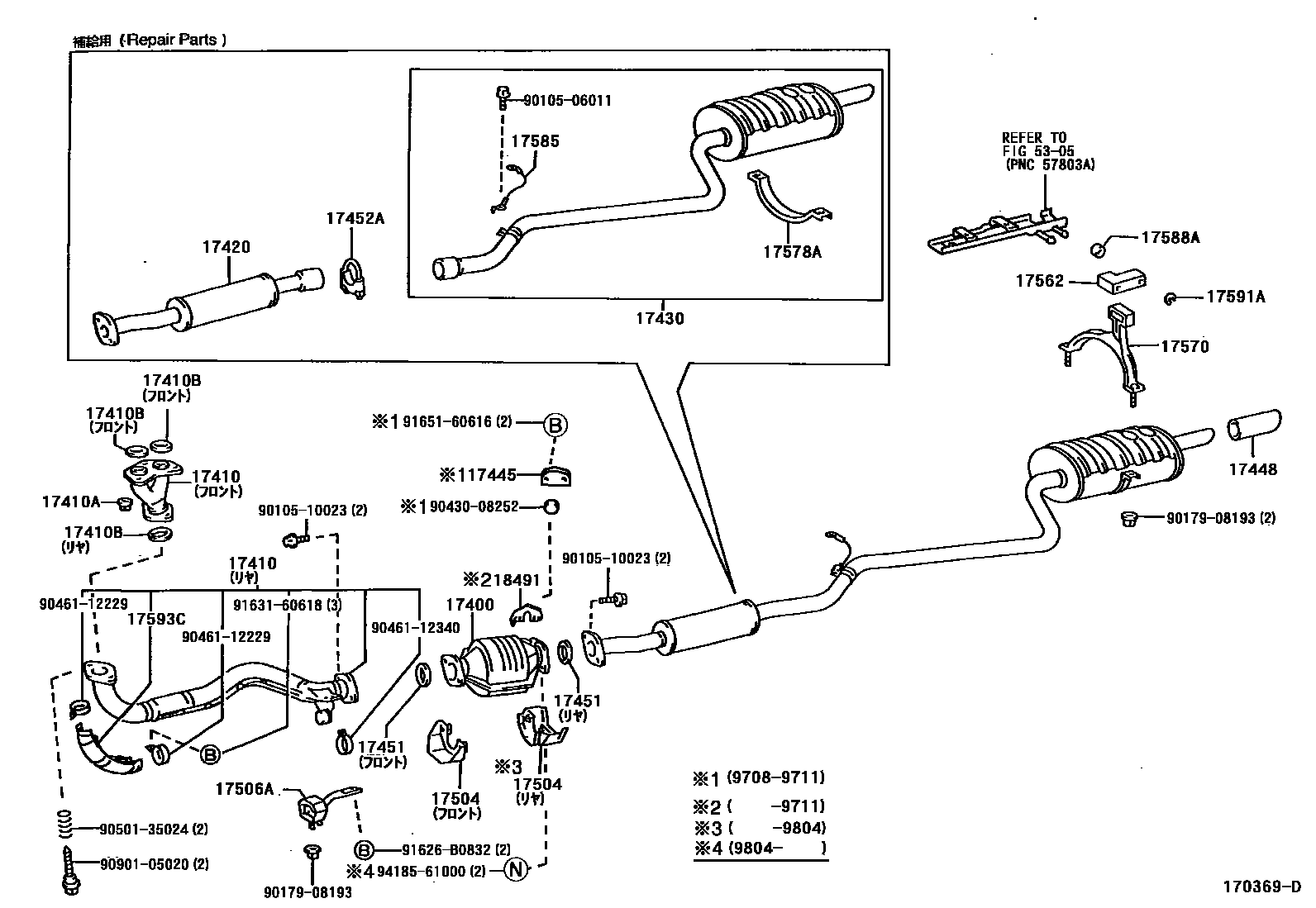

EXHAUST PIPE

0001 1 0002 1

17400CONVERTER ASSY, W/CATALYST

main18450-16780i4AFE..AE111199701-199711

main18450-1A030i4AFE..AE111199711

17410PIPE ASSY, EXHAUST, FRONT

main17410-1A220i4AFE..AE111199701

main17410-1A250i7AFE..AE115199707

main17410-1A330i4AFE..AE111199701

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i4AFE,7AFE..AE11#199701

17410BGASKET, EXHAUST PIPE

main17451-16030i4AFE..AE111199701

main90917-06061×2i7AFE..AE115199707

main90917-06064×2i4AFE..AE111199701

17420PIPE ASSY, EXHAUST, CENTER

main17420-16640i4AFE..AE111199701-199804

main17420-16641i4AFE..AE111199804

17430PIPE ASSY, EXHAUST, TAIL

main17430-1A840i4AFE..AE111199701-199811

main17430-1A841i4AFE..AE111199811-199904

main17430-1D080i7AFE..AE115199707-199811

main17430-1D081i7AFE..AE115199811-199904

main17430-1D270i7AFE..AE115199904

main17430-1D290i4AFE..AE111199904

17445COLLAR, EXHAUST PIPE

main17445-50010i7AFE..AE115199707-199708

17448BAFFLE, TAILPIPE

main17448-16060i4AFE,7AFE..AE11#199701-199904

17451GASKET, EXHAUST PIPE

main90917-06039×2i7AFE..AE115199707

main90917-06043i4AFE..AE111199701

main90917-06057i4AFE..AE111199701

17452ACLAMP, EXHAUST PIPE

main17452-16120i4AFE..AE111199701

17504BRACKET SUB-ASSY, CATALYTIC CONVERTER

main17504-16030i4AFE..AE111199701-199904

main17504-16040i4AFE..AE111199701-199804

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-11100i4AFE..AE111199705

main17506-15080i4AFE..AE111199701-199705

main17506-16100i7AFE..AE115199707

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-16240i4AFE,7AFE..AE11#199701

17570BRACKET ASSY, EXHAUST PIPE SUPPORT

main17570-16040i4AFE,7AFE..AE11#199701

17578ACLAMP, MUFFLER

main17578-16030i4AFE,7AFE..AE11#199701-199811

main17578-16050i4AFE,7AFE..AE11#199811

17585HANGER, EXHAUST PIPE

main17585-16060i4AFE..AE111199701

main17585-16100i7AFE..AE115199707

17588ASPACER, EXHAUST PIPE HANGER

main17588-16020i4AFE,7AFE..AE11#199701

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-16020×2i4AFE,7AFE..AE11#199701

17593CPROTECTOR, EXHAUST PIPE, LOWER NO.1

main17593-16360i4AFE..AE111199701

18491FLANGE, THERMOSENSOR INLET

main18491-16010i4AFE..AE111199701-199711

main18491-16020i7AFE..AE115199707-199711

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9010506011

main90105-06011

9010510023

main90105-10023

9017908193

main90179-08193

9043008252

main90430-08252

9046112229

main90461-12229

9046112340

main90461-12340

9050135024

main90501-35024

9090105020

main90901-05020

91626B0832

main91626-B0832

9163160618

main91631-60618

9165160616

main91651-60616

9418561000

main94185-61000

33 parts on this diagram · 2 diagrams in section
