ENGINE OIL PUMP

11444FPLUG, HOLE(FOR OIL PUMP)

main11444-16010i7AFE..AE115199910

15100PUMP ASSY, OIL

main15100-15060i4AFE..AE111199701

main15100-16040i7AFE..AE115199707-199910

main15100-16090i7AFE..AE115199910

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i4AFE,7AFE..AE11#199701

15100BRING, O(FOR OIL PUMP)

main96721-19010i4AFE,7AFE..AE11#199701

15100CSEAL(FOR OIL PUMP)

main90311-32002i4AFE,7AFE..AE11#199912-200003

main90311-32018i4AFE..AE111199701-199702

main90311-32020i4AFE,7AFE..AE11#199702-199912

15101BODY SUB-ASSY, OIL PUMP

main15011-15060i4AFE..AE111199701

main15011-16040i7AFE..AE115199707-199910

main15011-16090i7AFE..AE115199910

main15101-15070i4AFE..AE111199701

main15101-16050i7AFE..AE115199707-199910

15103GEAR SET, OIL PUMP

main15103-15020i4AFE..AE111199701

main15103-16040i7AFE..AE115199707

15104STRAINER SUB-ASSY, OIL

main15104-15090i4AFE..AE111199701

main15104-16060i7AFE..AE115199707

15115COVER, OIL PUMP

main15115-15020i4AFE..AE111; 7AFE..AE115199910

main15115-16060i4AFE..AE111199910

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE..AE111199701

main15121-16050i7AFE..AE115199707-199910

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE..AE111199701

main15122-16050i7AFE..AE115199707-199910

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AFE..AE111199910

main15131-24010i4AFE..AE111; 7AFE..AE115199910

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE,7AFE..AE11#199701-199910

main15132-40010i4AFE..AE111; 7AFE..AE115199910

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AFE,7AFE..AE11#199701-199910

main15135-15030i4AFE..AE111199910

15149GASKET, OIL STRAINER FLANGE

main15149-16010i4AFE,7AFE..AE11#199701

15193GASKET, OIL PUMP

main15197-15030i4AFE..AE111199701-199908

main15197-16010i7AFE..AE115199707

main15197-16030i4AFE..AE111199908

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

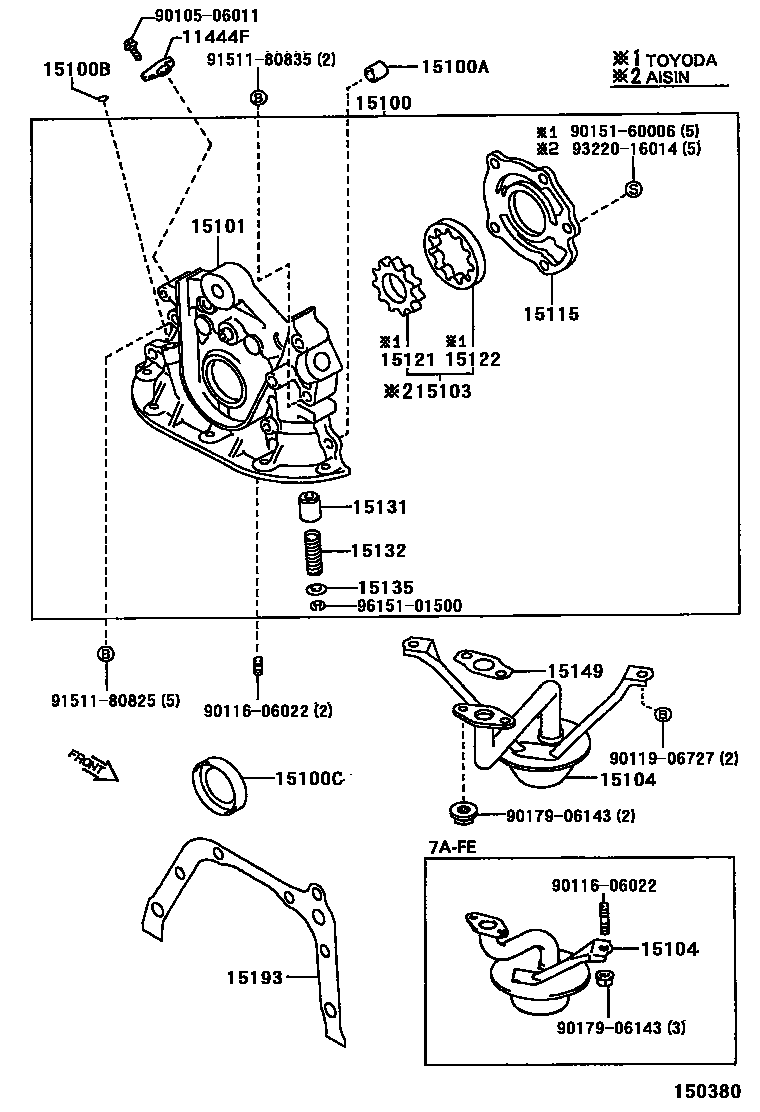

25 parts on this diagram · 1 diagram in section
