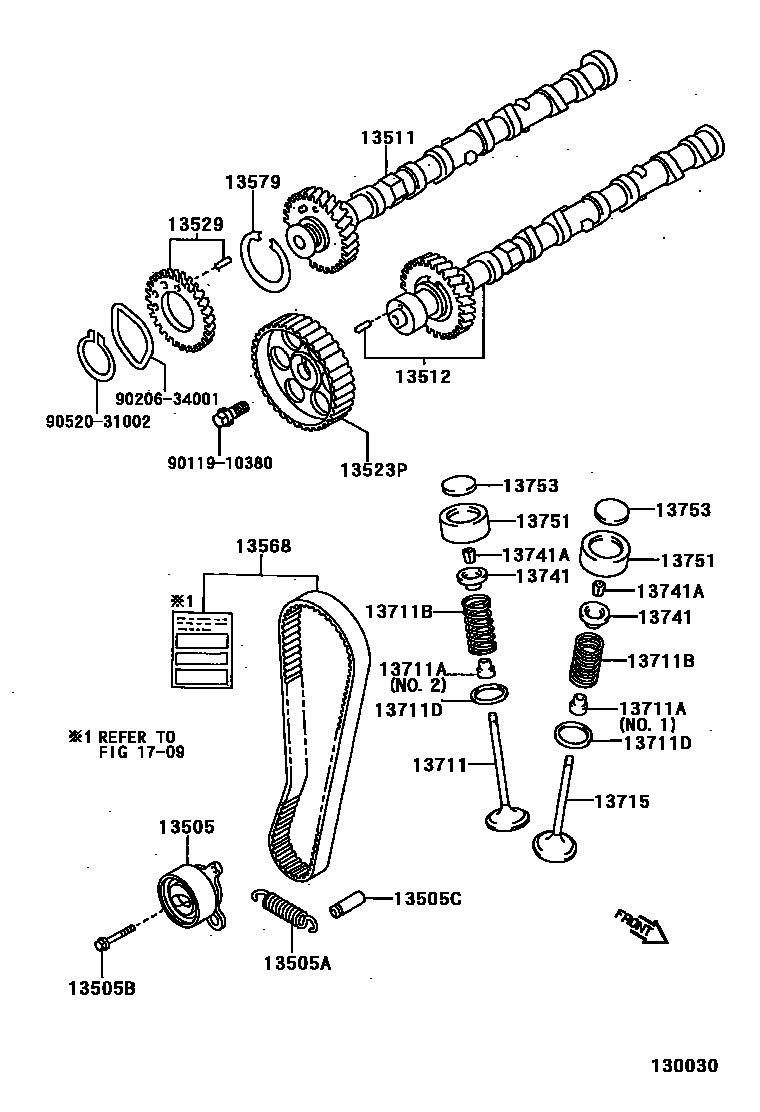

CAMSHAFT & VALVE

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-15050i4AFE,7AFE..AE11#199701

13505ASPRING, TENSION(FOR IDLER)

main90506-13004i4AFE..AE111199701

main90506-16065i7AFE..AE115199707

13505BBOLT, FLANGE (FOR IDLER)

main90105-10334i4AFE,7AFE..AE11#199701

13505CPIN(FOR IDLER SPRING TENSION)

main90249-06006i4AFE,7AFE..AE11#199701

13511CAMSHAFT

main13501-02040i4AFE..AE111199904

main13501-15050i7AFE..AE115199707

main13501-16060i4AFE..AE111199904

13512CAMSHAFT, NO.2

main13502-02050i4AFE..AE111199811

main13502-15030i4AFE..AE111199701-199811

main13502-15040i7AFE..AE115199707

13523PPULLEY, CAMSHAFT TIMING

main13523-15030i4AFE..AE111199701

main13523-16070i7AFE..AE115199707

13529GEAR, CAMSHAFT SUB

main13529-15900i4AFE,7AFE..AE11#199701

13568BELT, TIMING

main13568-19046i4AFE..AE111199701

main13568-19056i7AFE..AE115199707

13579WASHER, CAMSHAFT TIMING GEAR BOLT

main13579-15010i4AFE,7AFE..AE11#199701

13711VALVE, INTAKE

main13711-15090×8i4AFE,7AFE..AE11#199701

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02088×8i4AFE,7AFE..AE11#199811

main90913-02089×8i4AFE,7AFE..AE11#199701-199811

main90913-02090×8i4AFE,7AFE..AE11#199701

13711BSPRING, COMPRESSION(FOR INNER)

main90501-29039×16i4AFE..AE111199701

main90501-32029×16i7AFE..AE115199707

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16031×16i4AFE,7AFE..AE11#199701

13715VALVE, EXHAUST

main13715-15070×8i4AFE..AE111199701

main13715-16060×8i7AFE..AE115199707

13741RETAINER, VALVE SPRING

main13741-15020×16i4AFE,7AFE..AE11#199701

13741ALOCK, VALVE SPRING RETAINER

main90913-03021×32i4AFE,7AFE..AE11#199701

13751LIFTER, VALVE

main13751-74020×16i4AFE,7AFE..AE11#199701

13753SHIM, VALVE ADJUSTING

main13753-74010×16i4AFE,7AFE..AE11#199701

main13753-74030×16i4AFE,7AFE..AE11#199701

main13753-74050×16i4AFE,7AFE..AE11#199701

main13753-74070×16i4AFE,7AFE..AE11#199701

main13753-74090×16i4AFE,7AFE..AE11#199701

main13753-74110×16i4AFE,7AFE..AE11#199701

main13753-74130×16i4AFE,7AFE..AE11#199701

main13753-74150×16i4AFE,7AFE..AE11#199701

main13753-74170×16i4AFE,7AFE..AE11#199701

main13753-74190×16i4AFE,7AFE..AE11#199701

main13753-74210×16i4AFE,7AFE..AE11#199701

main13753-74230×16i4AFE,7AFE..AE11#199701

main13753-74250×16i4AFE,7AFE..AE11#199701

main13753-74270×16i4AFE,7AFE..AE11#199701

main13753-74290×16i4AFE,7AFE..AE11#199701

main13753-74310×16i4AFE,7AFE..AE11#199701

main13753-74330×16i4AFE,7AFE..AE11#199701

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9011910380

main90119-10380

9020634001

main90206-34001

9052031002

main90520-31002

23 parts on this diagram · 1 diagram in section
