CRANKSHAFT & PISTON

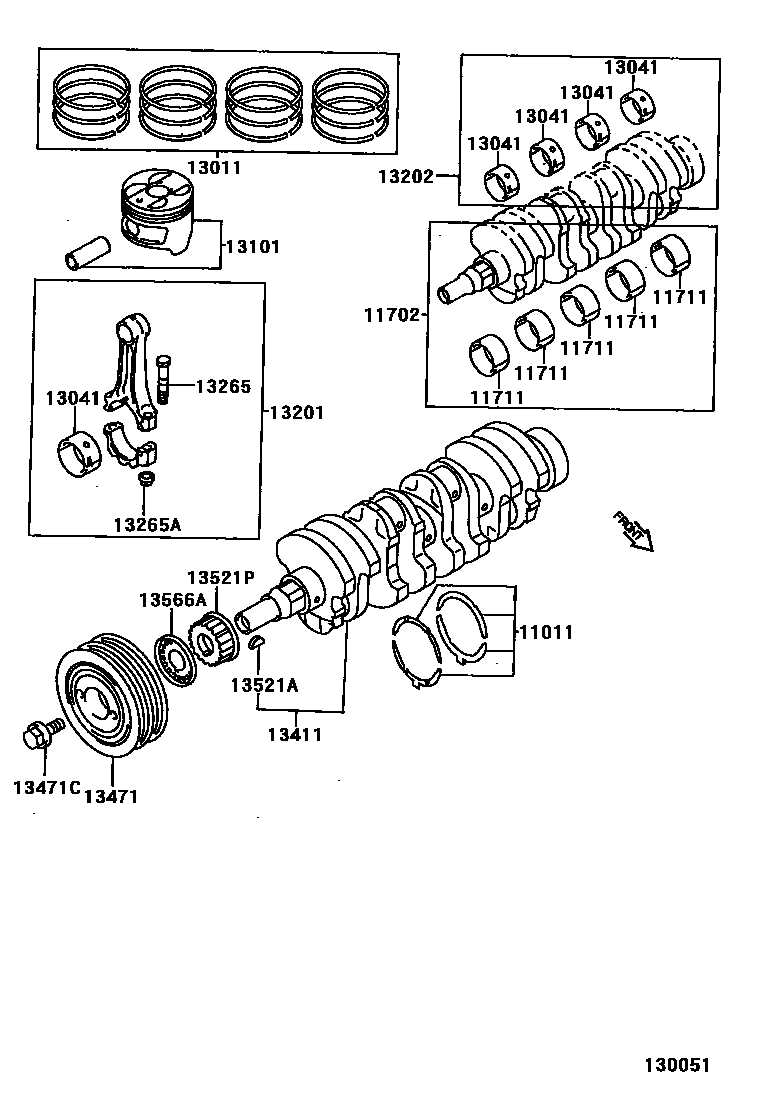

Parts diagram

11011WASHER SET, CRANKSHAFT THRUST

main11011-15010i199701-199712

main11011-15020i199712

11702BEARING SET, CRANKSHAFT

main11704-16010i199701

11711BEARING, CRANKSHAFT

main11701-16010-01×5i199701

MARK 1

main11701-16010-02×5i199701

MARK 2

main11701-16010-03×5i199701

MARK 3

main11701-16010-04×5i199701

MARK 4

main11701-16010-05×5i199701

MARK 5

13011RING SET, PISTON

main13011-16300i199707

main13011-16340i199701

main13013-16300i199707

main13013-16340i199701

13041BEARING, CONNECTING ROD

main13041-15030-01×4i199701

MARK 1

main13041-15030-02×4i199701

MARK 2

main13041-15030-03×4i199701

MARK 3

main13041-16090-01×4i199707

MARK 1

main13041-16090-02×4i199707

MARK 2

main13041-16090-03×4i199707

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-16160-01×4i199701

main13101-16160-02×4i199701

main13101-16160-03×4i199701

main13101-16190-01×4i199707

main13101-16190-02×4i199707

main13101-16190-03×4i199707

main13103-16160×4i199701

main13103-16190×4i199707

13201ROD SUB-ASSY, CONNECTING

main13201-19135×4i199701

main13201-19145×4i199707

13202BEARING SET, CONNECTING ROD

main13204-15030i199701

main13204-16090i199707

13265BOLT, CONNECTING ROD

main13265-15030×8i199701

main13265-16050×8i199707

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09008×8i199701

13411CRANKSHAFT

main13411-16900i199701

main13411-16903i199707

13471PULLEY, CRANKSHAFT

main13470-16100i199701

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12314i199701

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i199701

13521PPULLEY, CRANKSHAFT TIMING

main13521-15020i199701

13566AGUIDE, TIMING BELT

main13566-15020i199701
