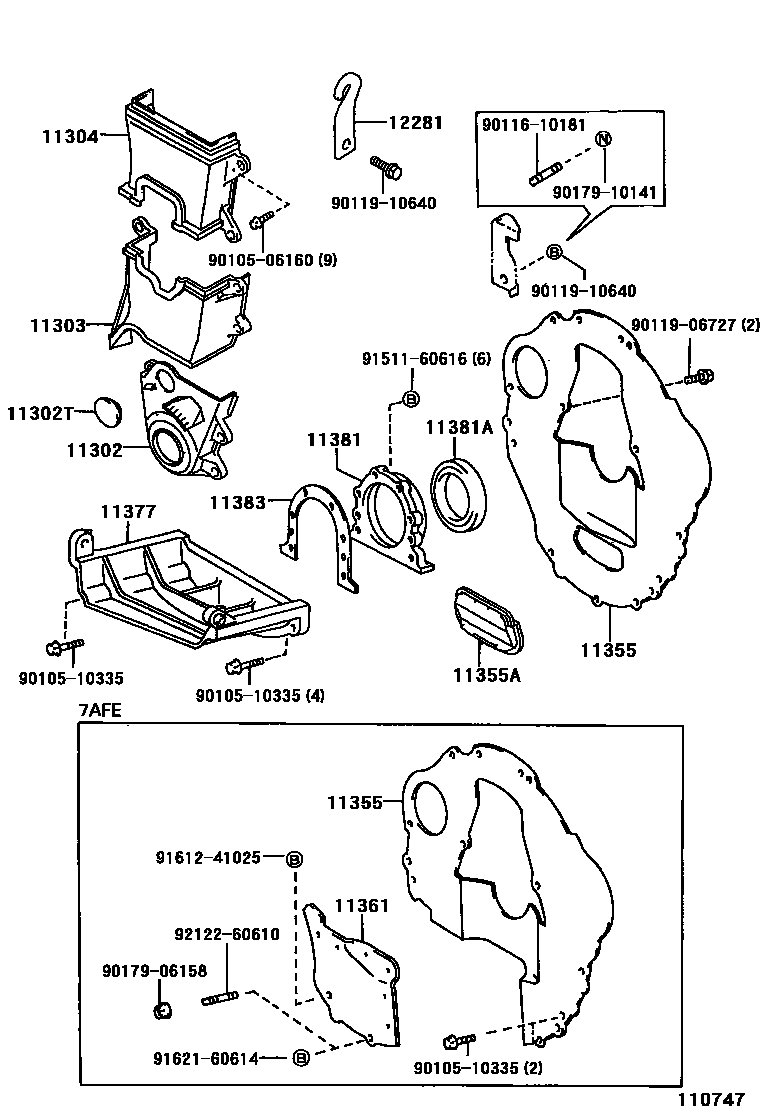

TIMING GEAR COVER & REAR END PLATE

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-15050i4AFE..AE111199701-199910

main11302-16040i7AFE..AE115199910

11302TPLUG, HOLE

main90950-01783i4AFE,7AFE..AE11#199701

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15050i4AFE..AE111199701

main11303-16050i7AFE..AE115199707-199910

main11303-16070i7AFE..AE115199910

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-15030i4AFE..AE111199701

main11304-16060i7AFE..AE115199707

11355PLATE, REAR END

main11355-15080i4AFE..AE111199701

main11355-16060i7AFE..AE115199707

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE..AE111199701

11361COVER, FLYWHEEL HOUSING UNDER

main11361-16050i7AFE..AE115199707

11377STIFFENER, REAR END PLATE

main11377-15012i4AFE..AE111199701

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AFE,7AFE..AE11#199701

11381ASEAL, ENGINE REAR OIL

main90311-70007i4AFE,7AFE..AE11#199701

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-16010i4AFE,7AFE..AE11#199701

12281HANGER, ENGINE, NO.1

main12281-15050i4AFE,7AFE..AE11#199701

9010506160

main90105-06160

9010510335

main90105-10335

9011610181

main90116-10181

9011906727

main90119-06727

9011910640

main90119-10640

9017906158

main90179-06158

9017910141

main90179-10141

9151160616

main91511-60616

9161241025

main91612-41025

9162160614

main91621-60614

9212260610

main92122-60610

23 parts on this diagram · 1 diagram in section
