STANDARD TOOL

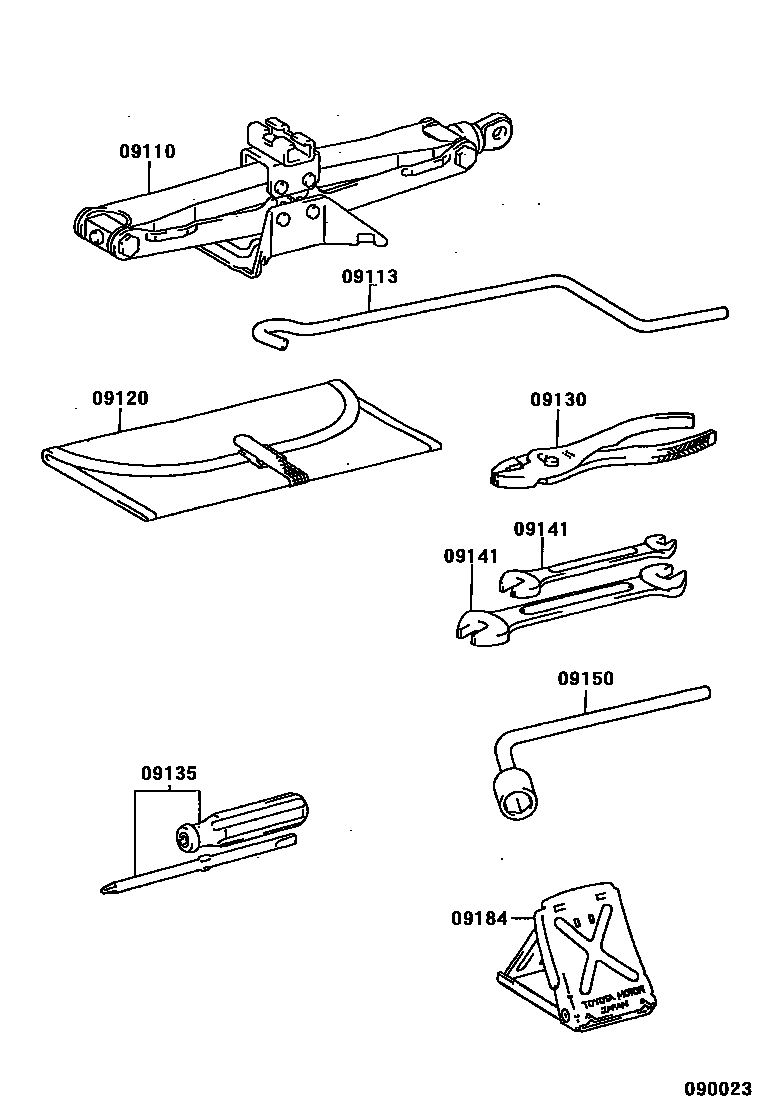

Parts diagram

09110JACK ASSY

main09111-20110i199701

09113HANDLE, JACK

main09113-13040i199701

09120BAG, TOOL

main09120-16030i199701

09130PLIERS

main99913-11500i199701

09135DRIVER, SCREW

main99915-10700i199701

09141SPANNER

main99914-10810i199701

main99914-11214i199701

09150WRENCH, HUB NUT BOX

main09150-40010i199701

09184STOPPER, WHEEL

main09184-00010i199701

8 parts on this diagram · 1 diagram in section
