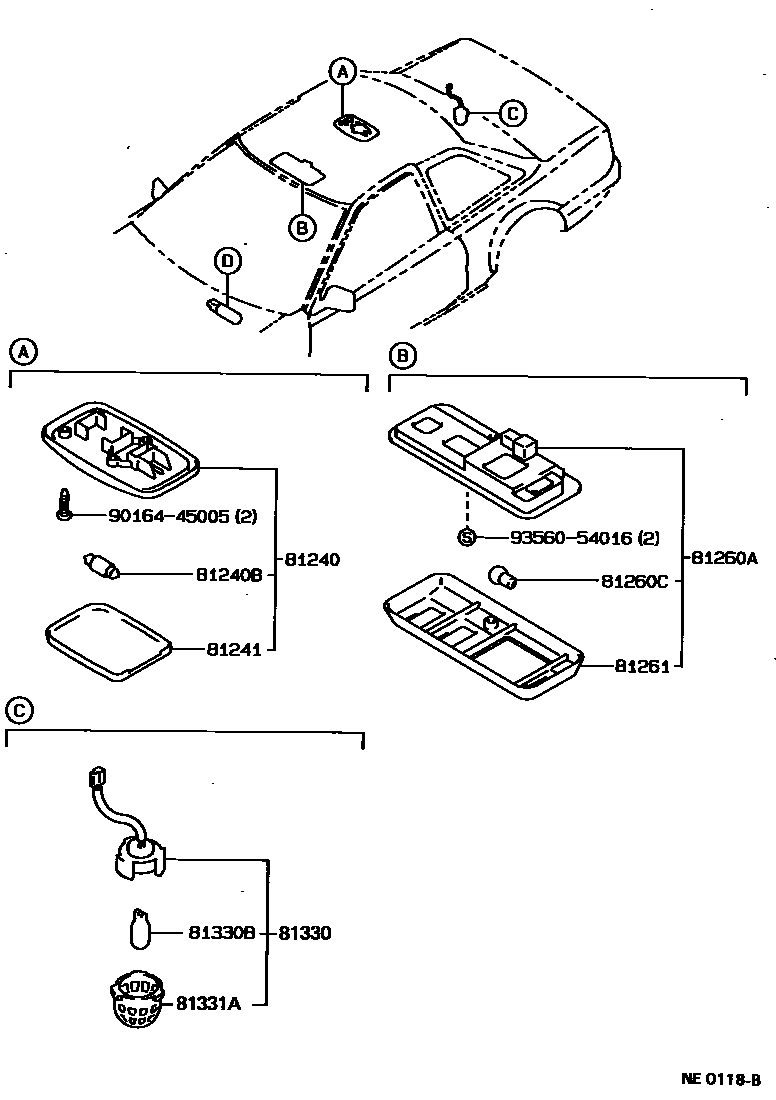

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-12020-03iAE9#198905-199106

LIGHT GRAY,TRIM1#

main81240-12020-04iAE9#..G,GT,GTAPX,GTZ,XS198905-199106

LIGHT BLUE,TRIM8#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iAE9#198705-199106

81241LENS, ROOM LAMP, NO.1

main81241-12020iAE9#198705-199106

81260ALAMP ASSY, MAP

main81260-20090-03iAE9#..G,GT,GTAPX,GTV,GTZ,XI,XS198705-199106

SHADOW GRAY,TRIM1#

main81260-20090-04iAE9#..G,GT,GTAPX,GTV,GTZ,XI,XS198705-199106

DEEP BLUE,TRIM8#

81260CBULB(FOR MAP LAMP)

main90981-12014iAE9#..G,GT,GTAPX,GTV,GTZ,XI,XS198705-199106

81261LENS AND COVER, MAP LAMP

main81261-20090-03iAE9#..G,GT,GTAPX,GTV,GTZ,XI198705-198905

SHADOW GRAY,TRIM1#

main81261-20090-04iAE9#..G,GT,GTAPX,GTV,GTZ,XI198705-198905

DEEP BLUE,TRIM8#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22031iAE9#..G,GTAPX,GTV,GTZ,XI,XS198705-199106

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iAE9#..G,GTAPX,GTV,GTZ,XI,XS198705-199106

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iAE9#..G,GTAPX,GTV,GTZ,XI,XS198705-199106

9016445005

main90164-45005

9356054016

main93560-54016

11 parts on this diagram · 2 diagrams in section
