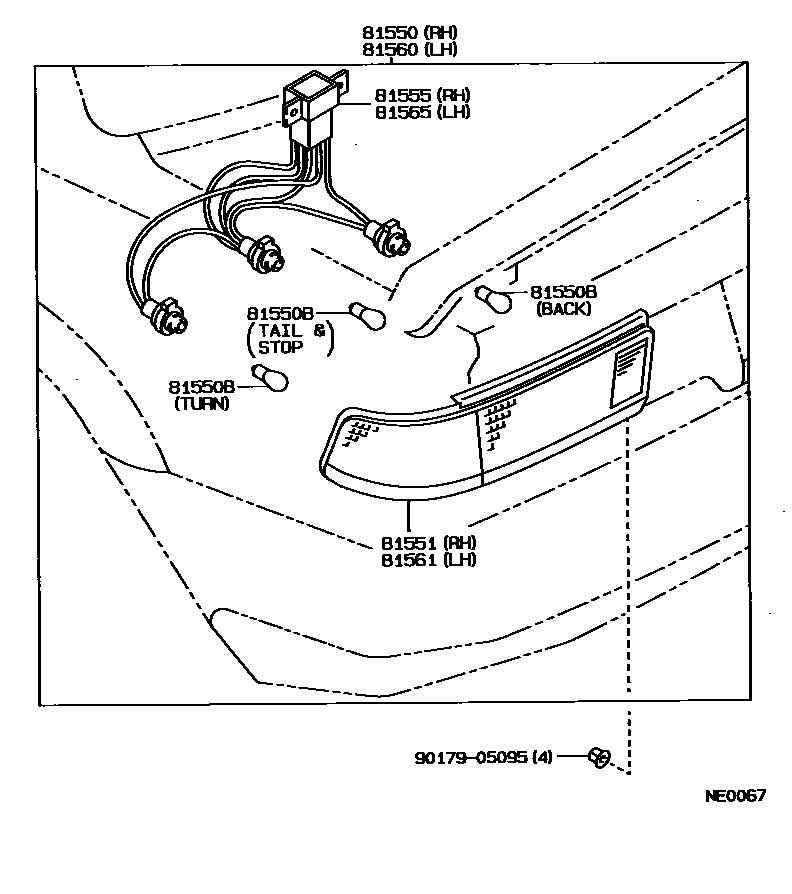

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-1A510iAE9#198705-198905

main81550-1A511iAE9#198905-199106

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iAE9#198905-199106

main99132-21210×2iAE9#198705-198905

81551LENS, REAR COMBINATION LAMP, RH

main81551-1A510iAE9#198705-198905

main81551-1A511iAE9#198905-199106

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1A510iAE9#198705-198905

main81555-1A511iAE9#198905-199106

81560LAMP ASSY, REAR COMBINATION, LH

main81560-1A510iAE9#198705-198905

main81560-1A511iAE9#198905-199106

81561LENS, REAR COMBINATION LAMP, LH

main81561-1A510iAE9#198705-198905

main81561-1A511iAE9#198905-199106

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-1A510iAE9#198705-198905

main81565-1A511iAE9#198905-199106

9017905095

main90179-05095

8 parts on this diagram · 2 diagrams in section
