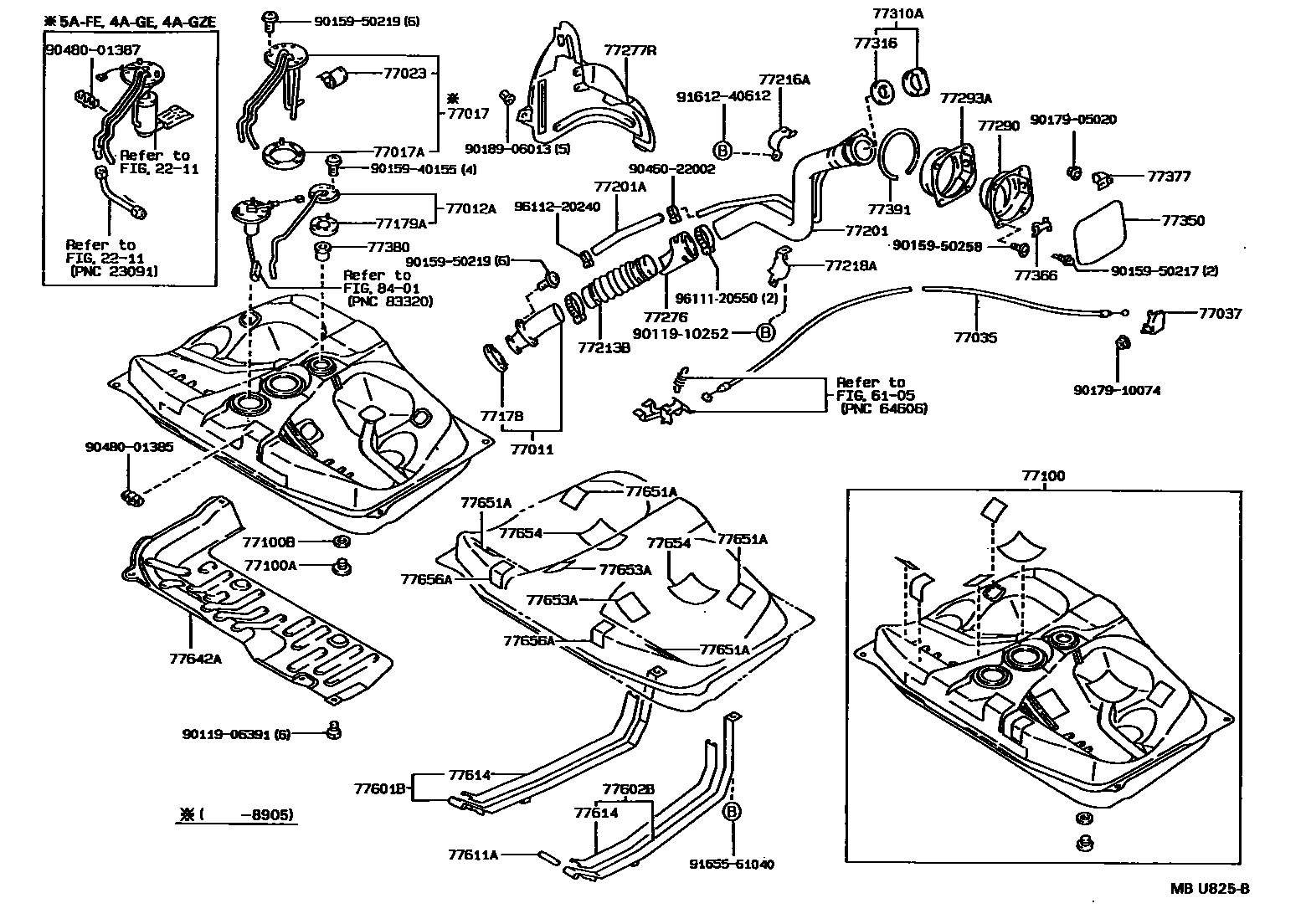

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12040iAE9#..CBR,SPC; AE9#..EFI; AE9#..GTAPX,XI; AE92..GT,GTV198708-198905

main77011-12060iAE9#..CBR,SPC; AE9#..EFI; AE9#..GTAPX,XI; AE92..GT,GTV198705-198708

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12020iAE9#198705-198708

main77012-12040iAE9#198708-199106

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-12300iAE91..CBR198705-198708

main77017-12370iAE91..CBR198708-198905

77017AGASKET, FUEL TANK VENT

main77169-16020iAE91..CBR198705-198905

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iAE91..CBR198705-198905

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-12160iAE9#198705-199106

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-12050iAE9#198705-199106

77100TANK ASSY, FUEL

main77001-19515iAE91..CBR198705-198905

main77001-19525iAE9#..EFI,EFIS,SPC198712-199106

main77001-19535iAE9#..EFI,SPC198705-198712

77100APLUG(FOR FUEL TANK)

main90341-20004iAE9#199001-199008

77100BGASKET(FOR FUEL TANK)

main90430-20007iAE9#198705-198905

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-12010×2iAE9#..EFI198705-198805

main77178-20010iAE9#..CBR,SPC; AE9#..EFI; AE9#..GTAPX,XI; AE92..GT,GTV198805-198905

COLD SPEC; COLD SPEC OR W(DIGITAL SPEED METER)

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-16010iAE9#198705-199106

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-12330iAE9#198705-199106

main77201-12350iAE9#198912-199001

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main90445-22011iAE9#198705-199106

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-12140iAE9#198705-199106

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-12040iAE9#198705-199106

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12010iAE9#198705-199106

main77218-12020iAE9#199001-199106

77276PROTECTOR, FUEL HOSE

main77276-12040iAE9#198705-199106

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12100iAE9#198705-199106

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-12060iAE9#198705-199106

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-12030iAE9#198705-199106

77310ACAP ASSY, FUEL TANK

main77310-12100iAE9#198705-199106

77316GASKET, FUEL TANK CAP

main77316-12050iAE9#198705-199106

77350LID ASSY, FUEL FILLER OPENING

main77350-12210iAE9#198705-199106

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12030iAE9#198705-199106

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12040iAE9#198705-199106

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iAE9#198705-199106

77391RING, FUEL INLET BOX

main77391-14020iAE9#198705-199106

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-12120iAE9#198705-199106

main77601-12140iAE9#198705-199106

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-12070iAE9#198705-199106

main77602-12090iAE9#198705-199106

COLD SPEC

77611APIN (FOR FUEL TANK BAND)

main90250-08019×2iAE9#198705-199106

77614SEAT, FUEL TANK BAND

main77681-12010×2iAE9#198705-199106

77642APROTECTOR, FUEL TANK, NO.2

main77606-12120iAE9#198708-198912

main77642-12020iAE9#198912-199106

77651ACUSHION, FUEL TANK, NO.1

main77651-20040×4iAE9#198705-198708

main77651-20050×4iAE9#198708-199106

77653ACUSHION, FUEL TANK, NO.3

main77653-12060×2iAE9#198705-198710

main77653-12080×2iAE9#198710-199106

77654CUSHION, FUEL TANK, NO.2

main77652-12060×2iAE9#198705-198710

main77652-12070×2iAE9#198710-199106

77656ACUSHION, FUEL TANK, NO.4

main77654-12040×2iAE9#198705-198710

main77654-12050×2iAE9#198710-199106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906391

main90119-06391

9011910252

main90119-10252

9015940155

main90159-40155

9015950217

main90159-50217

9015950219

main90159-50219

9015950258

main90159-50258

9017905020

main90179-05020

9017910074

main90179-10074

9018906013

main90189-06013

9046022002

main90460-22002

9048001385

main90480-01385

9048001387

main90480-01387

9161240612

main91612-40612

9165561040

main91655-61040

9611120550

main96111-20550

9611220240

main96112-20240

56 parts on this diagram · 3 diagrams in section
