FRONT SEAT & SEAT TRACK

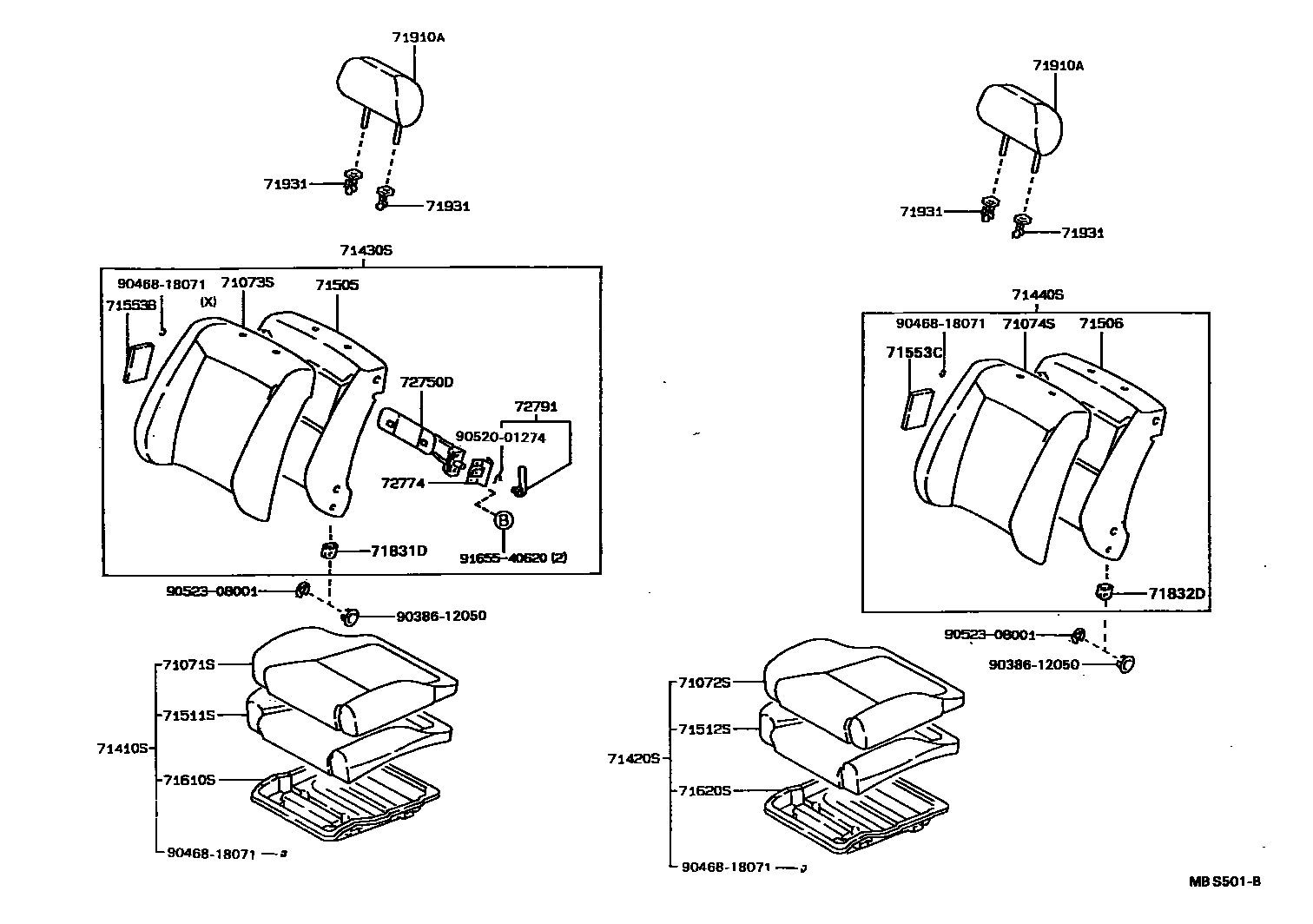

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1H470-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H470-04i198705-198905
DARK BLUE,TRIM8#
main71071-1H480-03i198705-198905
main71071-1H490-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H490-04i198705-198905
LIGHT BLUE,TRIM8#
main71071-1H500-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H500-04i198705-198905
DARK BLUE,TRIM8#
main71071-1H510-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H510-04i198705-198905
DARK BLUE,TRIM8#
main71071-1H560-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H560-04i198705-198905
DARK BLUE,TRIM8#
main71071-1K130-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K140-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K140-04i198905-199106
DARK BLUE,TRIM8#
main71071-1K150-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K150-04i198905-199106
DARK BLUE,TRIM8#
main71071-1K160-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K160-04i198905-199106
DARK BLUE,TRIM8#
main71071-1K270-03i198901-198905
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1H470-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H470-04i198705-198905
DARK BLUE,TRIM8#
main71071-1H480-03i198705-198905
main71071-1H490-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H490-04i198705-198905
LIGHT BLUE,TRIM8#
main71071-1H500-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H500-04i198705-198905
DARK BLUE,TRIM8#
main71071-1H510-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H510-04i198705-198905
DARK BLUE,TRIM8#
main71071-1H560-03i198705-198905
SHADOW GRAY,TRIM1#
main71071-1H560-04i198705-198905
DARK BLUE,TRIM8#
main71071-1K130-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K140-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K140-04i198905-199106
DARK BLUE,TRIM8#
main71071-1K150-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K150-04i198905-199106
DARK BLUE,TRIM8#
main71071-1K160-03i198905-199106
SHADOW GRAY,TRIM1#
main71071-1K160-04i198905-199106
DARK BLUE,TRIM8#
main71071-1K270-03i198901-198905
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1H380-03i198705-198905
SHADOW GRAY,TRIM1#
main71073-1H380-04i198705-198905
DARK BLUE,TRIM8#
main71073-1H400-03i198705-198905
SHADOW GRAY,TRIM1#
main71073-1H400-04i198705-198905
DARK BLUE,TRIM8#
main71073-1H410-03i198705-198905
main71073-1H420-03i198705-198905
SHADOW GRAY,TRIM1#
main71073-1H420-04i198705-198905
LIGHT BLUE,TRIM8#
main71073-1H430-03i198705-198905
SHADOW GRAY,TRIM1#
main71073-1H430-04i198705-198905
DARK BLUE,TRIM8#
main71073-1H470-03i198705-198905
SHADOW GRAY,TRIM1#
main71073-1H470-04i198705-198905
DARK BLUE,TRIM8#
main71073-1H710-03i198905-199106
SHADOW GRAY,TRIM1#
main71073-1H720-03i198905-199106
SHADOW GRAY,TRIM1#
main71073-1H720-04i198905-199106
DARK BLUE,TRIM8#
main71073-1H730-03i198905-199106
SHADOW GRAY,TRIM1#
main71073-1H730-04i198905-199106
DARK BLUE,TRIM8#
main71073-1H740-03i198905-199106
SHADOW GRAY,TRIM1#
main71073-1H740-04i198905-199106
DARK BLUE,TRIM8#
main71073-1H800-03i198901-198905
main71073-1H890-03i199101-199104
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1H470-03i198705-198905
SHADOW GRAY,TRIM1#
main71073-1H470-04i198705-198905
DARK BLUE,TRIM8#
main71073-1H730-03i198905-199106
SHADOW GRAY,TRIM1#
main71073-1H730-04i198905-199106
DARK BLUE,TRIM8#
main71074-1E340-03i198705-198905
SHADOW GRAY,TRIM1#
main71074-1E340-04i198705-198905
DARK BLUE,TRIM8#
main71074-1E350-03i198705-198905
main71074-1E360-03i198705-198905
SHADOW GRAY,TRIM1#
main71074-1E360-04i198705-198905
LIGHT BLUE,TRIM8#
main71074-1E370-03i198705-198905
SHADOW GRAY,TRIM1#
main71074-1E370-04i198705-198905
DARK BLUE,TRIM8#
main71074-1E410-03i198705-198905
SHADOW GRAY,TRIM1#
main71074-1E410-04i198705-198905
DARK BLUE,TRIM8#
main71074-1E700-03i198905-199106
SHADOW GRAY,TRIM1#
main71074-1E710-03i198905-199106
SHADOW GRAY,TRIM1#
main71074-1E710-04i198905-199106
DARK BLUE,TRIM8#
main71074-1E720-03i198905-199106
SHADOW GRAY,TRIM1#
main71074-1E720-04i198905-199106
DARK BLUE,TRIM8#
main71074-1E780-03i198901-198905
main71074-1E870-03i199101-199104
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1H850-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1H850-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1H870-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1H870-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1H880-03i198705-198905
main71410-1H881-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1H890-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1H890-04i198705-198905
***,LIGHT BLUE,TRIM8#
main71410-1K010-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1K010-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1K011-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1K011-04i198905-199106
***,DARK BLUE,TRIM8#
main71410-1K020-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1K020-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1K021-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1K021-04i198905-199106
***,DARK BLUE,TRIM8#
main71410-1K070-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1K070-04i198705-198905
***,LIGHT BLUE,TRIM8#
main71410-1K071-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1K071-04i198905-199106
***,SHADOW GRAY,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71410-1H850-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1H850-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1H870-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1H870-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1H890-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1H890-04i198705-198905
***,LIGHT BLUE,TRIM8#
main71410-1H891-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1H891-04i198905-199106
***,DARK BLUE,TRIM8#
main71410-1K010-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1K010-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1K011-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1K011-04i198905-199106
***,DARK BLUE,TRIM8#
main71410-1K020-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71410-1K020-04i198705-198905
***,DARK BLUE,TRIM8#
main71410-1K021-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71410-1K021-04i198905-199106
***,DARK BLUE,TRIM8#
main71420-1E500-03i198705-198905
main71420-1E501-03i198905-199106
***,SHADOW GRAY,TRIM1#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1H720-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H720-04i198705-198905
***,DARK BLUE,TRIM8#
main71430-1H740-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H740-04i198705-198905
***,LIGHT BLUE,TRIM8#
main71430-1H741-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71430-1H741-04i198905-199106
***,DARK BLUE,TRIM8#
main71430-1H750-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H750-04i198705-198905
***,DARK BLUE,TRIM8#
main71430-1H760-03i198705-198905
main71430-1H770-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H770-04i198705-198905
***,LIGHT BLUE,TRIM8#
main71430-1H771-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71430-1H771-04i198905-199106
***,DARK BLUE,TRIM8#
main71430-1H780-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H780-04i198705-198905
***,DARK BLUE,TRIM8#
main71430-1H781-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71430-1H781-04i198905-199106
***,DARK BLUE,TRIM8#
main71430-1H790-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H790-04i198705-198905
***,DARK BLUE,TRIM8#
main71430-1H791-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71430-1H791-04i198905-199106
***,DARK BLUE,TRIM8#
main71440-1H661-03i198905-199106
***,SHADOW GRAY,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-1H761-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71430-1H780-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71430-1H780-04i198705-198905
***,DARK BLUE,TRIM8#
main71430-1H781-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71430-1H781-04i198905-199106
***,DARK BLUE,TRIM8#
main71440-1H650-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71440-1H650-04i198705-198905
***,DARK BLUE,TRIM8#
main71440-1H660-03i198705-198905
main71440-1H670-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71440-1H670-04i198705-198905
***,LIGHT BLUE,TRIM8#
main71440-1H671-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71440-1H671-04i198905-199106
***,DARK BLUE,TRIM8#
main71440-1H680-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71440-1H680-04i198705-198905
***,DARK BLUE,TRIM8#
main71440-1H681-03i198905-199106
***,SHADOW GRAY,TRIM1#
main71440-1H681-04i198905-199106
***,DARK BLUE,TRIM8#
main71440-1H720-03i198705-198905
***,SHADOW GRAY,TRIM1#
main71440-1H720-04i198705-198905
***,DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12090i198705-198905
main71505-12100i198705-199106
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71506-12060i198905-199106
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12630i198905-199106
main71511-12640i198705-198905
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12630i198905-199106
main71511-12640i198705-198905
71553BPAD, FRONT SEATBACK, B
main71553-12200i198705-198905
main71553-12220i198905-199106
main71553-12270×4i199004-199106
71553CPAD, FRONT SEATBACK, C
main71553-12200i198705-198905
main71553-12220i198905-199106
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12290i198705-198905
main71610-12310i198705-198905
main71610-12320i198705-198905
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71610-12310i198705-198905
main71610-12320i198705-198905
71831DCOVER, FRONT SEAT HINGE, RH
main71831-12010i198705-198905
71832DCOVER, FRONT SEAT HINGE, LH
main71831-12010i198705-198905
71910AHEADREST ASSY, FRONT SEAT
main71910-12830-03×2i198705-198905
SHADOW GRAY,TRIM1#
main71910-12830-04×2i198705-198905
DARK BLUE,TRIM8#
main71910-12840-03×2i198705-198905
SHADOW GRAY,TRIM1#
main71910-12840-04×2i198705-198905
DARK BLUE,TRIM8#
main71910-12840-13i198901-198905
main71910-12850-03×2i198705-198905
main71910-12851-03×2i198905-199106
SHADOW GRAY,TRIM1#
main71910-12860-03×2i198705-198905
SHADOW GRAY,TRIM1#
main71910-12860-04×2i198705-198905
DARK BLUE,TRIM8#
main71910-12861-03×2i198905-199106
SHADOW GRAY,TRIM1#
main71910-12861-04×2i198905-199106
DARK BLUE,TRIM8#
main71910-12870-03×2i198705-198905
SHADOW GRAY,TRIM1#
main71910-12870-04×2i198705-198905
DARK BLUE,TRIM8#
main71910-12871-01×2i198905-199106
BLACK,TRIM1#
main71910-12871-04×2i198905-199106
DARK BLUE,TRIM8#
main71910-12890-03×2i198705-198905
SHADOW GRAY,TRIM1#
main71910-12890-04×2i198705-198905
DARK BLUE,TRIM8#
71931SUPPORT, FRONT SEAT HEADREST
main71930-12050-03×2i198705-198905
main71930-12050-04×2i198905-199106
main71930-12060-03×2i198905-199106
main71930-12060-04×2i198905-199106
main71931-12010-03×2i198705-198905
main71931-12010-04×2i198905-199106
main71931-12030-03×2i198705-198905
main71931-12030-04×2i198905-199106
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-12060i198705-199106
main72750-12070i198705-199106
72774PROTECTOR, LUMBAR SUPPORT SPRING
main72774-12020i198705-199106
72791LEVER, LUMBAR SUPPORT
main72791-20030-03i198705-199106
SHADOW GRAY,TRIM1#
main72791-20030-14i198705-199106
DARK BLUE,TRIM8#
main72791-22020-23i198705-199106
GRAY,TRIM1#
main72791-22020-34i198705-198807
DARK BLUE,TRIM8#
main72791-22020-J0i198905-199106
DARK BLUE,TRIM8#
9038612050
main90386-12050
9046818071
main90468-18071
9052001274
main90520-01274
9052308001
main90523-08001
9165540620
main91655-40620

28 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
