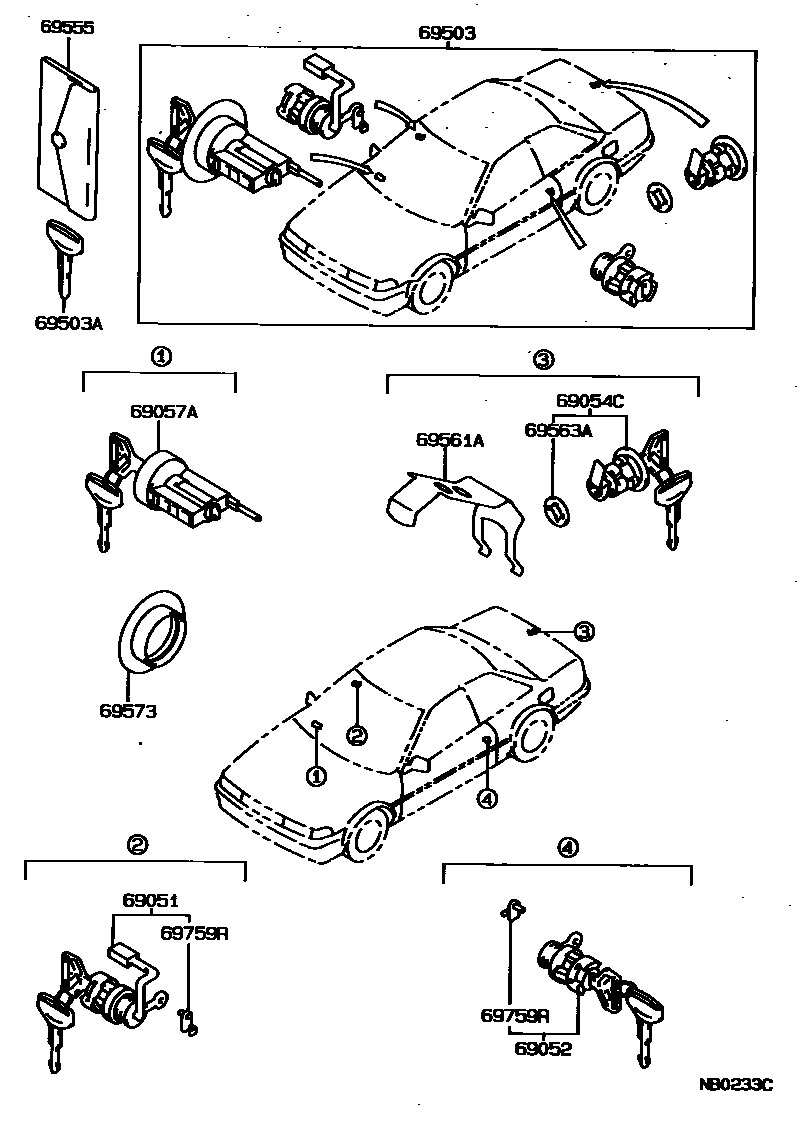

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-12230iAE9#198705-199106

sub69051-12240

main69051-12250iAE92..GTAPX198705-199106

sub69051-12260

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-12230iAE9#198705-199106

sub69052-12240

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-12510iAE9#198705-199106

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-12080iAE9#198705-199106

sub69057-12110

69503CYLINDER SET, LOCK

main69005-12890iAE9#..G,GT,GTZ,L,XS198705-199106

main69005-1A010iAE9#..G,GTAPX,GTZ,XI198705-199106

69503AKEY, BLANK

main90999-00130iAE9#198705-199106

sub90999-00153

main90999-00131iAE9#198705-198905

sub90999-00130

main90999-00132iAE9#198705-199106

sub90999-00174

main90999-00133iAE9#198705-198905

sub90999-00132

69555COVER, KEY

main69555-20010iAE9#198705-199106

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-12190iAE9#198705-199106

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32010iAE9#198705-199106

69573PAD, IGNITION SWITCH LOCK CYLINDER

main69573-12010iAE9#198705-199106

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-30040iAE9#198705-199106

main69759-30050iAE9#198705-199106

11 parts on this diagram · 1 diagram in section
