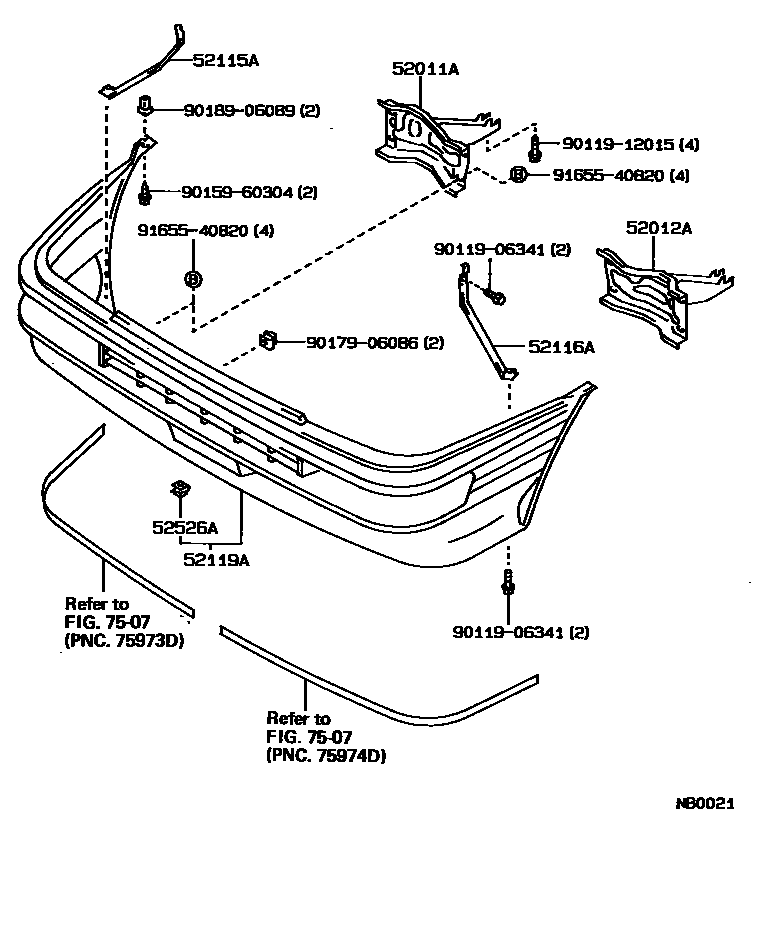

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-12410iAE9#198705-198905

main52011-12460iAE9#198905-199106

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-12420iAE9#198705-198905

main52012-12470iAE9#198905-199106

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12280iAE9#198705-198905

main52115-12300iAE9#198905-199106

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12220iAE9#198705-198905

main52116-12240iAE9#198905-199106

52119ACOVER, FRONT BUMPER

main52119-1A430iAE9#..GT,L198705-198905

main52119-1A440-02iAE9#..G,GTV,XI; AE91..L198705-198905

LISSE,SUPER RED 2,3E5; SUPER RED 2,3E5

main52119-1A440-03iAE9#..G,GTV,XI; AE91..L198705-198905

GRAY M,168; LISSE,GRAY M,168

main52119-1A440-04iAE9#..G,GTV,XI; AE91..L198705-198805

BLUE M,8D7; LISSE,BLUE M,8D7

main52119-1A440-08iAE9#..G,GTV,XI; AE91..L198705-198905

LISSE,SUPER WHITE 2,040; SUPER WHITE 2,040

main52119-1A440-14iAE9#..G,GTV,XI; AE91..L198805-198905

BLUE M,8B5; LISSE,BLUE M,8B5

main52119-1A450-02iAE9#..GTV,XI; AE91..G; AE92..GTAPX,GTZ198705-198905

main52119-1A450-03iAE9#..GTV,XI; AE91..G; AE92..GTAPX,GTZ198705-198905

main52119-1A450-05iAE9#..G,GTAPX,GTV,GTZ,XI198705-198905

BEIGE M,28E

main52119-1A450-08iAE9#..GTV,XI; AE91..G; AE92..GTAPX,GTZ198705-198905

main52119-1A450-13iAE9#..G,GTAPX,GTV,GTZ,XI198705-198905

SILVER M,23E

main52119-1A710-01iAE92198905-199106

BLACK M,205

main52119-1A710-02iAE91..EFIS; AE91..G; AE92198905-199106

main52119-1A710-04iAE91..EFIS; AE91..G; AE92198905-199106

main52119-1A710-07iAE92198905-199106

GRAYISH GREEN M,6K6

main52119-1A710-08iAE91..EFIS; AE91..G; AE92198905-199106

main52119-1A710-17iAE9#..G,GT,GTAPX,GTZ,XS198905-199106

LIGHT OLIVEISH GRAY,23M

main52119-1A730-02iAE91198905-199106

SUPER RED 2,3E5

main52119-1A730-04iAE91..G,XS198905-199106

DARK BLUE MICA M,8E9

main52119-1A730-08iAE91198905-199106

SUPER WHITE 2,040

main52119-1A790-08iAE92..GTAPX198901-198905

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52565-12040×8iAE9#198705-199106

7507BODY STRIPE

→ Go to FIG 75-07

9011906341

main90119-06341

9011912015

main90119-12015

9015960304

main90159-60304

9017906086

main90179-06086

9018906089

main90189-06089

9165540820

main91655-40820

13 parts on this diagram · 2 diagrams in section
