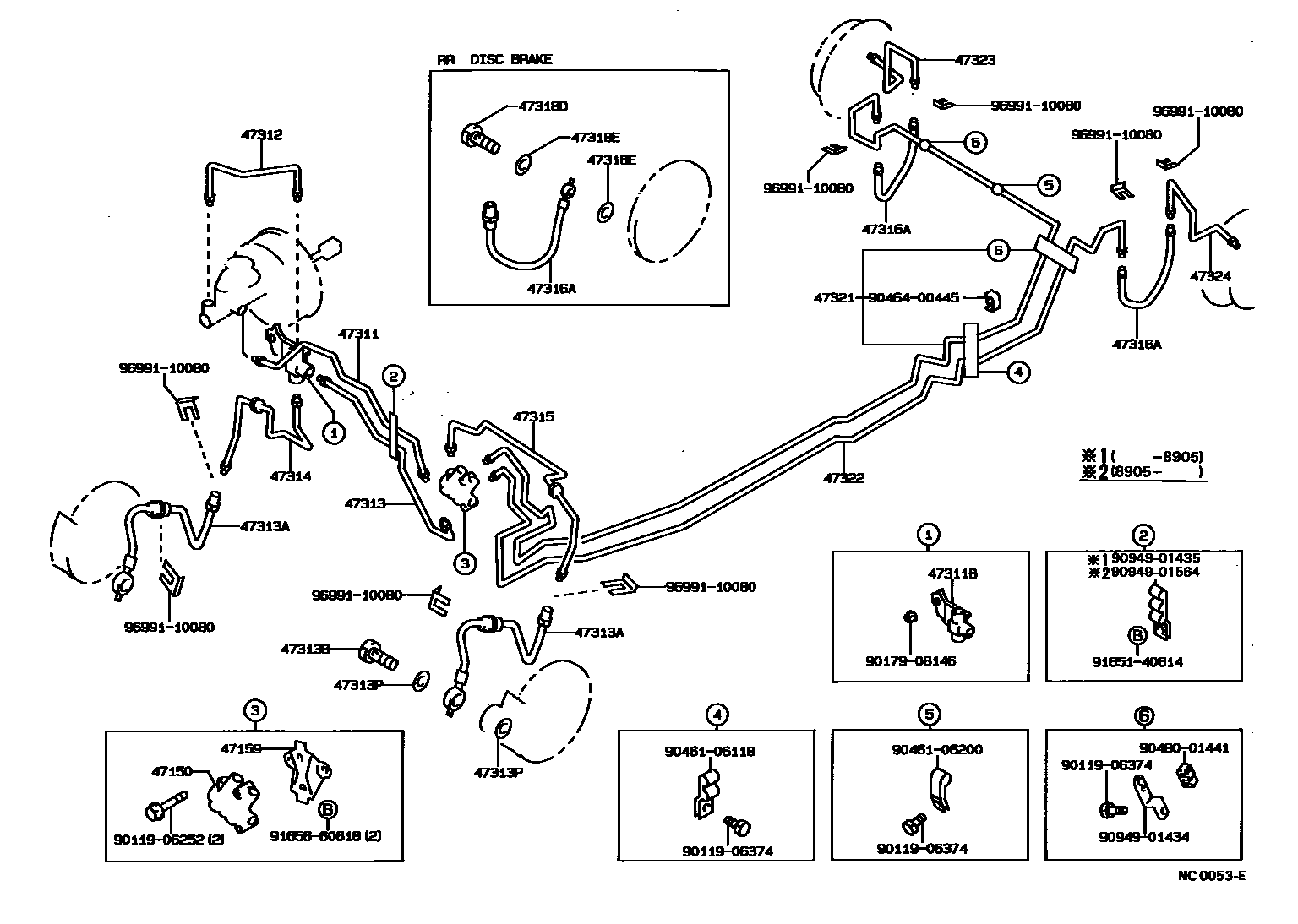

BRAKE TUBE & CLAMP

0001 1 0002 1��(ESC) 0003 1��(ESC)

47150VALVE ASSY, PROPORTIONING

main47150-12060iAE91198705-198906

main47150-12070iAE92198905-199106

main47150-12091iAE9#..GT,GTAPX,GTZ,XS198905-199106

main47150-16070iAE91198906-199106

main47150-20140iAE92..SPC198705-198905

47159BRACKET, PROPORTIONING VALVE

main47159-12050iAE9#198705-199106

47311TUBE, FRONT BRAKE, NO.1

main47311-12380iAE9#198705-198905

main47311-12410iAE9#..GT,GTAPX,GTZ,XS198905-199106

main47311-12430iAE9#198905-199106

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10116iAE9#..GT,GTAPX,GTZ,XS198905-199106

main90413-10164iAE91198705-198905

main90413-10221iAE9#..(G,GT,GTAPX,GTV,GTZ,L,XS)..(EFI,EFIS,SPC)198705-199106

47312TUBE, FRONT BRAKE, NO.2

main47312-12270iAE9#198705-199106

main47312-12280iAE91..4FC..EFI198911-199106

47313TUBE, FRONT BRAKE, NO.3

main47313-12180iAE9#198705-198905

main47313-12220iAE9#..GT,GTAPX,GTZ,XS198905-199106

main47313-12240iAE9#198905-199106

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02532×2iAE9#198705-199106

main90947-02587×2iAE9#..GT,GTAPX,GTZ,XS198905-199106

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAE9#198705-199106

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iAE9#198705-199106

47314TUBE, FRONT BRAKE, NO.4

main47314-12260iAE9#198705-199106

main47314-12300iAE9#..GT,GTAPX,GTZ,XS198905-199106

47315TUBE, FRONT BRAKE, NO.5

main47315-12400iAE9#198705-199106

main47315-12430iAE9#..GT,GTAPX,GTZ,XS198905-199106

47316TUBE, FRONT BRAKE, NO.6

main47316-12170iAE9#..GT,GTAPX,GTZ,XS198905-199106

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02533×2iAE9#..G,GT,L,XI198705-198905

main90947-02541×2iAE92..GTAPX,GTV,GTZ198705-198905

47318TUBE, FRONT BRAKE, NO.8

main47318-12160iAE9#..GT,GTAPX,GTZ,XS198905-199106

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iAE92..GTAPX,GTV,GTZ198705-198905

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iAE92..GTAPX,GTV,GTZ198705-198905

47321TUBE, REAR BRAKE, NO.1

main47321-12030iAE9#198705-199106

main47321-12080iAE9#..GT,GTAPX,GTZ,XS198905-199106

47322TUBE, REAR BRAKE, NO.2

main47322-12180iAE9#198705-199106

main47322-12230iAE9#..GT,GTAPX,GTZ,XS198905-199106

47323TUBE, REAR BRAKE, NO.3

main47323-12210iAE9#..G,GT,L,XI198705-198905

47324TUBE, REAR BRAKE, NO.4

main47324-12170iAE9#..G,GT,L,XI198705-198905

9011906252

main90119-06252

9011906374

main90119-06374

9017908146

main90179-08146

9046106118

main90461-06118

9046106200

main90461-06200

9046400445

main90464-00445

9048001441

main90480-01441

9094901434

main90949-01434

9094901435

main90949-01435

9094901564

main90949-01564

9165140614

main91651-40614

9165660618

main91656-60618

9699110080

main96991-10080

33 parts on this diagram · 3 diagrams in section
